Alpha Texas Star Target System – Centrefire (AR500 Armour)

Alpha Texas Star Target System – 8mm AR500 Armour (Handgun, Light Rifle & Shotgun Rated)

.22LR to .45 ACP | .223 / 5.56 / .300 BLK | .410 / 12 Gauge (Bird & Buck) | 🛡️ 8mm AR500 Armour Steel | Reactive Rotation | Modular Design | 🇦🇺 Australian Made

How It Works:

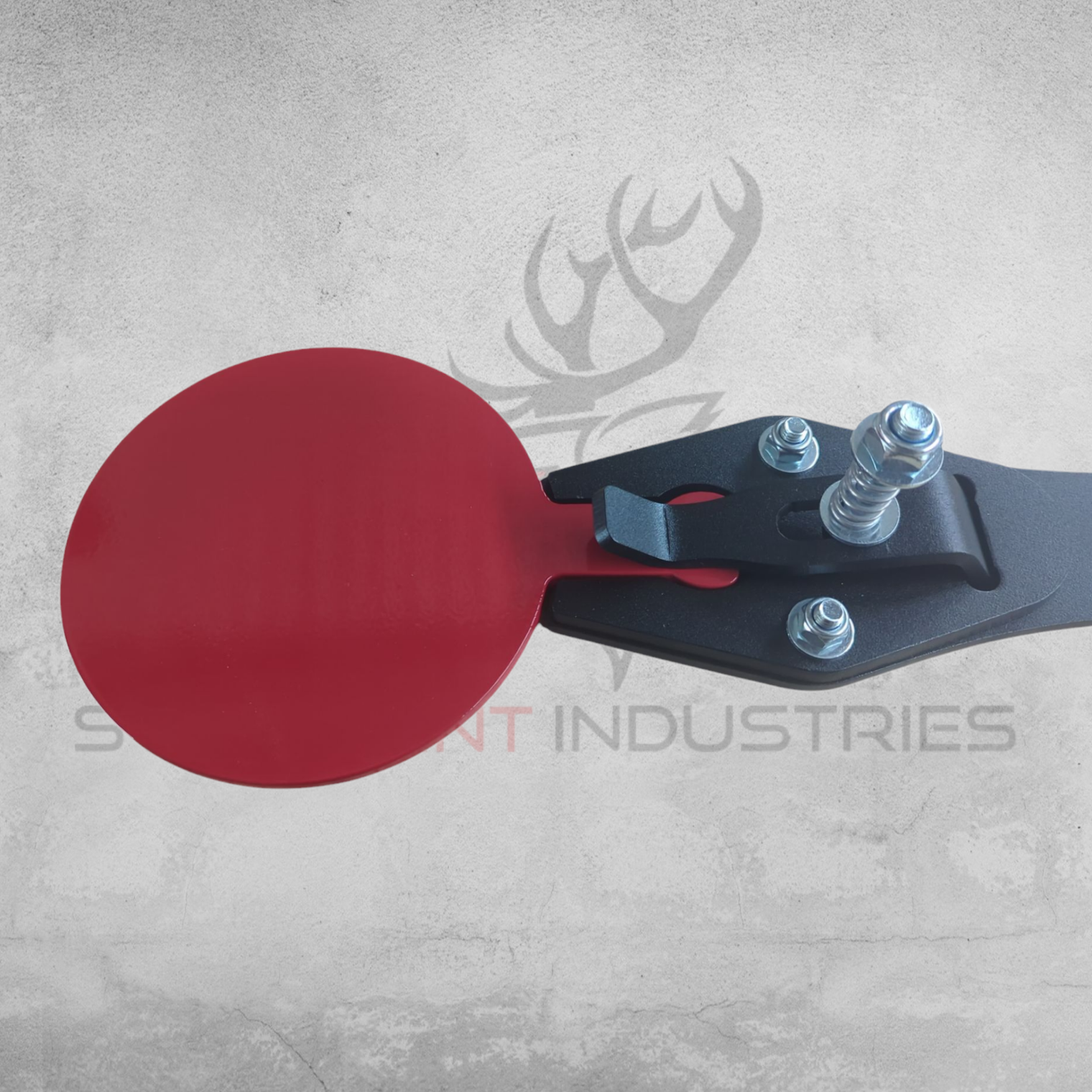

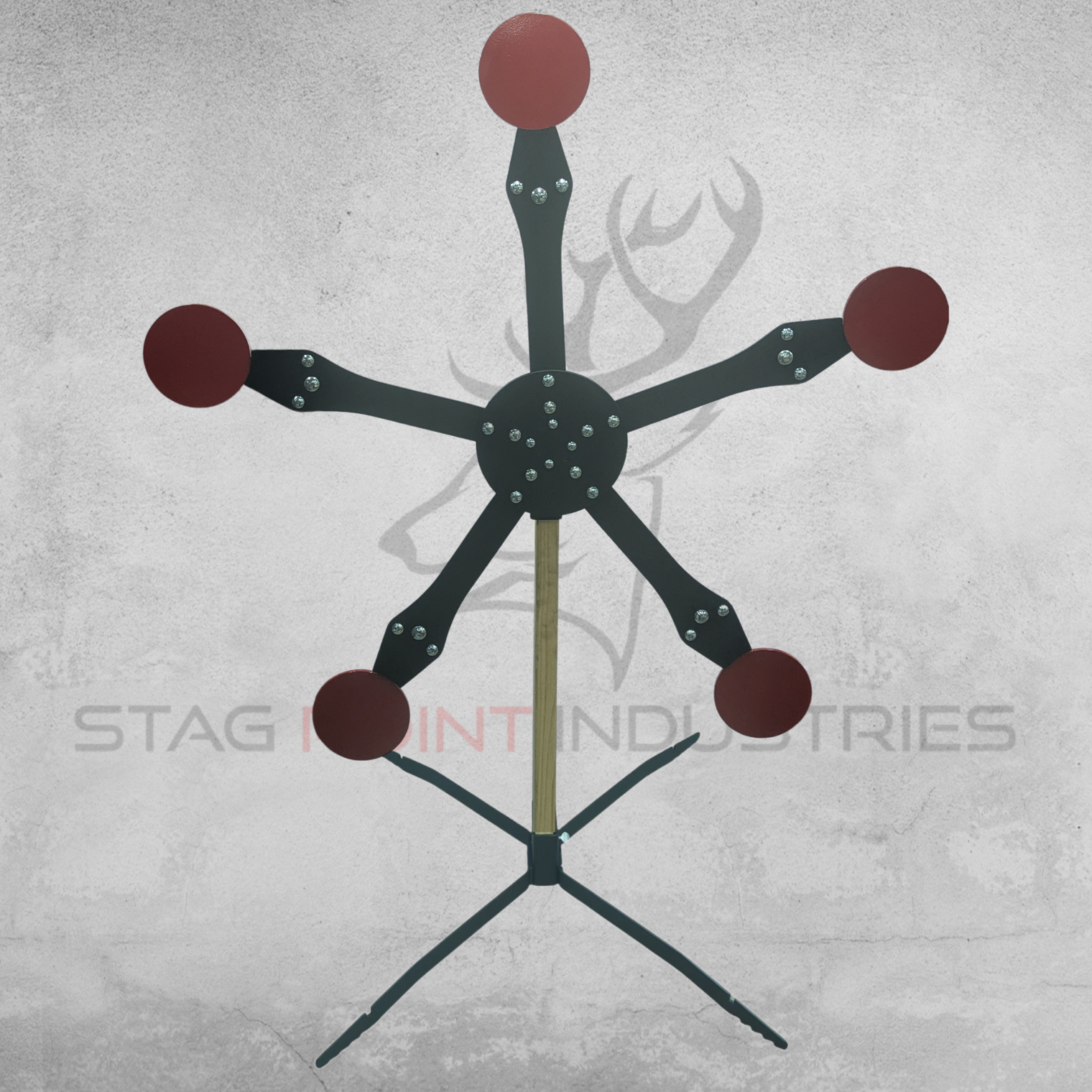

The Alpha Texas Star is a rotating reactive target system featuring five arms attached to a central bearing hub. Each arm holds a round paddle (sold separately). When a paddle is hit and falls, the hub spins from the weight imbalance. The rotation speed and direction change depending on which targets are hit and in what order – creating unpredictable, dynamic movement. This creates an evolving challenge that forces shooters to compensate for movement, plan their engagement order, and maintain control under dynamic conditions. It’s a proven tool for refining accuracy and reflex shooting skills, ideal for both tactical drills and training exercises using pistols and shotguns.

Key Features:
✔ Target System Only – Includes rotating hub assembly, 5 x AR500 arms, matching 8mm AR500 face plate, and mounting hardware (targets sold separately)
✔ Rated for handgun, light rifle, and shotgun (bird/buck)
✔ Cowboy Match Ready – Shotgun & pistol compatible
✔ Reactive spin with unpredictable motion based on shot sequence
✔ Choose X-Base or REACK X-Base (adapt bracket included with REACK option)
✔ CNC-cut from 8mm AR500 armour steel (arms + face plate)
✔ Expandable to 10-arm configuration with optional add-on kits

Component Coating Notes: Armour components are supplied raw uncoated. If you desire to coat these items we have target system spray paint in the accessories section of our website. Mild steel components come powder coated such as the hub mount, target plate shroud, retainer plate and so on...

This system is built from 8mm AR500 to handle repeated impacts from centre-fire pistols, light rifles, and shotguns. Suitable for .22LR, 9mm, .45 ACP, .223 Remington, 5.56 NATO, .300 Blackout, and 12 Gauge (bird and buckshot only). While extremely robust, the system is not rated for high-powered rifle calibres. Subsonic or light loads may not reliably eject paddles. Regular inspection is recommended when using rifles to prevent long-term damage.

📌 Base Options (Select from Dropdown):

• X-Base – Basic semi-portable stand (Bolt together)

• REACK X-Base – Advanced reactive base for modular systems
    • Includes 90x35 Timber Post Receiver Adapt Bracket
  ⚠️ If purchasing the no-base version, and using a REACK X-Base, you must already have or separately purchase the adapt bracket to mount the timber post.

🔩 What’s Included:

• 1 x Rotating Texas Star Face Plate – 8mm AR500 Armour Steel (Raw Finish)

• 5 x Standard Arms – 8mm AR500 Armour Steel (Raw Finish)

• 1 x Bearing Hub Assembly

• All Mounting Hardware for 90x35mm Timber Post

• Base Option (Dropdown):
    • X-Base
    • REACK X-Base (with 90x35 Adapt Bracket)

📌 Steel Ratings – 8mm AR500 Armour Plate
– Handgun (centre-fire): 15 metres minimum
– Light Rifles (.223, 5.56, .300 BLK): 50 metres minimum (not recommended – violent ejection may damage the retainer plate)
– Shotgun (birdshot/buckshot only): 20 metres minimum
Max Energy: 1,500 ft-lbs Max Velocity: 2,750 fps Min Velocity: 750 fps
⚠️ Not rated for high-powered rifle. Subsonic may fail to actuate targets. Check for wear frequently under rifle use. Distance/velocity overrides apply based on setup.

📌 Paddles Sold Separately – Visit the [Steel Gongs, Paddles & Target Plate Profiles page]
📸 Photo Disclaimer: Images may show additional components for reference. May also show items or parts in powder coat that are not supplied coted. read the description for info on parts that are coated and parts that are not.
🛠️ Assembly instructions: [Instruction Manuals page]
📏 Safety & calibre guidance: [Safety, Distance & Calibre Ratings page]
🇦🇺 Proudly Made in Gippsland, Victoria, Australia
⚠️ AR500 components supplied raw/uncoated. Mild steel parts are powder-coated black.
