DT-Cadet 6mm AR450 Armour Upgrade Kit (Bolt-On)
DT-Cadet 6mm AR450 Armour Upgrade Kit – Rimfire Armour Upgrade for DT-Cadet Duelling Trees
Convert Your DT-Cadet to a Fully Armoured Rimfire System
The DT-Cadet 6mm AR450 Armour Upgrade Kit upgrades your standard unarmoured DT-Cadet Duelling Tree to a fully armoured rimfire-rated system, optimised for use with .22LR, .22 Magnum, and .17 HMR calibres. This bolt-on upgrade improves durability, enhances splatter control, and extends lifespan, while still allowing a future upgrade path to 8mm AR500 if centre-fire capability is ever needed. Unlike the factory welded DT-Cadet Armoured model, this bolt-on kit allows for future replacement, removal, or upgrade flexibility.
📌 Compatible with DT-Cadet (Standard Unarmoured version only)
📌 Not Compatible with Factory Welded DT-Cadet Armoured Version

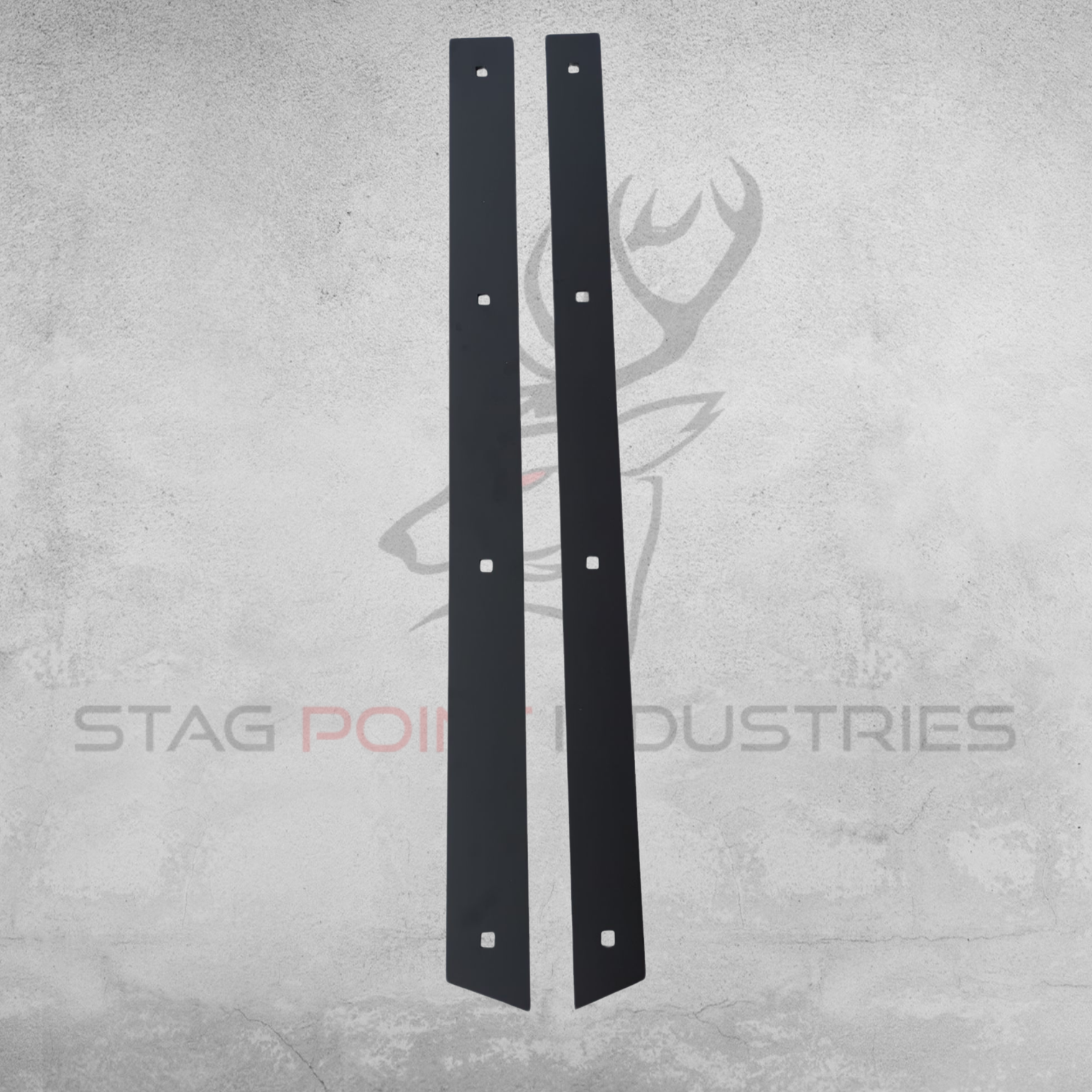

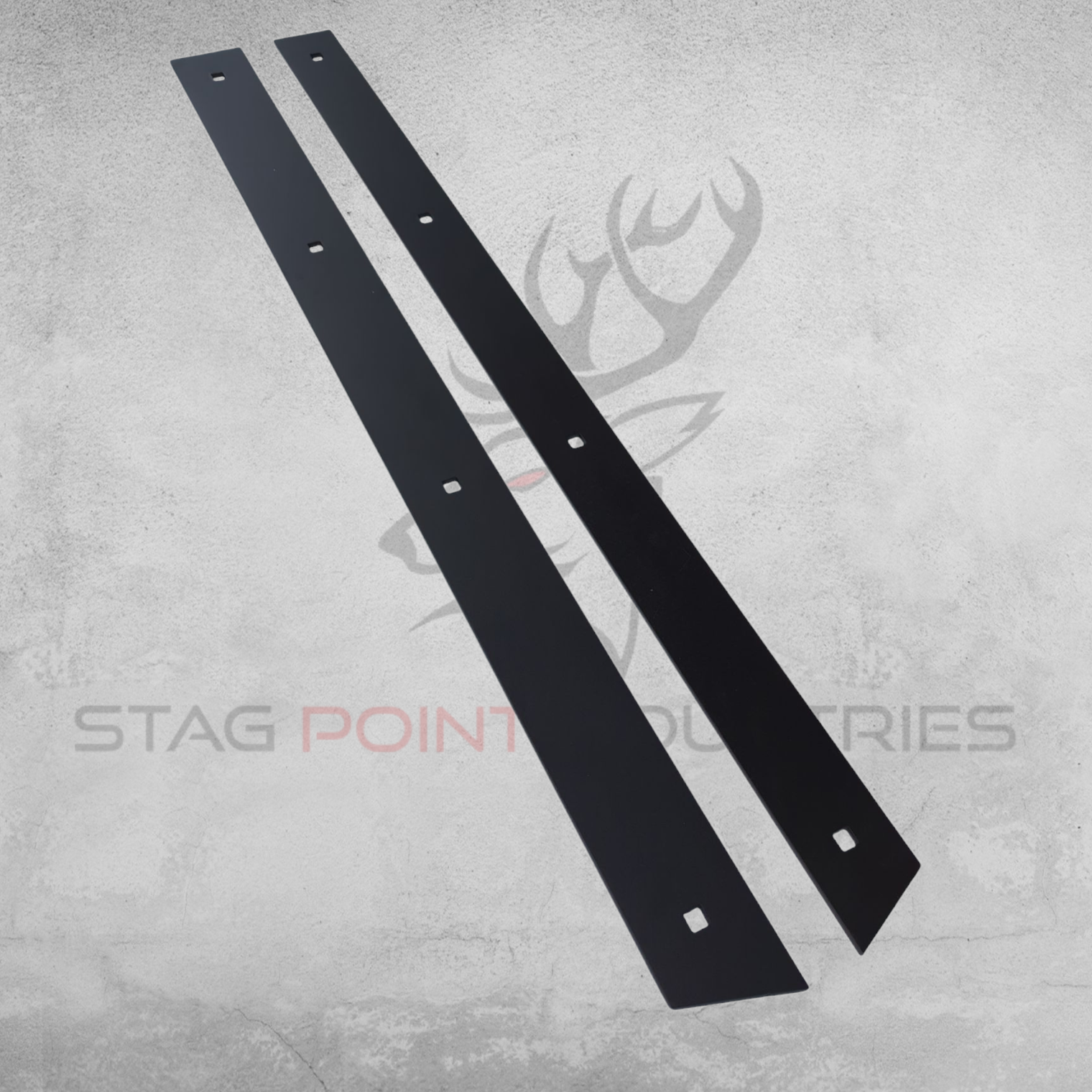

📌 Includes 2 x 6mm AR450 Spine Armour Plates (Raw & Uncoated) – Bolt-on spine protection
📌 Includes 1 x 6mm AR450 REACK X-Base Armour Face Plate (Raw & Uncoated) – Front base protection
📌 Optimised for 6mm AR450 Paddles – No stiffening plates included or required

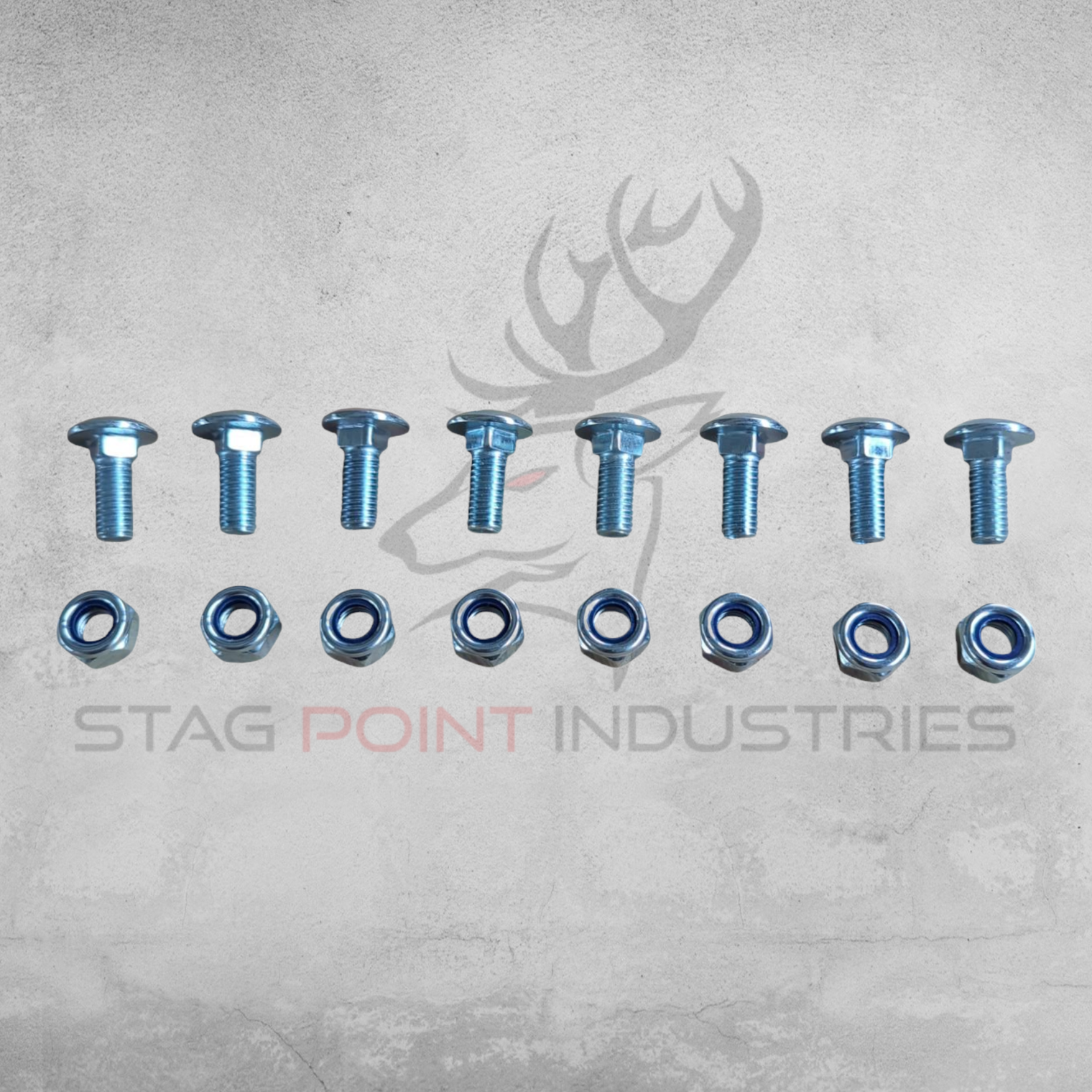

📌 Full Bolt Kit Included – Zinc-plated bolts, washers, nuts, and recoil spring hardware
📌 Designed Specifically for Rimfire Calibres – Not suitable for centre-fire calibres
📌 Easy Future Upgrade Option – Swap to 8mm AR500 upgrade kit anytime
Why Upgrade to the DT-Cadet 6mm AR450 Kit?
✔ Improves System Durability – Enhances lifespan against rimfire impact
✔ Closer Engagement Distances – Allows safe shooting at reduced distances for rimfire use
✔ Better Splatter Control – Minimises fragmentation and ricochet risk
✔ Future-Proof Flexibility – Easily removable or upgradeable to 8mm AR500 if needed later
✔ Lightweight Rimfire Protection – No unnecessary stiffening plates for rimfire-only calibres
📌 Important Compatibility Notes:
-
✅ Designed for DT-Cadet (Standard Unarmoured version only)
-
❌ Not compatible with DT-Cadet Armoured (factory welded AR450) versions
-
❌ Not rated for centre-fire handgun or rifle use – Rimfire only
Calibre Ratings & Shooting Distances (6mm AR450 Armour Upgrade)
🛑 Handgun (.22LR, .22 Magnum, .17 HMR)
🔹 Angled (16° to 20°+) Targets: 10 metres+
🔹 Vertical (Perpendicular) Targets: 50 metres+
🛑 Rifle (.22LR, .22 Magnum, .17 HMR)
🔹 Angled Targets: 25 metres+
🔹 Vertical (Perpendicular) Targets: 50 metres+
🛑 Shotgun (.410, 12 Gauge Birdshot Only)
🔹 Angled (16° to 20°+) Targets: 15 metres+
🔹 Vertical (Perpendicular) Targets: 20 metres+
Velocity & Energy Ratings
🛑 Velocity & Energy Limits
🔹 Maximum Energy: 300 ft-lbs
🔹 Maximum Velocity: 2,650 fps at impact
🔹 Minimum Velocity: 700 fps at impact
⚠ Rounds under 1,100 fps may not reliably flip paddles
⚠ Rounds slower than 500 fps may not fragment properly, increasing ricochet risk
Paddle Compatibility – What Works Best
✔ 6mm AR450 Paddles – Recommended to match armour rating for proper actuation and longevity
✔ 6mm Mild Steel Paddles – Can be used but will wear faster (system will default to mild steel rating)
❌ 8mm & 10mm Paddles – Not compatible; too heavy for proper actuation with rimfire calibres
📌 Reminder:
A higher-rated target stand can use lighter paddles, but a lighter-rated stand should never be used with heavier centre-fire-rated paddles unless system limitations are fully understood.
Future Upgrade to 8mm AR500 Armour
✔ Upgrade anytime by fitting the 8mm AR500 Armour Upgrade Kit (sold separately)
✔ 8mm AR500 Kits include bolt-on stiffening plates for heavier paddle support
✔ 8mm upgrades allow proper use of 8mm & 10mm paddles for centre-fire handgun and light rifle calibres
📌 Reminder: Upgraded systems with bolt-on 8mm armour require slightly increased minimum shooting distances for added safety around fastener exposure.
📸 Photo Disclaimer: Images may show additional products for reference. This listing is for the DT-Cadet 6mm AR450 Armour Upgrade Kit only – DT-Cadet Duelling Tree, REACK X-BASE, and flip paddles sold separately.
🇦🇺 Proudly Made in Gippsland, Victoria, Australia
