Scorpion Slide-Lock Hanger Kit (10mm AR500)

Quick-Swap Target Hanger, Suits 10mm AR500 Centrefire Scorpion Posts (1x Kit)

Our Strongest Hanger in the Scorpion Series

The Slide-Lock Hanger Kit – 10mm AR500 is built for shooters who demand the highest level of durability and system stability when using light rifle calibres like .223, 5.56 NATO, and .300 Blackout. Designed specifically to pair with the 10mm AR500 Scorpion Post, this hanger offers maximum resistance to movement, smoother recoil absorption, and long-term reliability under repeated impacts. Ideal for shooters wanting less target sway, improved close-range performance, and the strongest mounting solution available in the Scorpion line-up.

📌 Supplied Raw – Uncoated 10mm AR500 Armour Plate

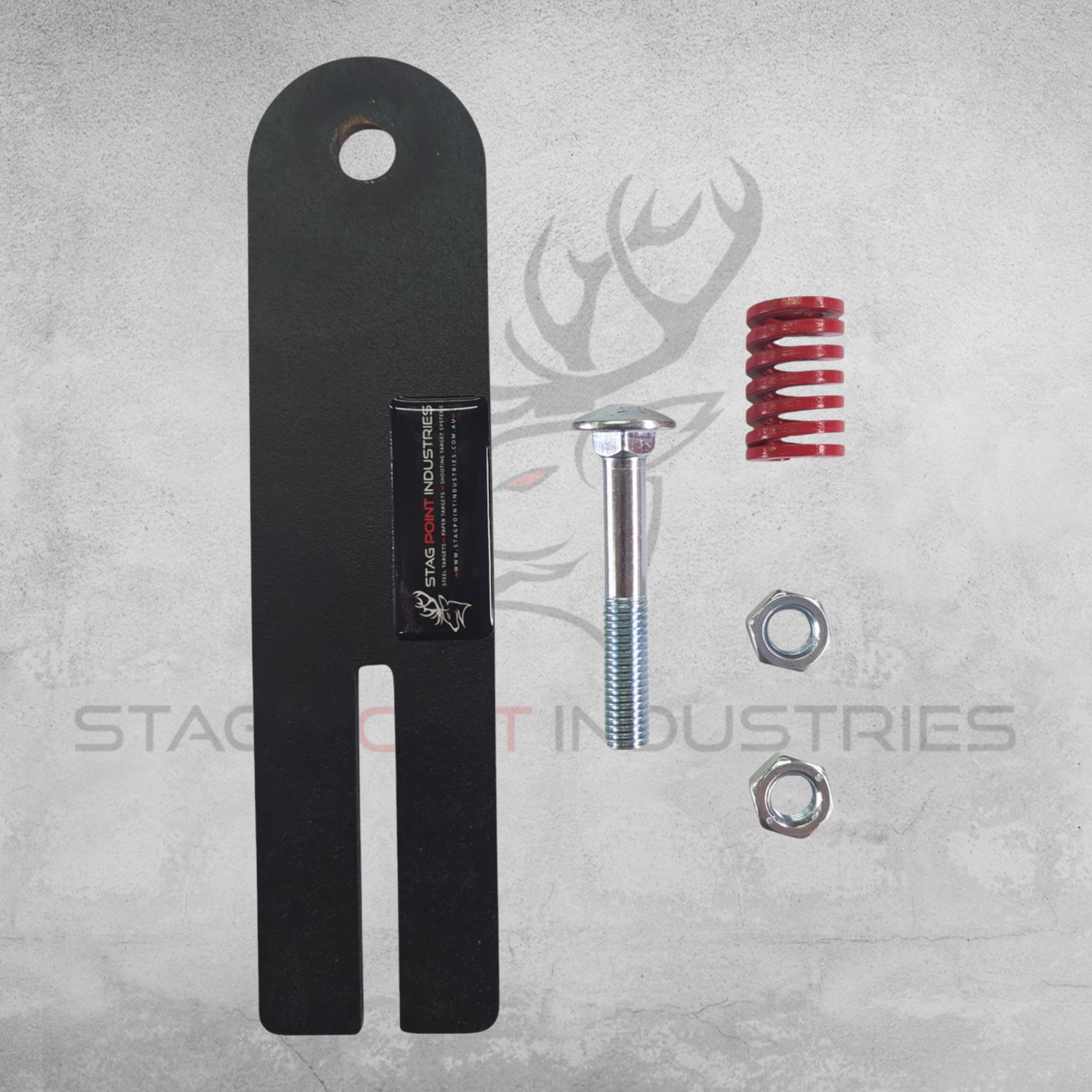

📌 Includes Zinc-Coated Hardware & Recoil Spring Mounting Kit
📌 Designed for Quick-Swap Use – No Tools Required to Change Targets
📌 Compatible with Single-Bolt Centre Mount Target Plates (10mm or Lower)
📌 Best Suited for Plate Rack Gongs, IPSC Silhouettes & Round Gong Profiles

Why Use a Slide-Lock Hanger?

✔ Quick Plate Changes – Slide between targets in seconds with no tools
✔ Maximum Rigidity – 10mm AR500 construction offers superior stability under recoil
✔ Pistol & Light Rifle Optimised – Ideal for close-range handgun and carbine use
✔ Recoil Spring System Included – Helps absorb energy and prevent hardware fatigue
✔ Finish – Supplied raw (uncoated)
📌 Powder coating typically wears off quickly during use. If you’d like to apply your own finish, protective coatings are available under our Target Maintenance & Accessories section.

Compatibility & Use

✔ Specifically designed for the 10mm AR500 Scorpion Post
✔ Not compatible with 6mm or 8mm Scorpion Posts – will not fit due to thickness difference
✔ Best paired with 10mm AR500 target plates
✔ Physically compatible with 8mm AR500 targets – using a lighter plate is fine, but it does not increase the system’s rating
✔ Physically compatible with 6mm AR450 and 6mm Mild Steel targets, but not recommended – the system will only be rated to the weakest component
✔ Target plates must have a single-bolt centre mount

📌 Important Note: While heavier AR500 plates (10mm) don’t officially increase the overall safety rating of the Scorpion system to a great extent, they do allow for closer engagement distances as a big advantage for light rifle users and do offer increased impact resistance. From a distance-rating perspective, 10mm AR500 can handle full-power rifle calibres up to .30-06, but we do not recommend using heavy centrefire rifles with the Scorpion system.
Why? Because although the material itself is capable, the design of the system introduces excessive forward/backward movement and front leg lift under high-energy impacts — especially when engaging targets with large-calibre rifles. In most realistic scenarios, the Scorpion system won’t provide any advantage for larger rifle use, particularly since calibres like .308 or .30-06 still require 100m+ minimum engagement distances. For this reason, we strongly recommend using a Gong Frame Bracket Kit or stepping up to a Delta Series stand for long-range and magnum-calibre rifle applications. These systems are far more suited to the size, energy, and practical engagement ranges of larger-calibre rifles.

📌 As with all Slide-Lock systems, we recommend using a target plate that fully covers the hanger – not for protection (as this version is armoured), but to reduce visual distractions and maintain a clean target view presented to the shooter.

📌 Always ensure you're using the correct hanger for your Scorpion Post:

• 6mm Hanger = 6mm Post
• 8mm Hanger = 8mm Post
• 10mm Hanger = 10mm Post
  Matching the material ensures correct fitment — hangers will not physically attach to posts of a different thickness.

📸 Photo Disclaimer: Some product images may show parts finished in powder coat for visual reference. Please note that many components in the Scorpion range — including posts, slide-lock hangers, and mounting hardware — are supplied raw and uncoated unless otherwise stated. The only common powder-coated components across the Scorpion line-up are the base legs (6mm mild steel). The 6mm Mild Steel Scorpion Post and its hanger are the only variants with black powder coating applied. All other versions (AR450 and AR500) are supplied raw and uncoated.
If desired, raw components can be finished or coated after delivery. Please read the product description carefully to confirm finish and material before purchasing.

🇦🇺 Proudly Made in Gippsland, Victoria, Australia
