Texas Star Standard Arm Replacement – 6mm Mild Steel (.22LR Only)

Texas Star Standard Arm Replacement – 6mm Mild Steel (.22LR Only)

Mild Steel | Straight Arm Style | 🔁 Flip-to-Extend Use | ⚠️ Single Plate Only | 🇦🇺 Australian Made

Key Features:
✔ Single Replacement Arm – Suits all mild steel Texas Star models
✔ .22LR Rated – Optimised for Cadet Mild Steel Texas Star systems
✔ Straight 'I-Arm' Style – Replaces original central-position arms
✔ Flip-to-Extend – Unbolt and rotate to use the clean reverse face
✔ Black Powder-Coated Finish – Mild steel components supplied coated
✔ Arm Plate Only – Hardware and spring assemblies sold separately

Product Overview:

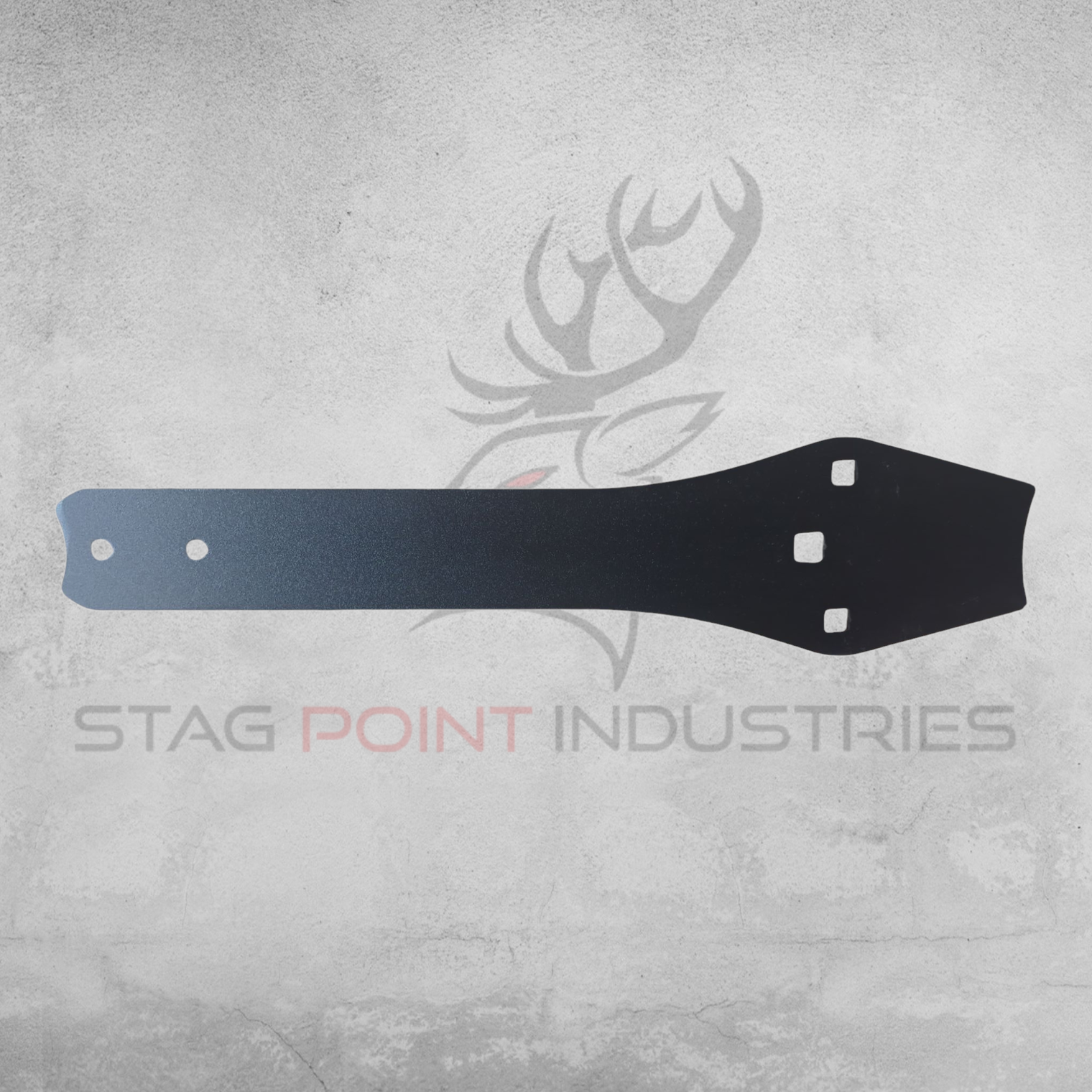

This is a single 6mm Mild Steel Standard Arm plate for Stag Point Industries Texas Star systems. It’s a direct replacement for the original straight arms found in 5-arm configurations such as the Cadet Mild Steel Texas Star. These arms are rated for .22LR only and are ideal for replacing worn, pitted, or damaged parts on lower-energy systems.

Each plate can be unbolted and flipped to use the clean reverse face when the front becomes worn, effectively doubling the usable life. Once both faces are worn, replace the arm with a new matching plate.

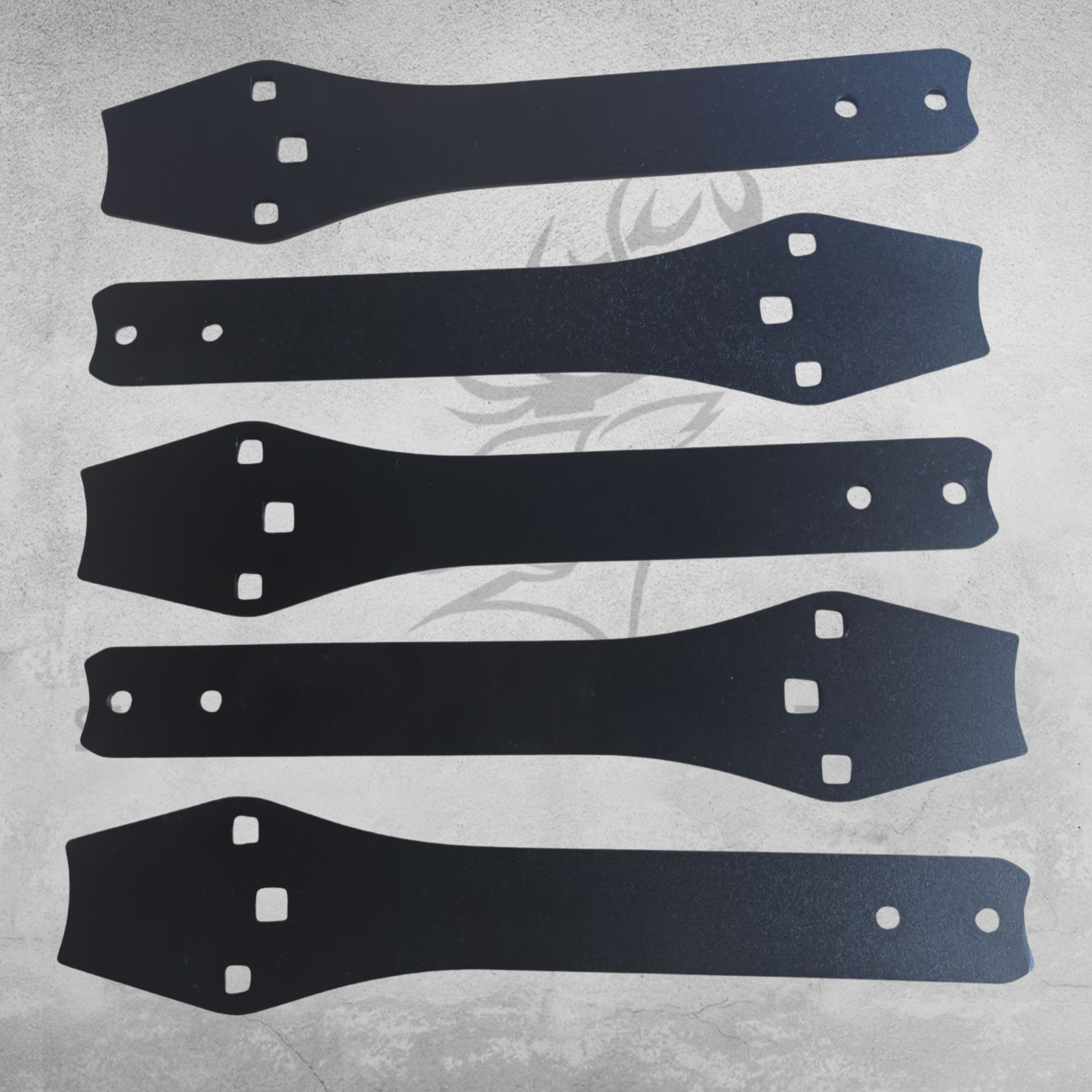

📌 To purchase a full set of five arms, simply add x5 to cart.
📌 This listing is for the arm plate only – mounting hardware, target shroud, and spring retainer are not included. These can be purchased separately as a complete kit.

🔧 What’s Included:

• 1 x 6mm Mild Steel Standard Arm Plate (Straight Style Only)


📦 Note:
This is a single replacement arm plate only.
Shroud, spring retainer, and bolts are not included.

📌 Upgrade Consideration – Moving Beyond Mild Steel
Looking to upgrade your system to a higher calibre rating? You can replace your 6mm mild steel arms with 6mm AR450 or 8mm AR500 armour-rated arms, as long as you also upgrade your centre face plate and use matching calibre-rated target paddles.
✅ Example: Upgrade a Cadet Mild Steel Texas Star to a centre-fire capable setup by fitting:
• 8mm AR500 standard arms
• An 8mm AR500 armour-rated face plate
• Centre-fire rated target paddles

Always ensure all components in the shooting zone match the desired calibre rating – the system is only as strong as its weakest part.

📌 Steel Rating – 6mm Premium Mild Steel
Rated for .22LR only
• Vertical Targets: 50 metres+
• Max Velocity: 1,200 fps • Min Velocity: 800 fps
⚠️ Not suitable for .22 Magnum, .17 HMR, centre-fire, or shotgun. Replace arms showing deformation or pitting.

📸 Photo Disclaimer: Images may show additional components or coating not included with this listing.
🖤 Mild steel components are powder-coated black.
⚙️ AR450 and AR500 armour components are supplied raw/uncoated.

🎨 Want to paint your own parts?
Our Target Spray Paint is available in the Accessories section of the website.

🛠️ Assembly instructions: [Instruction Manuals page]
📏 Safety & calibre guidance: [Safety, Distance & Calibre Ratings page]
🇦🇺 Proudly Made in Gippsland, Victoria, Australia
