DT-Alpha Duelling Tree Bundle – Centrefire Kit with REACK X-BASE & X6 100mm AR500 Flip Paddles

$1,496.00
Shipping calculated at checkout.

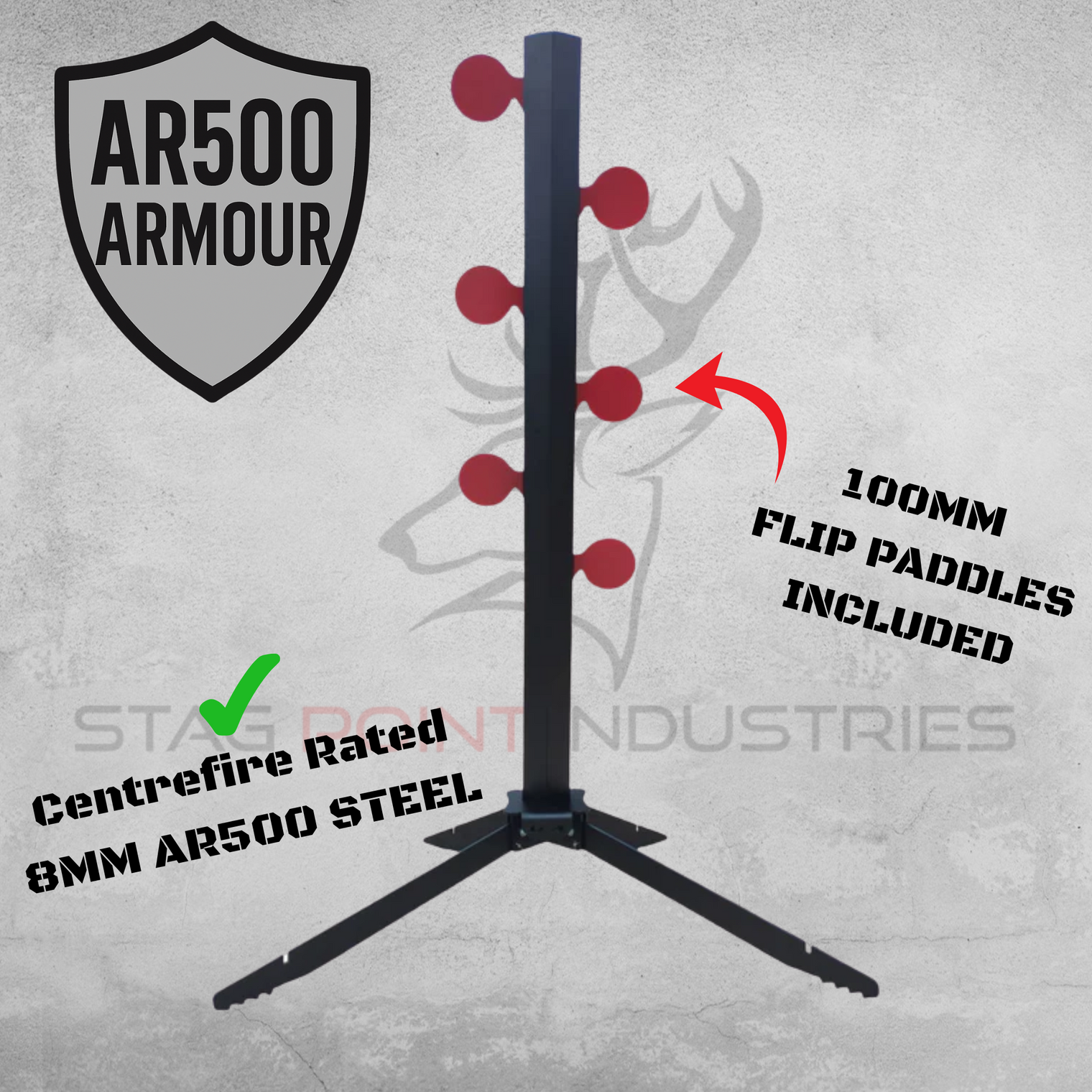

DT-Alpha Duelling Tree System Bundle – Heavy-Duty Reactive Target Kit with REACK X-BASE & 6 AR500 Flip Paddles

The DT-Alpha Duelling Tree System Bundle is our strongest and most durable reactive target system, built for shooters running handguns, light rifles, and shotguns. Featuring a solid 8mm AR500 armour spine and 6 x precision-cut 100mm AR500 flip paddles, this system is designed for high-volume training, competition practice, and heavy-duty performance without requiring upgrades.

With its fully reactive flip paddle design, every hit sends the paddle smoothly to the opposite side, delivering dynamic feedback and helping shooters develop speed, accuracy, and rapid target transitions.


Key Features

Complete Heavy-Duty Bundle – Includes DT-Alpha Duelling Tree, REACK X-BASE, and 6 x 100mm AR500 Flip Paddles (6-Pack Only)
Built Tough – Solid 8mm AR500 Armour Plate Spine for maximum strength and extended service life
For Handgun, Light Rifle & Shotgun Use – Rated for standard calibres up to 1,500 ft-lbs at impact
AR500 Flip Paddles – Precision-cut 100mm paddles provide smooth, balanced, and reliable flipping
Quick-Deploy REACK X-BASE – Collapsible stand with locking quick-release pins for fast setup and takedown
Forward-Angled Design – Safely deflects bullet fragments downward and protects components
Versatile Paddle Compatibility – Supports 8mm & 10mm AR500 paddles, plus 6mm Mild Steel & AR450 paddles (stiffening plates removed)

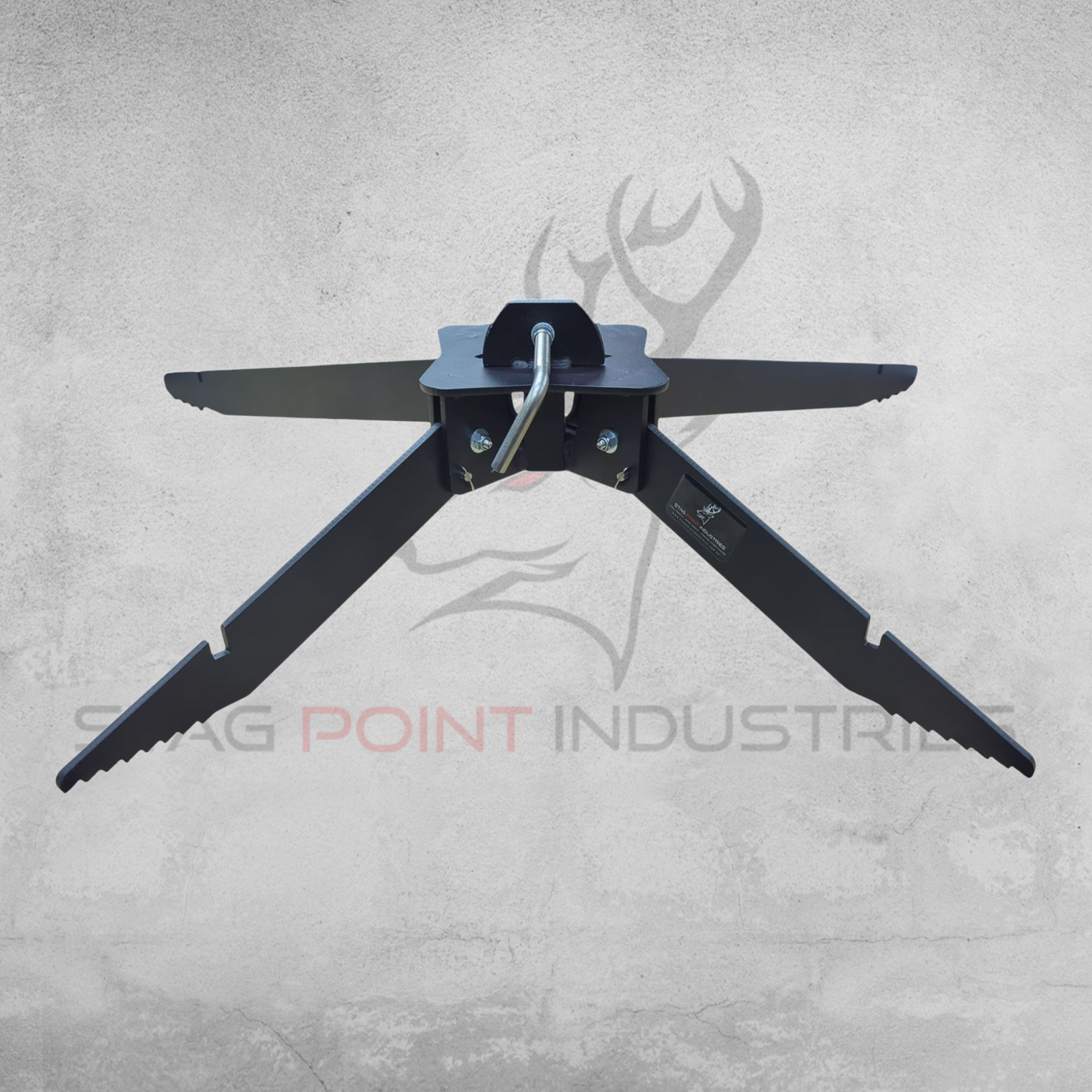

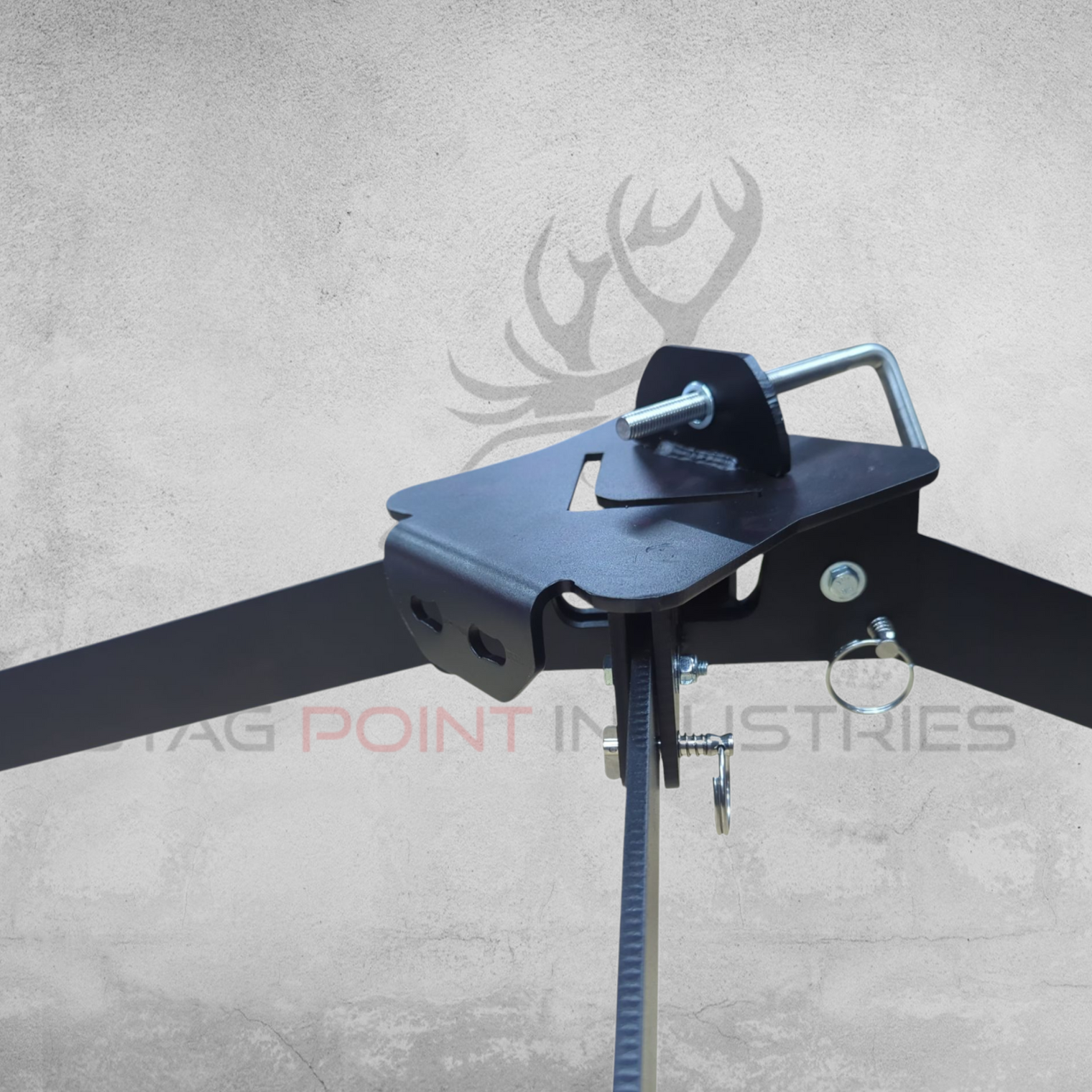

REACK X-BASE Included

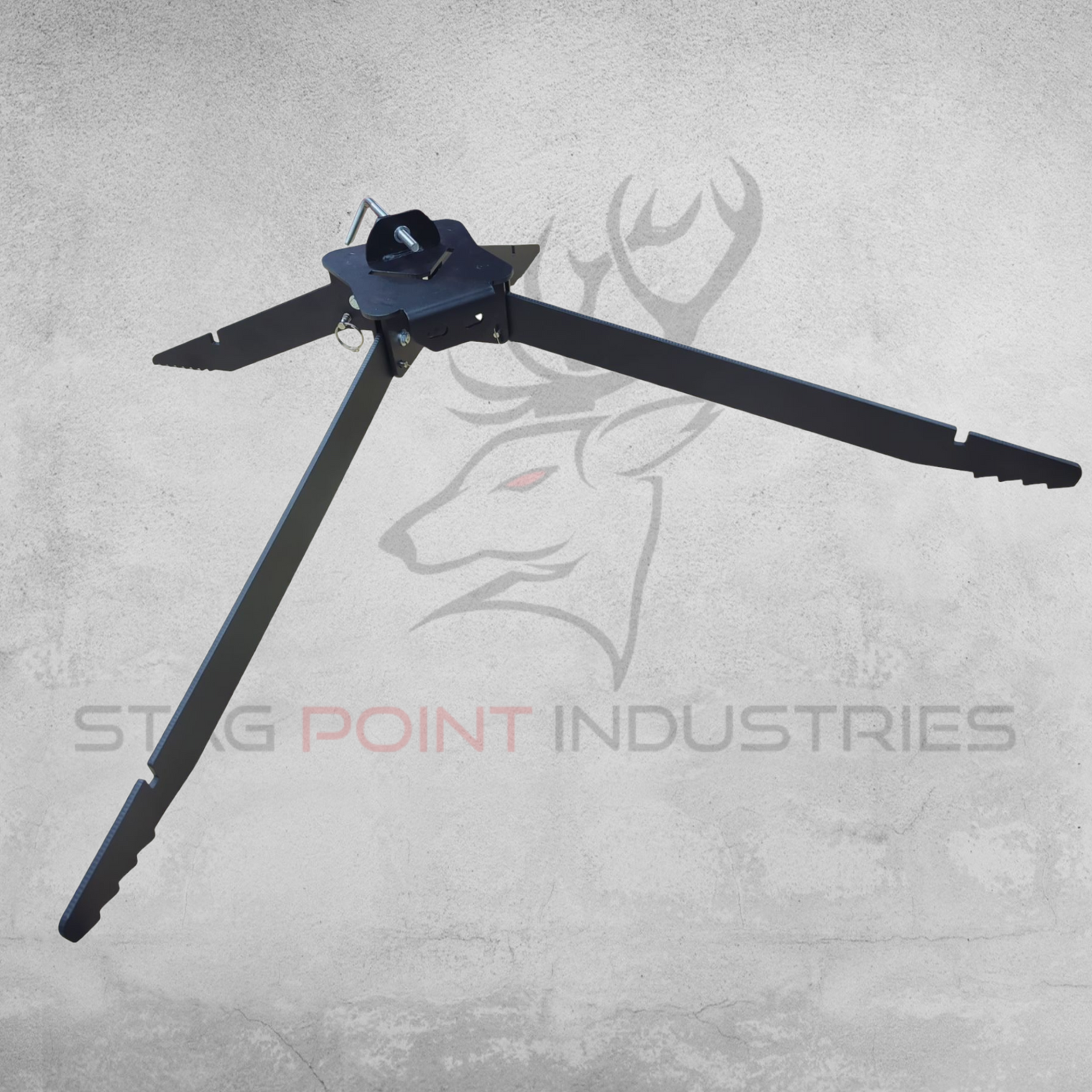

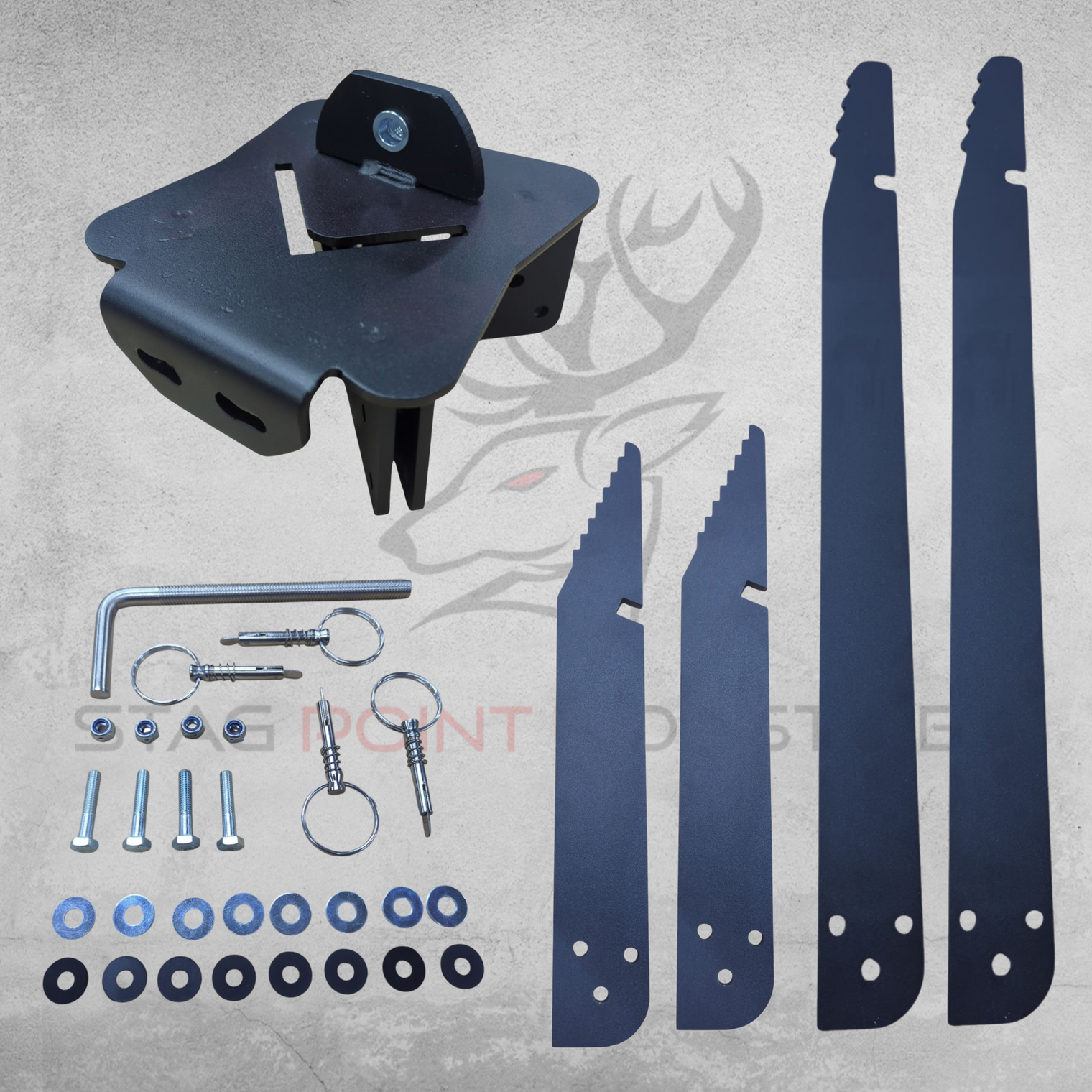

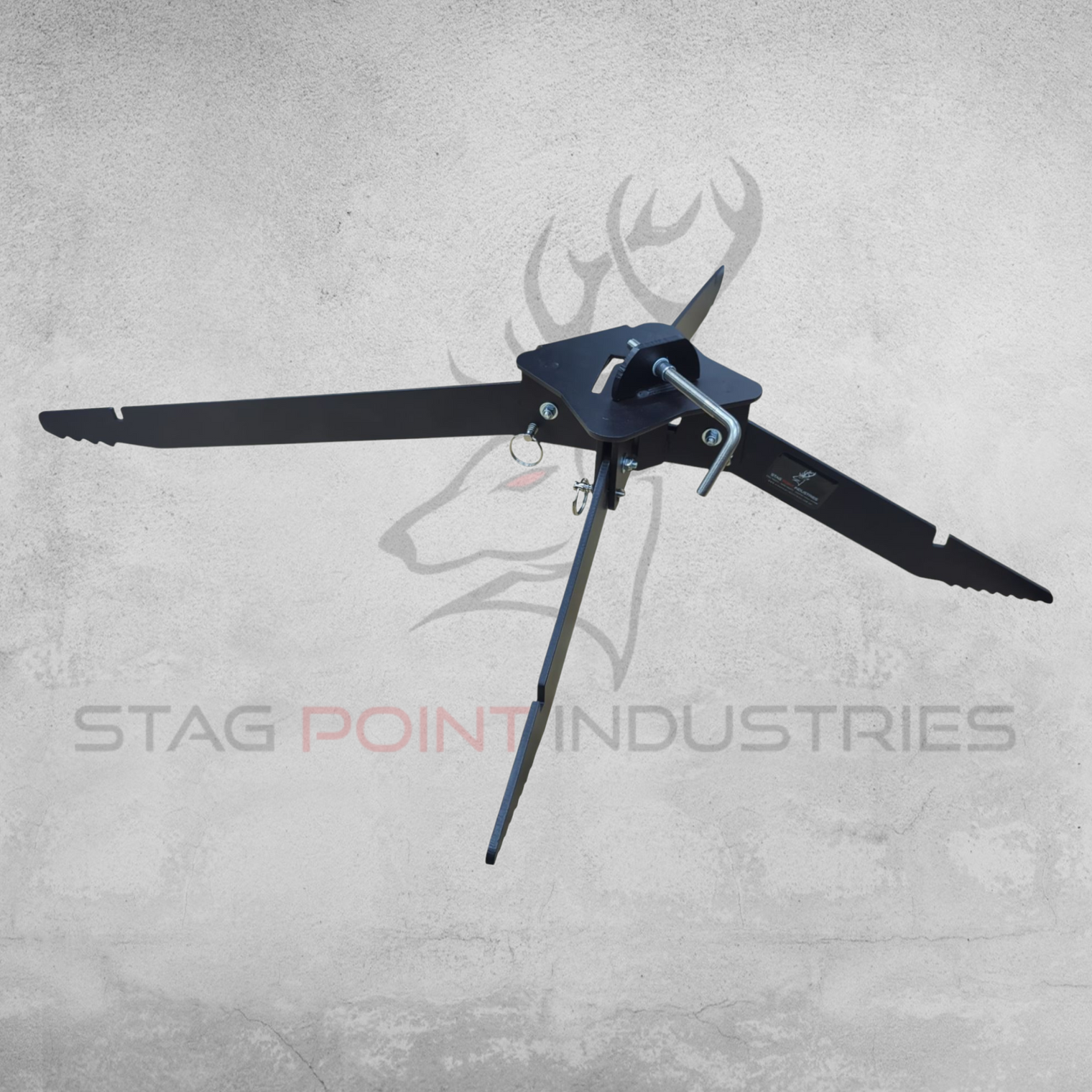

The included REACK X-BASE is a collapsible, quick-deploy stand purpose-built to support SPI’s heaviest target systems. The reinforced X-shaped leg structure provides maximum stability while maintaining portability for transport and storage.

Features:

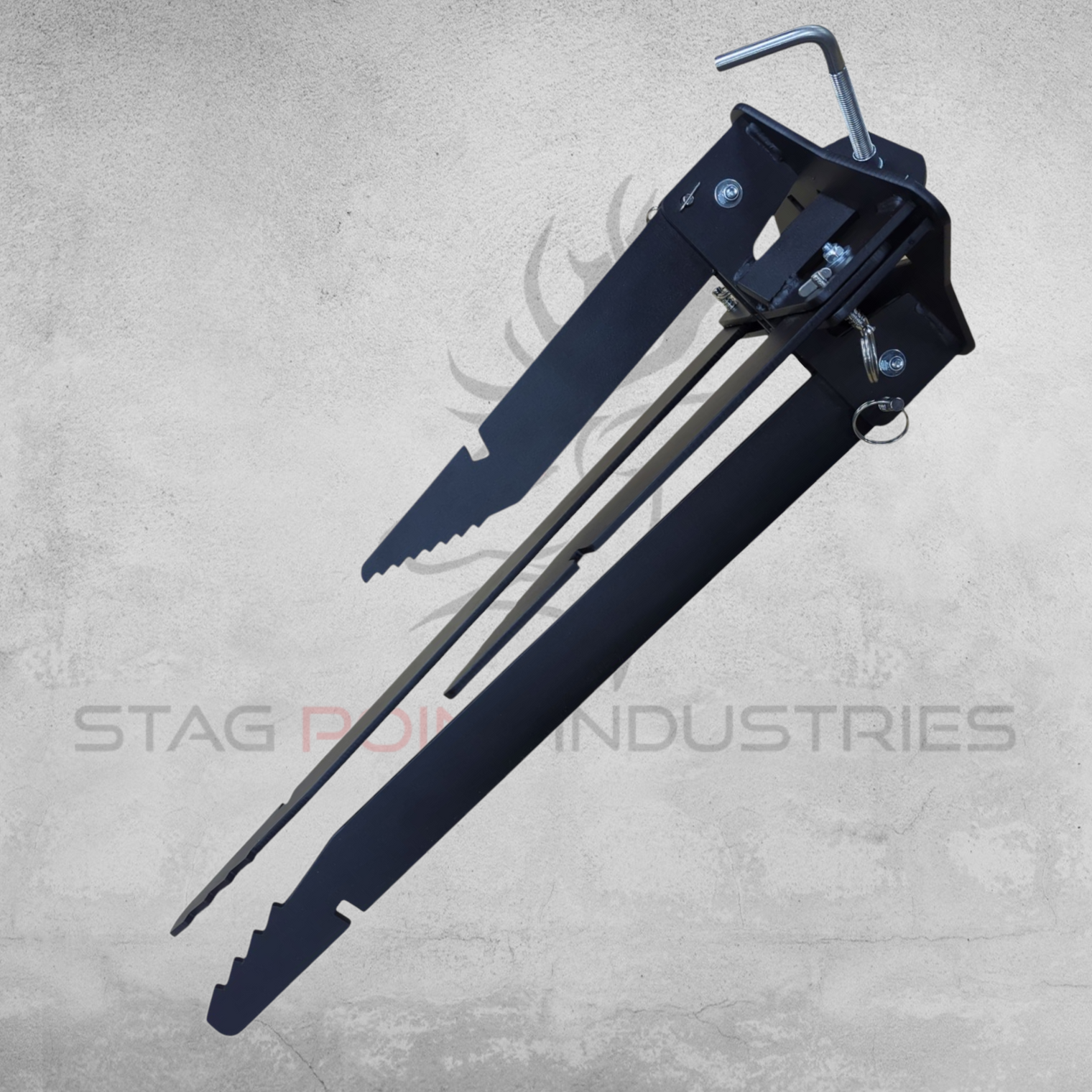

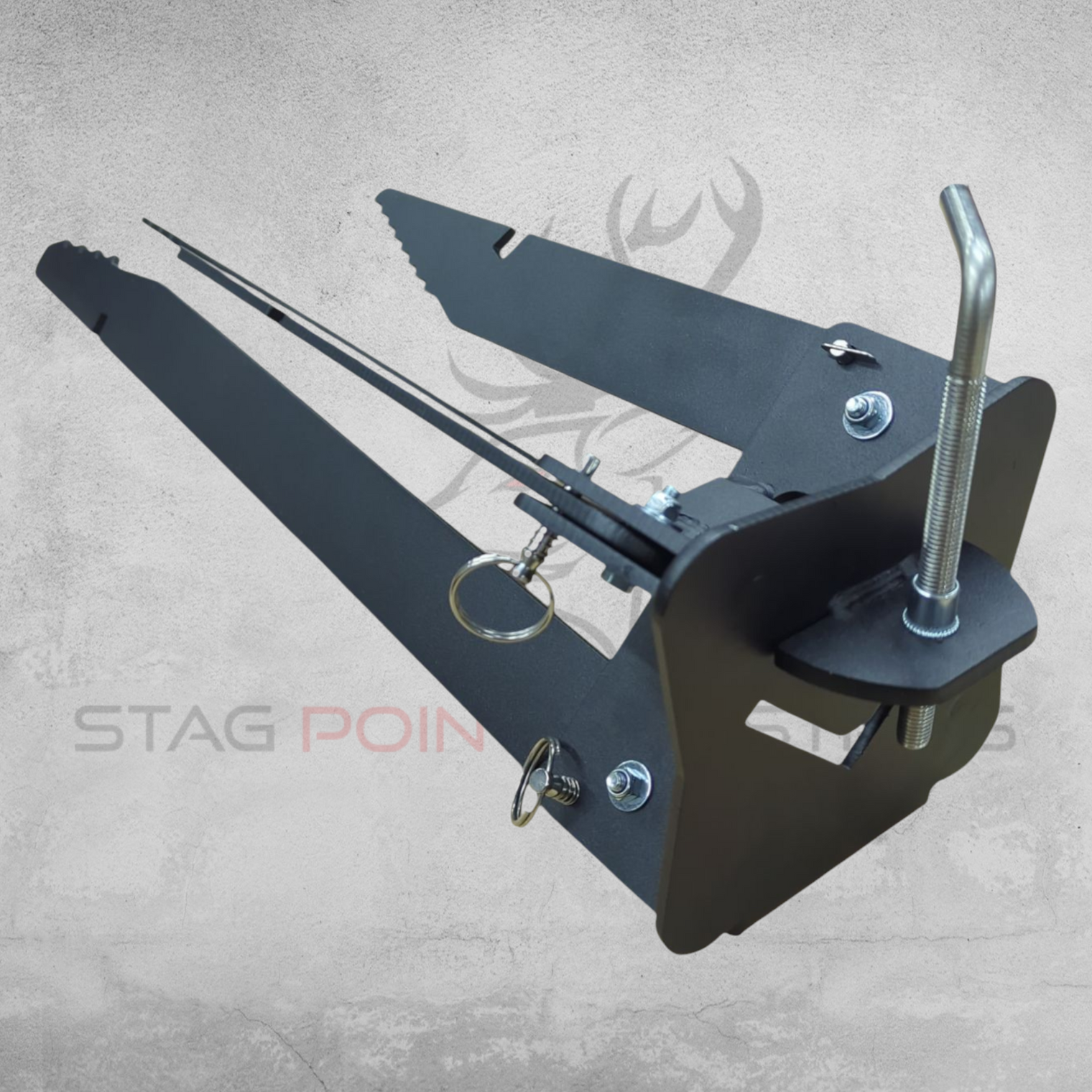

  • Fast assembly & pack-down using quick-release locking pins

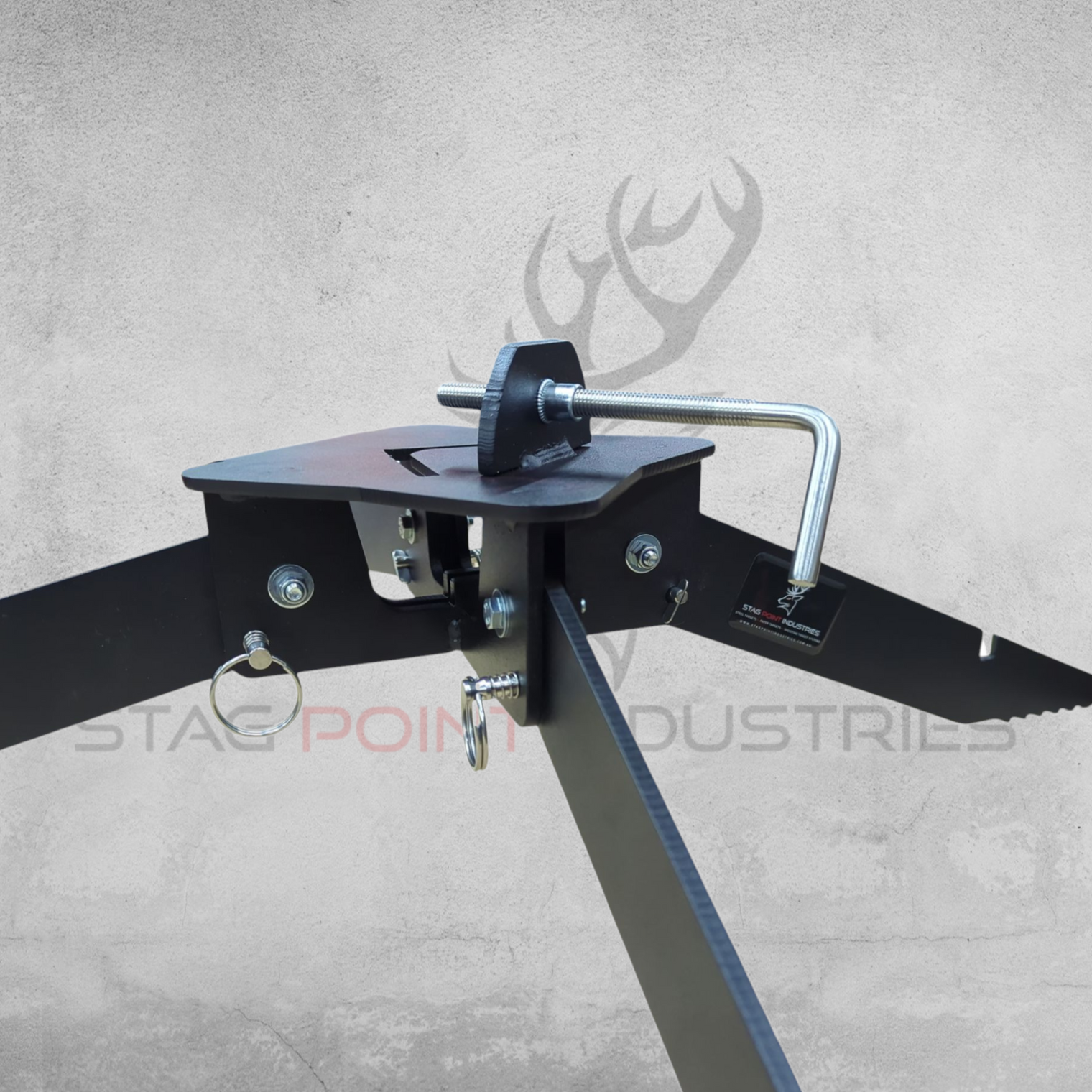

  • Auto-locks the tree spine at the correct forward lean angle

  • Supports multiple SPI target systems, including:

    • DT-Alpha Duelling Tree (8mm AR500)

    • DT-Cadet Duelling Tree (Mild Steel & AR450)

    • Cadet & Alpha Drop Trees


Flip Paddle Details (Included – 6-Pack Only)

  • Size: 100mm round profile – standard size for duelling tree setups

  • Material: 8mm AR500 Armour Steel – designed for handgun, light rifle & shotgun use

  • Precision-Cut for Performance: Smooth, balanced flipping motion for rapid drills

  • Tool-Free Installation: Drops straight into the DT-Alpha mounts for quick swaps

  • Durability: Resistant to cratering, pitting, and high-impact deformation

Performance Notes:

  • Rounds below 1,100 fps may not reliably flip 8mm & 10mm paddles.

  • .22LR, .22 Magnum & .17 HMR will not actuate 8mm & 10mm paddles, even above 1,100 fps, due to low energy.

  • For rimfire use, 6mm Mild Steel or AR450 paddles are required (remove stiffening plates for proper flipping).


Calibre Ratings & Safe Shooting Distances (DT-Alpha – 8mm AR500 Spine)

🛑 Handguns (.22LR to .45 ACP)

  • Angled Targets (16°–20°+): 10m+

  • Vertical Targets: 15m+

🛑 Light Rifles (.223 Rem, 5.56 NATO, .300 Blackout)

  • Angled Targets: 30–40m+

  • Vertical Targets: 50–60m+

🛑 Shotguns (.410, 12 Gauge – Birdshot & Buckshot)

  • Angled Targets: 25m+

  • Vertical Targets: 30m+

Maximum Impact Energy: 1,500 ft-lbs
Maximum Velocity: 2,800 fps
Minimum Velocity: 750 fps (for reliable paddle actuation)

Not Rated For:

  • Magnum rifles or heavy centrefire calibres

  • Ultra-low velocity rounds (<500 fps increases ricochet risk)

📌 For full details, visit our [Safety, Distance & Calibre Ratings page].

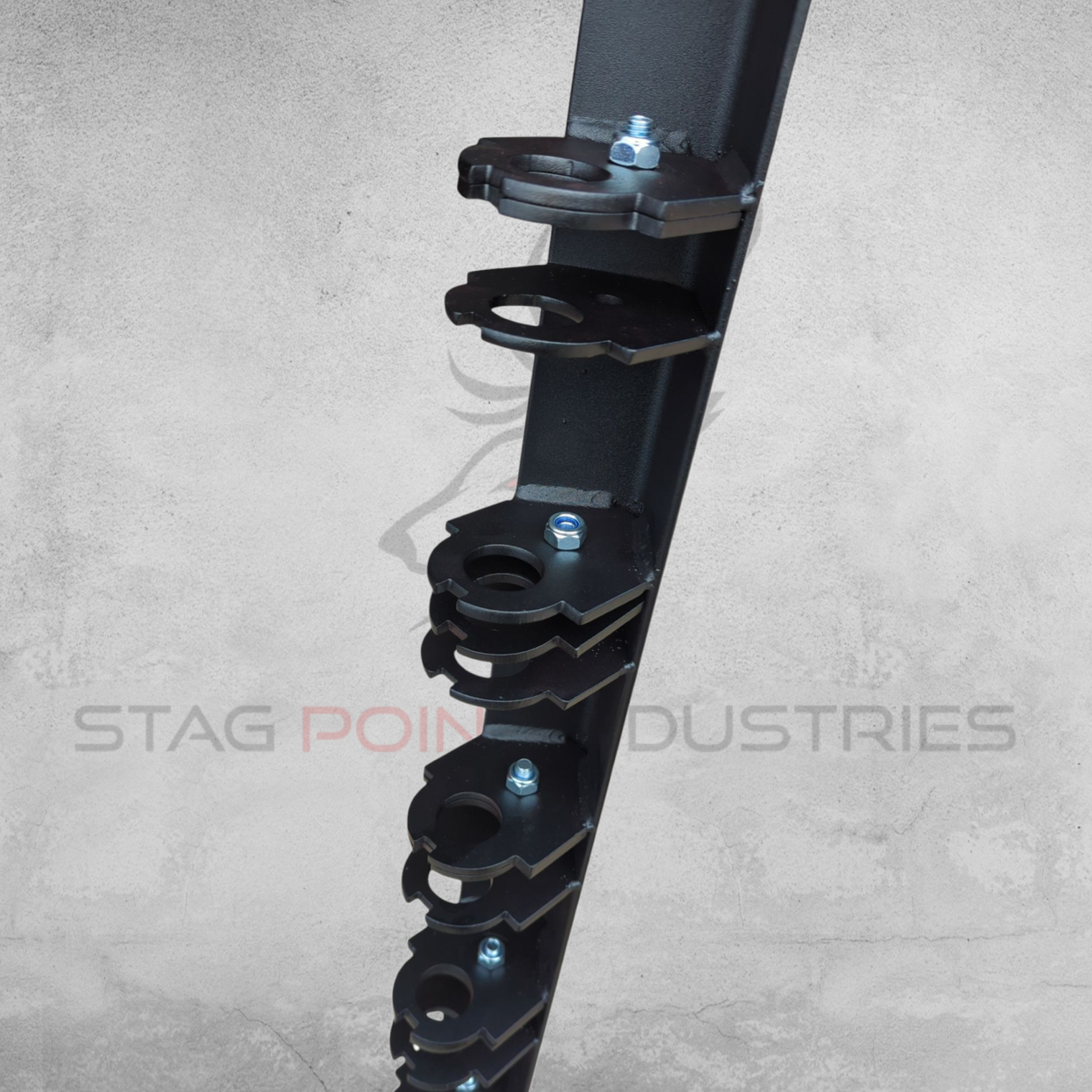

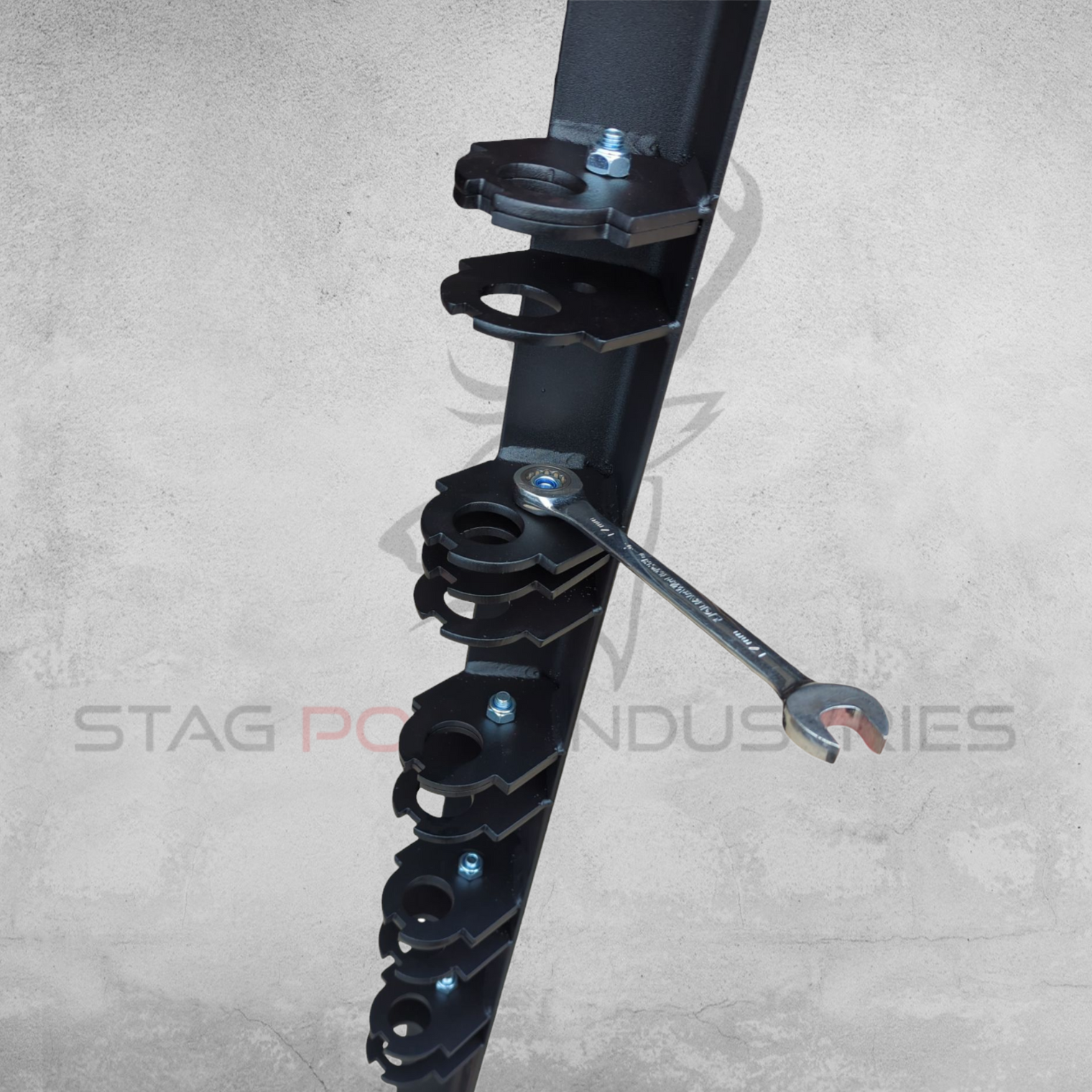

Stiffening Plate System

The DT-Alpha includes six integrated stiffening plates on each paddle holder for extra strength:

  • 8mm & 10mm AR500 paddlesKeep stiffening plates installed for maximum support

  • 6mm Mild Steel & AR450 paddlesRemove stiffening plates to allow proper flipping


What’s Included

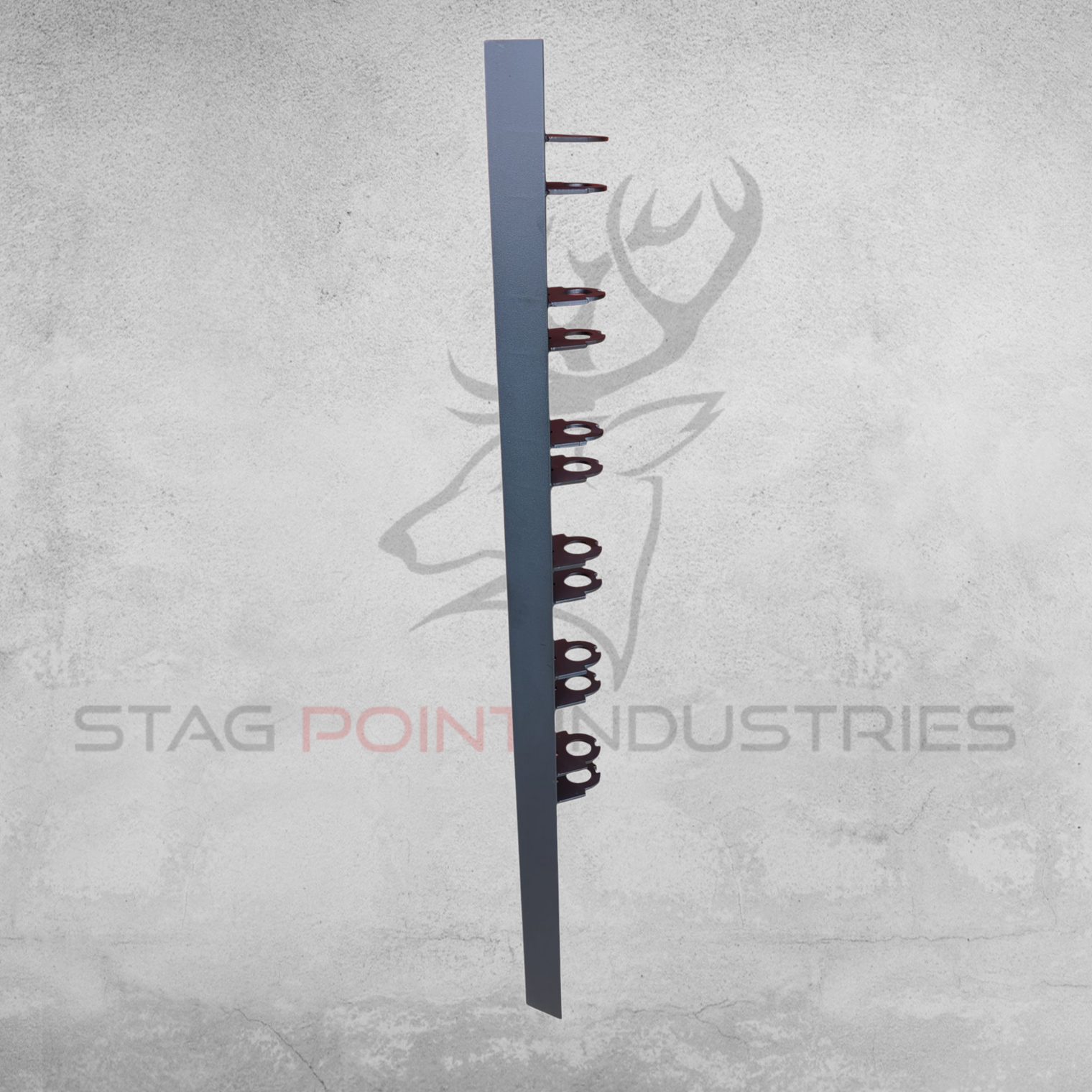

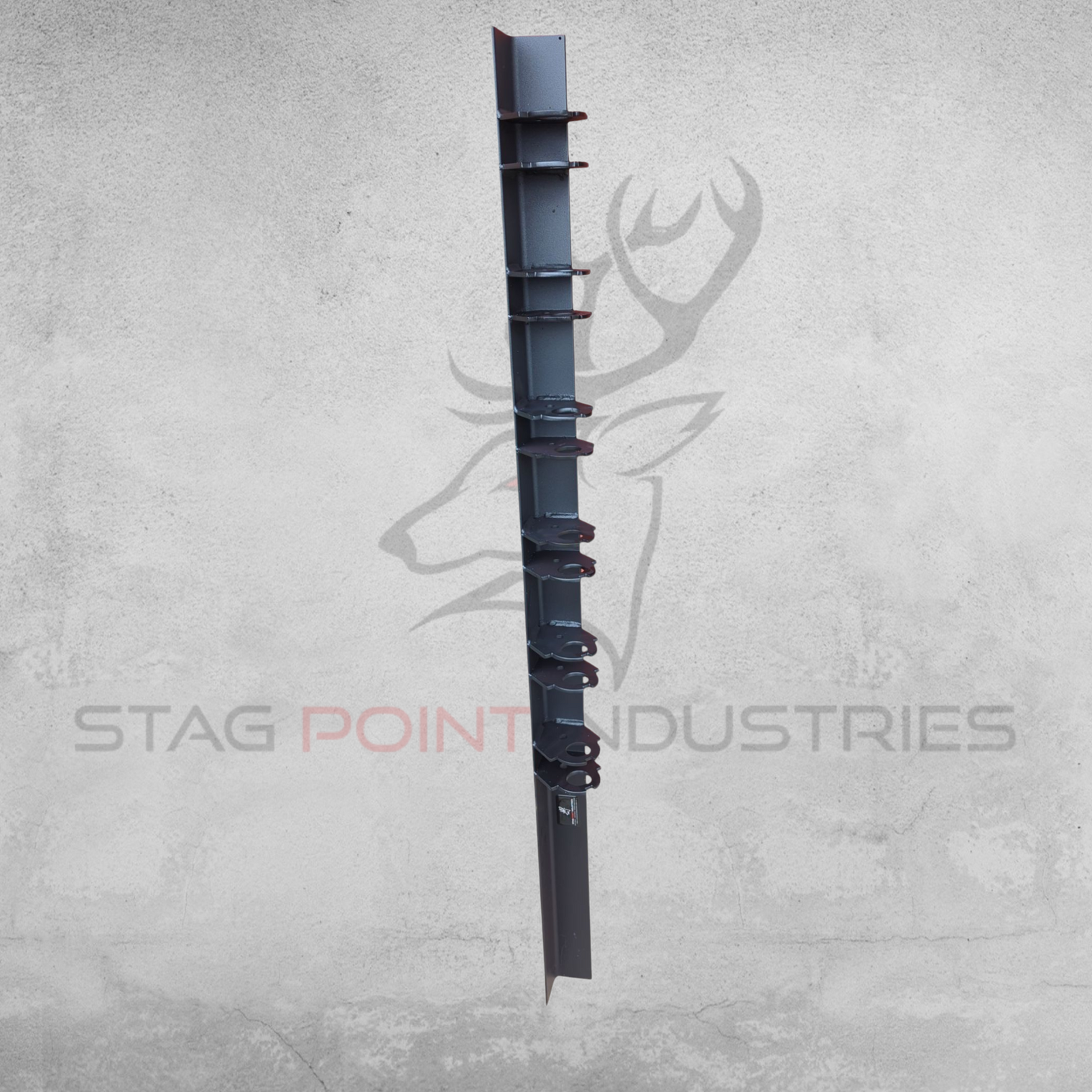

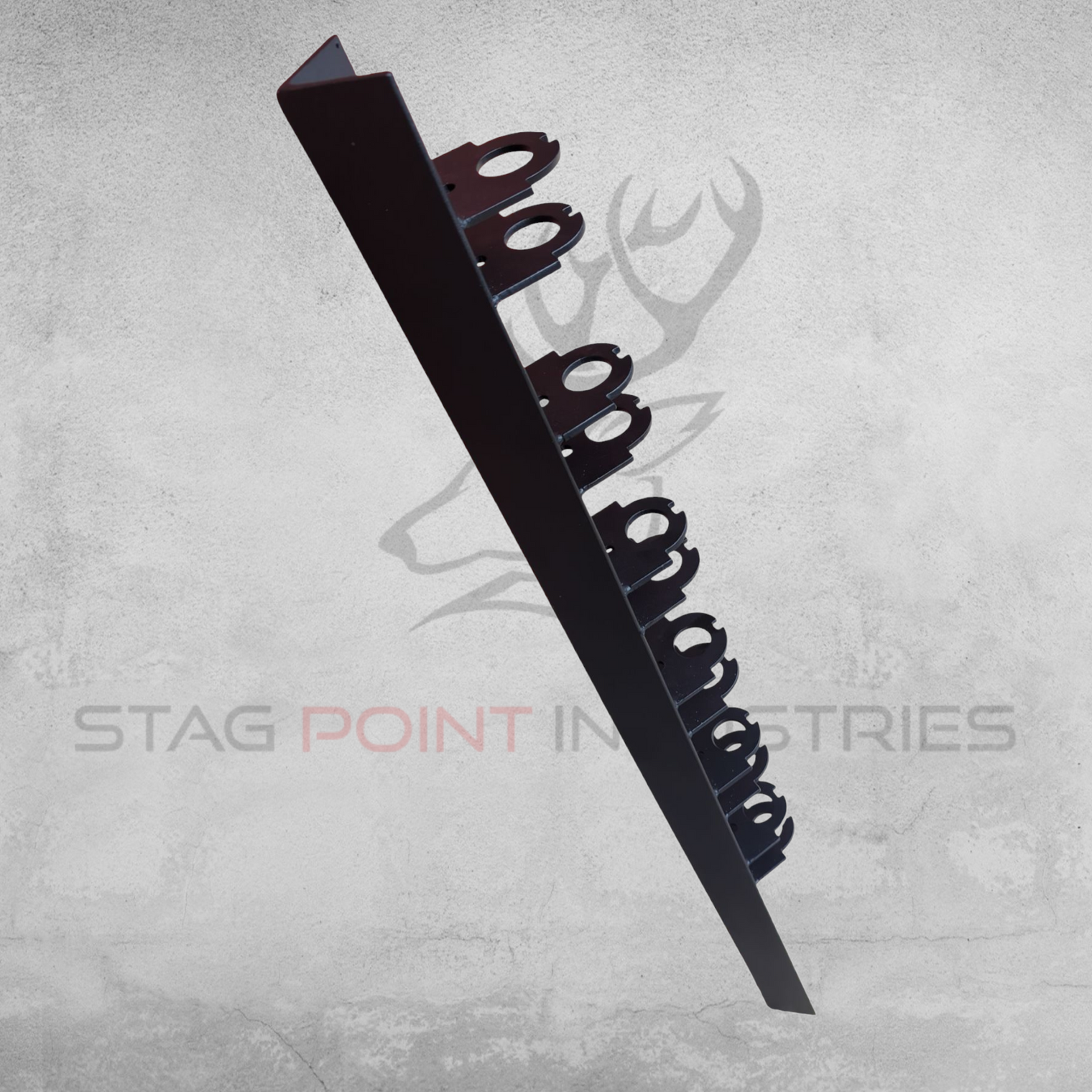

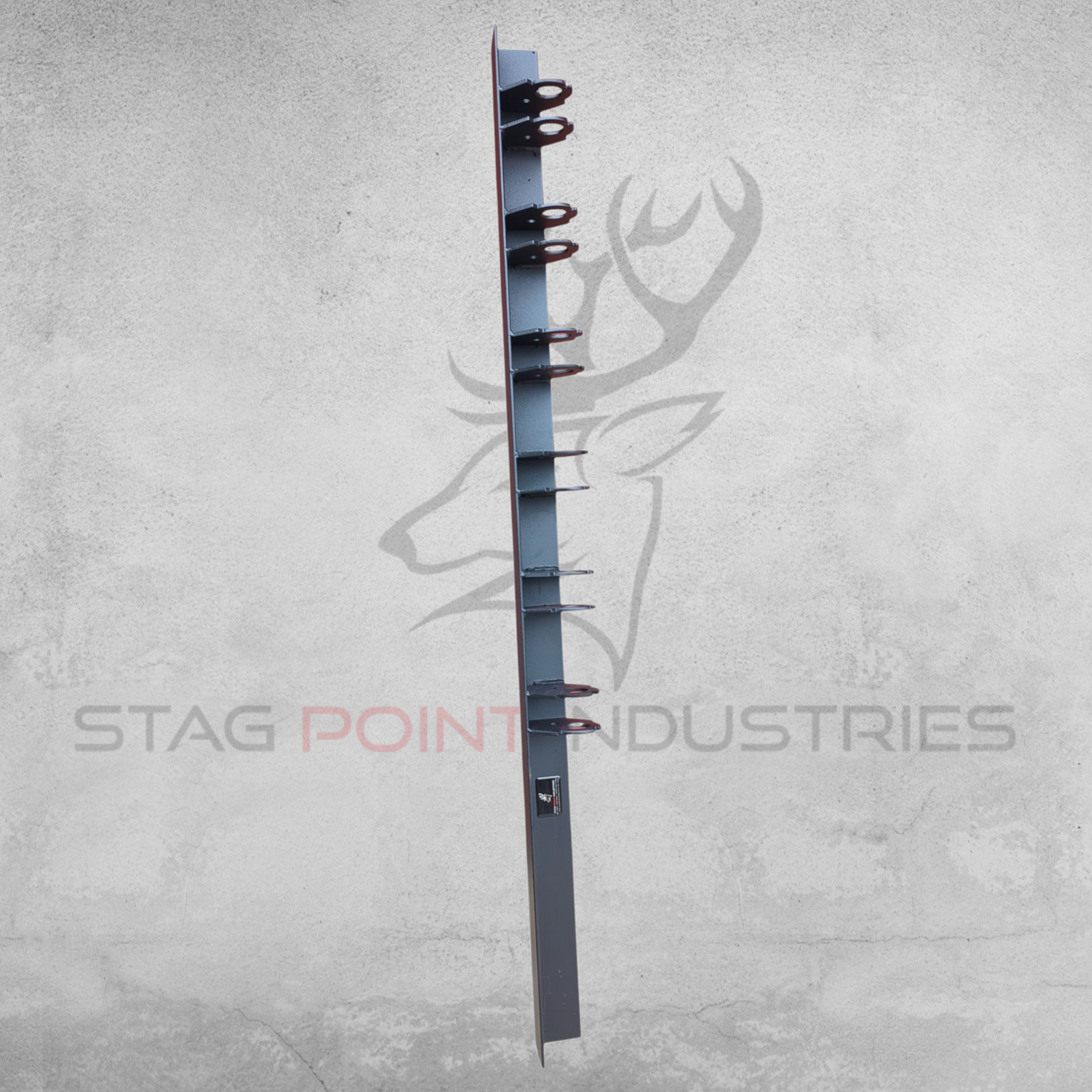

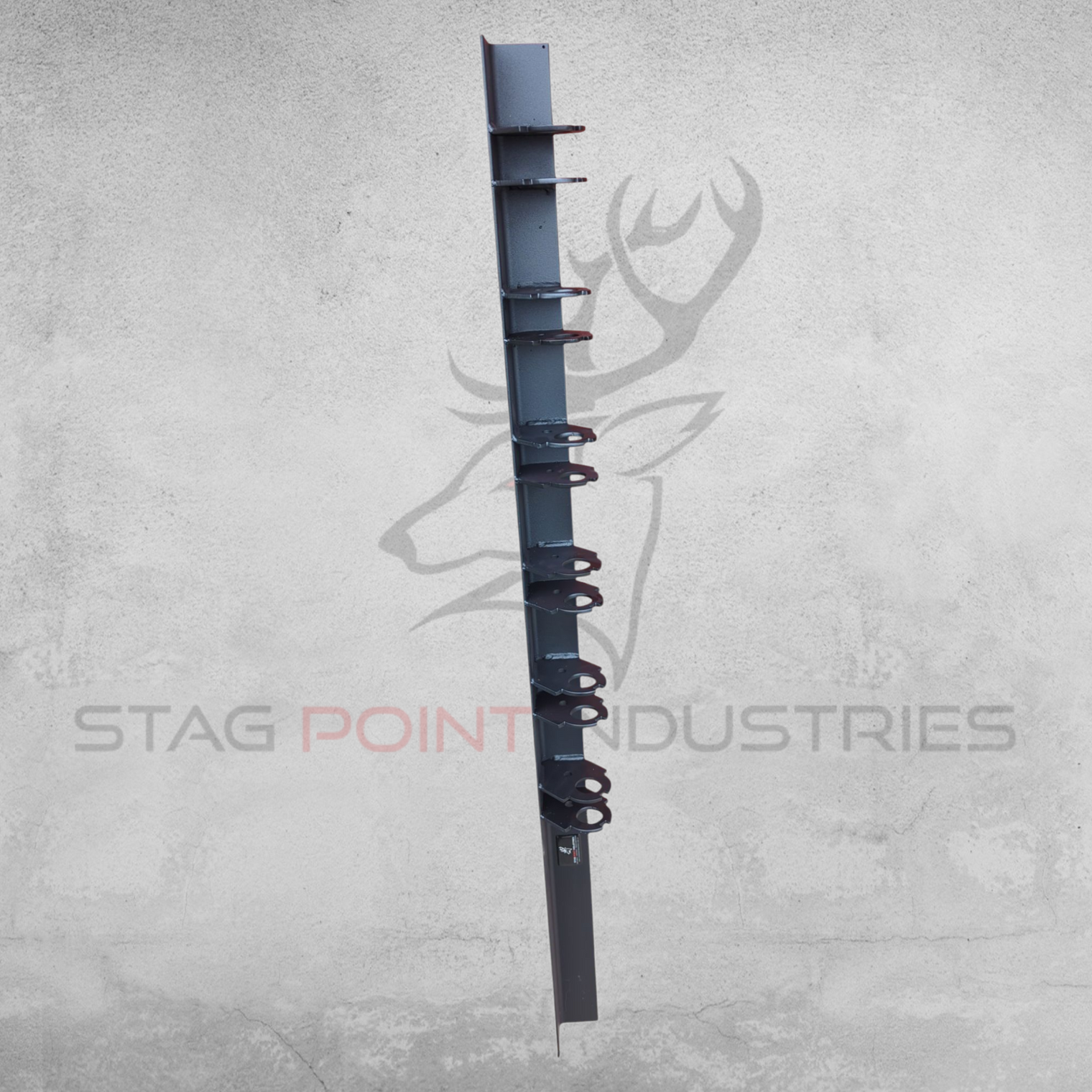

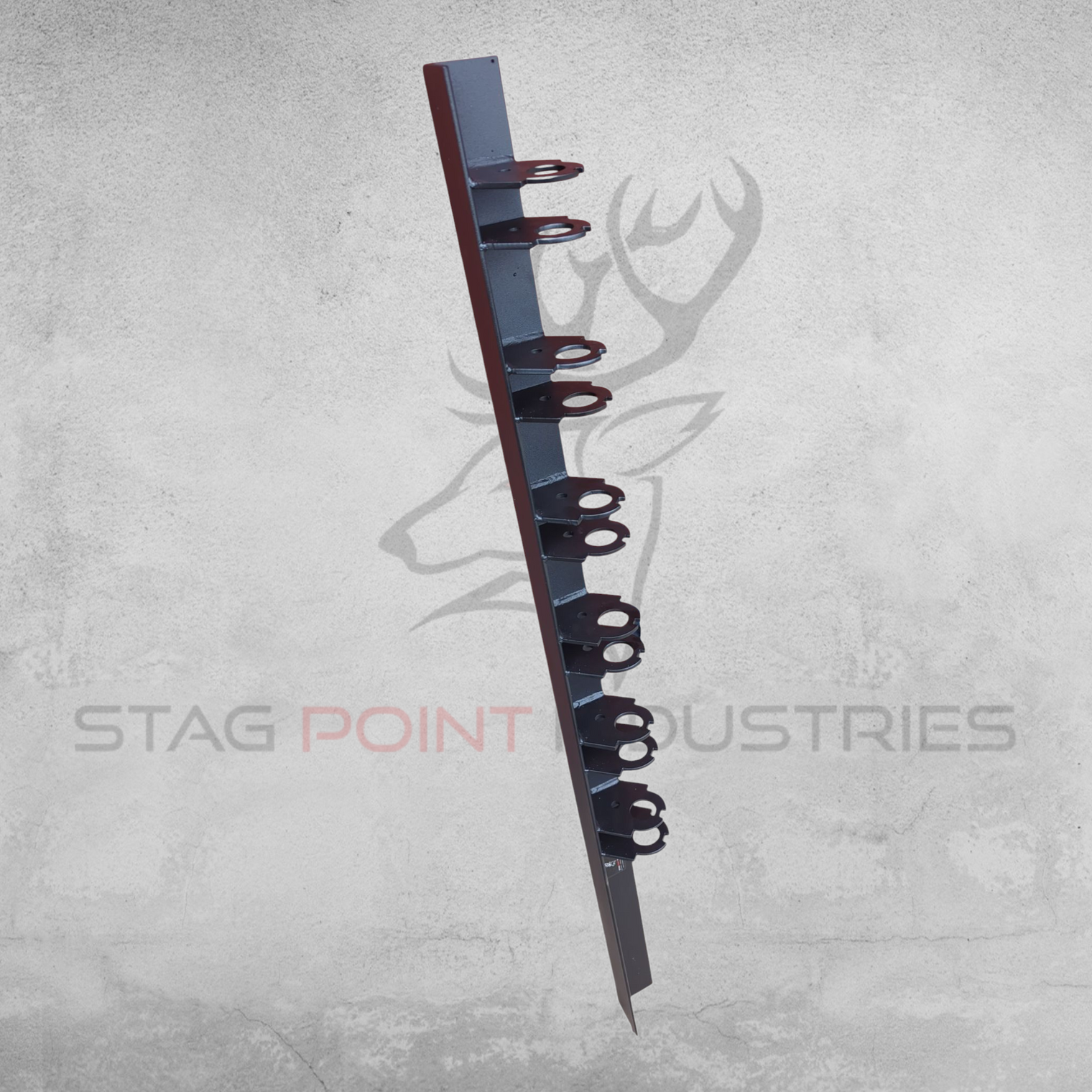

  • 1 x DT-Alpha Duelling Tree Spine (8mm AR500 Armour Plate)

  • 1 x REACK X-BASE Stand (Collapsible, Quick-Deploy)

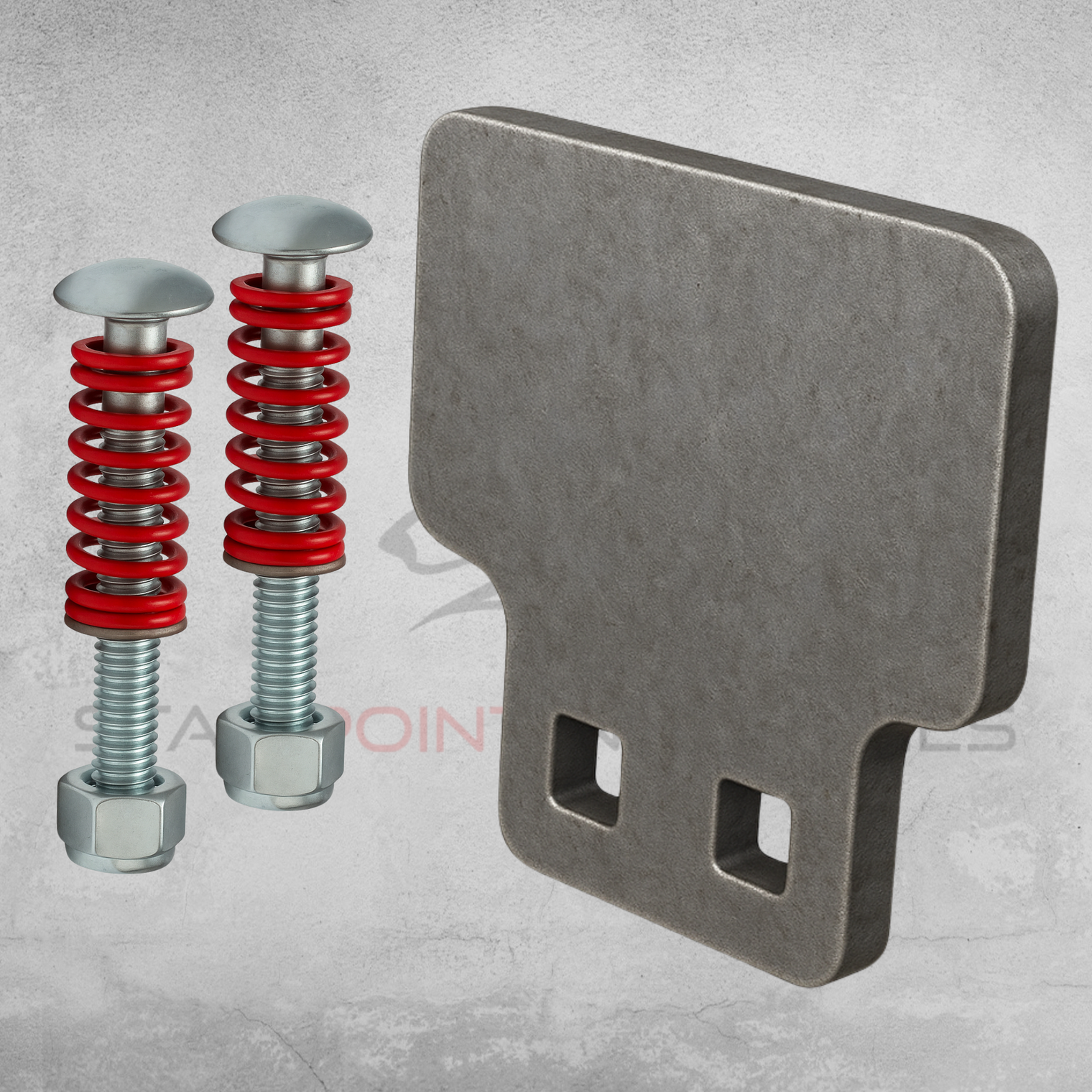

  • 1 x AR500 Armour Face Plate

  • 6 x 100mm AR500 Flip Paddles (6-Pack Only)

  • All Required Assembly Hardware


📸 Photo Disclaimer: Images may show additional accessories for reference only. This listing includes the DT-Alpha Duelling Tree with REACK X-BASE and 6 x 100mm AR500 Flip Paddles. Optional paddle's and upgrades are sold separately.

🇦🇺 Proudly Made in Gippsland, Victoria, Australia
