DT-Cadet Armoured Duelling Tree Bundle – Rimfire Kit with REACK X-BASE & X6 100MM AR450 Flip Paddles

$1,246.00
Shipping calculated at checkout.

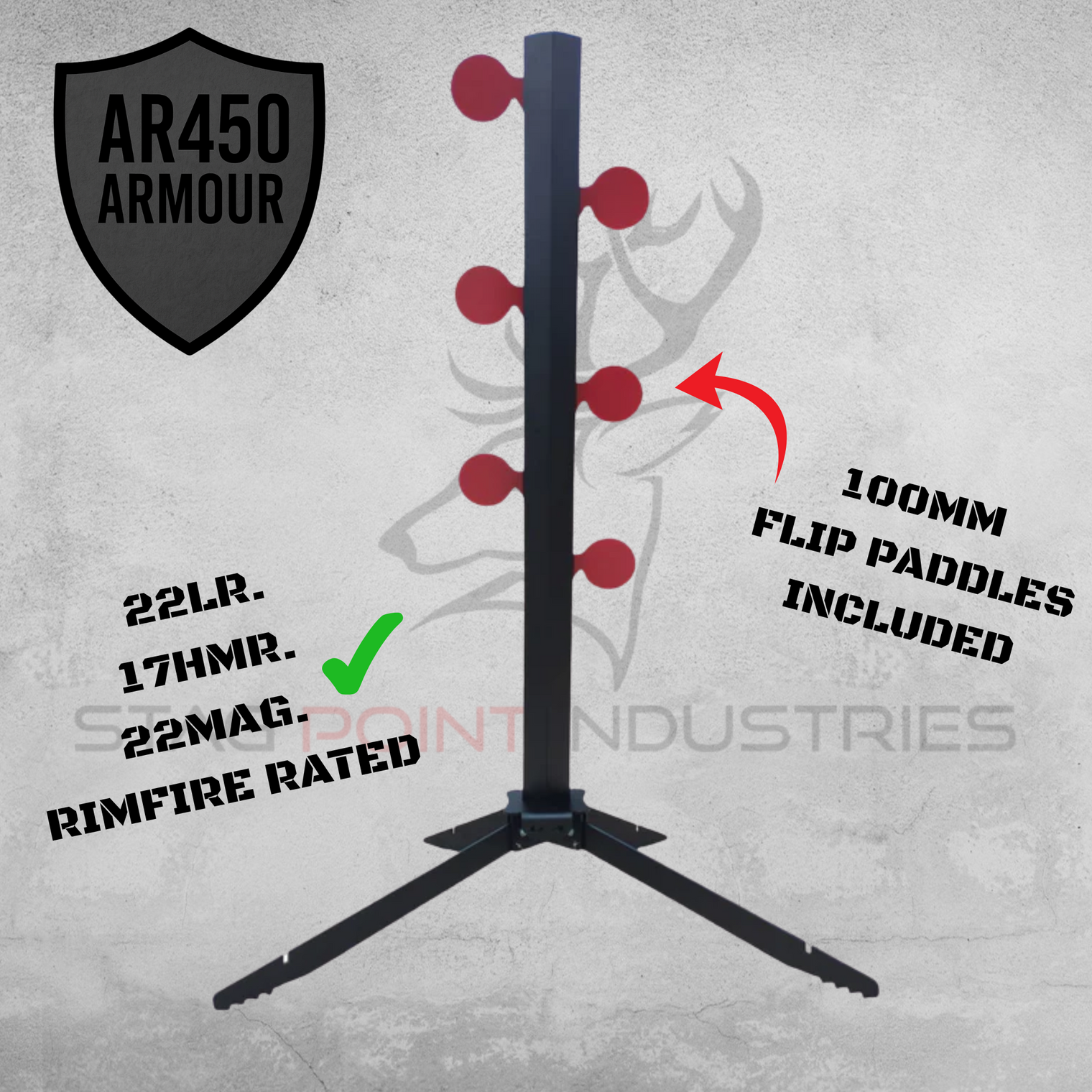

DT-Cadet Armoured Duelling Tree System Bundle – Rimfire Reactive Target Kit with REACK X-BASE & 6 AR450 Flip Paddles

The DT-Cadet Armoured Duelling Tree System Bundle is a complete rimfire reactive target kit designed for shooters using .22LR, .22 Magnum, and .17 HMR. Built with a 6mm AR450 armoured spine and 6 x precision-cut 100mm AR450 flip paddles, this upgraded system delivers greater durability, better splatter control, and closer engagement distances than the standard mild steel DT-Cadet bundle.

Ideal for training, competitions, and recreational shooting, the DT-Cadet Armoured provides a dynamic shooting experience. Each successful hit flips a paddle smoothly to the opposite side, helping improve speed, accuracy, and rapid target transitions during drills or friendly head-to-head matches.


Key Features

Complete Armoured Bundle – Includes DT-Cadet Armoured Duelling Tree, REACK X-BASE, and 6 x 100mm AR450 Flip Paddles
Optimised for Rimfire Calibres – Rated for .22LR, .22 Magnum & .17 HMR only
6mm AR450 Armoured Spine – Increases strength, reduces wear, and improves splatter control
AR450 Armour Flip Paddles – Longer-lasting performance while maintaining smooth, reliable flipping
Quick-Deploy REACK X-BASE – Collapsible stand with quick-release pins for fast setup and pack-down
Forward-Angled Target Spine – Safely deflects bullet fragments downward and extends paddle life
Upgradeable Options – Compatible with additional accessories and replacement paddle sets


REACK X-BASE Included

A fully collapsible, quick-deploy stand designed to support SPI duelling trees and other reactive target systems. The X-shaped leg structure provides excellent stability while remaining lightweight and portable.

Features:

  • Quick setup & pack-down with locking quick-release pins

  • Automatically secures the duelling tree spine at the correct lean angle

  • Compatible with multiple SPI target systems, including:

    • DT-Cadet Armoured Duelling Tree

    • DT-Cadet Mild Steel Duelling Tree

    • DT-Alpha Duelling Tree

    • Cadet & Alpha Drop Trees


Flip Paddle Details (Included – 6-Pack Only)

  • Size: 100mm round profile – standard for duelling tree setups

  • Material: 6mm AR450 Armour Steel – optimised for rimfire performance

  • Precision-Cut for Smooth Action: Balanced flipping motion for consistent operation

  • Tool-Free Installation: Drops directly into the DT-Cadet Armoured mounts for fast swaps

  • Improved Longevity vs Mild Steel: Better resistance to cratering, pitting, and surface wear
    Performance Note: While AR450 paddles are compatible with air rifles and CO₂ guns, low-powered airguns may not produce enough energy to flip paddles reliably. For best performance, use .22LR or high-powered air rifles capable of 700+ fps at impact.


Calibre Ratings & Safe Shooting Distances (DT-Cadet Armoured – 6mm AR450)

🛑 Handgun (Rimfire)

  • Angled Targets (16°–20°+): 10m+

  • Vertical Targets: 50m+

🛑 Rifle (Rimfire)

  • Angled Targets: 25m+

  • Vertical Targets: 50m+

Maximum Impact Energy: 300 ft-lbs
Maximum Velocity: 2,650 fps
Minimum Velocity: 700 fps (subsonic rounds under 1,100 fps or low-powered air rifles may not flip paddles reliably)

Not Rated For:

  • Centrefire calibres

  • High-velocity rimfire beyond rated limits

  • Ultra-low velocity rounds under 500 fps (increases ricochet risk)

📌 For more details, visit our [Safety, Distance & Calibre Ratings page].


What’s Included

  • 1 x DT-Cadet Armoured Duelling Tree Spine (6mm AR450 Armour Plate)

  • 1 x REACK X-BASE Stand (Collapsible, Quick-Deploy)

  • 1 x AR450 Armour Face Plate

  • 6 x 100mm AR450 Flip Paddles (6-Pack Only)

  • All Required Assembly Hardware


📸 Photo Disclaimer: Images may show additional accessories for reference only. This listing includes the DT-Cadet Armoured Duelling Tree with REACK X-BASE and 6 x 100mm AR450 Flip Paddles. Optional upgrades and accessories are sold separately.

🇦🇺 Proudly Made in Gippsland, Victoria, Australia
