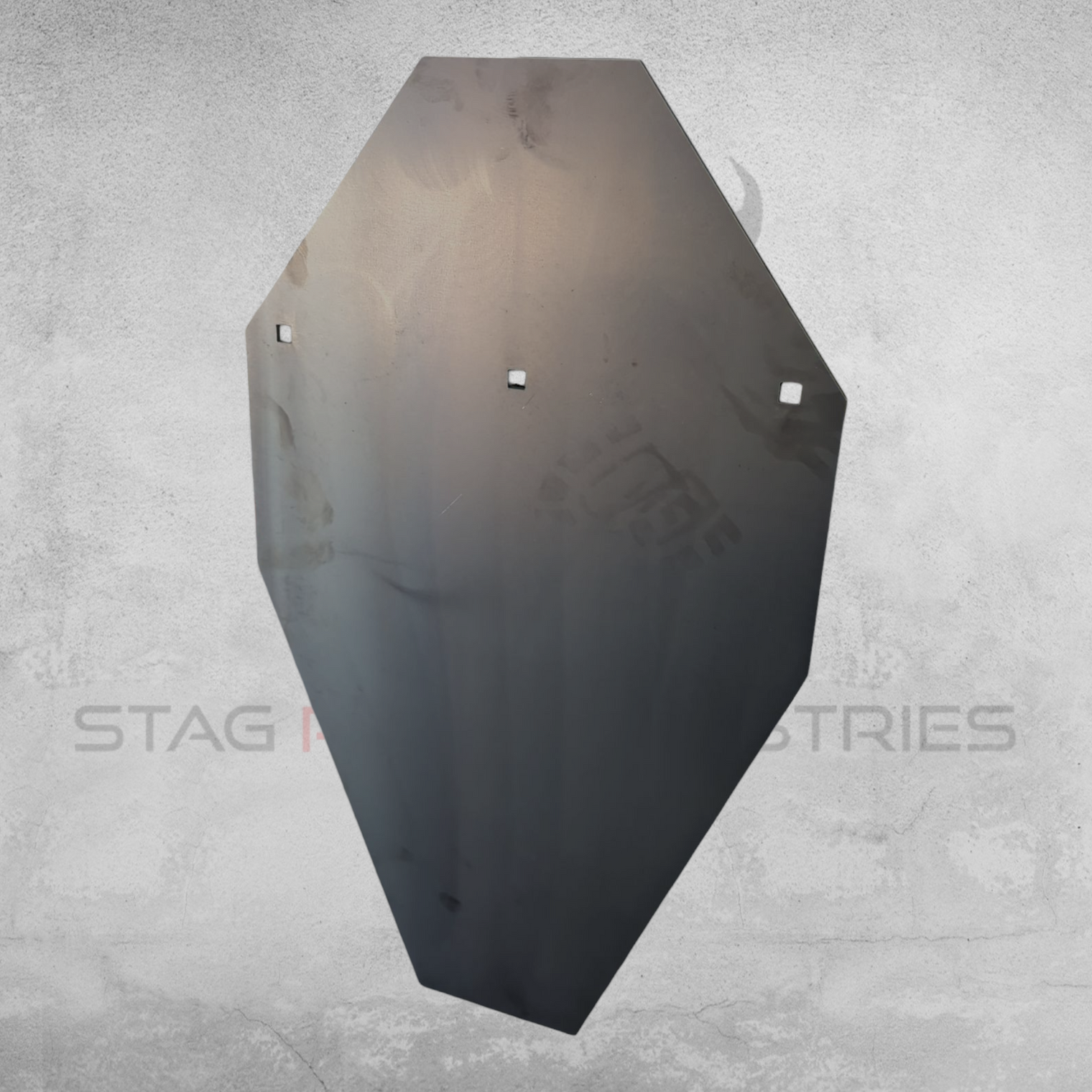

IPSC UNIVERSAL TARGET – 16MM AR500
Maximum-Durability IPSC Rifle Target for Magnum Rifle Calibres – Built for Extreme Long-Range Precision
The IPSC Universal Target (16mm AR500) is designed for high-energy magnum rifle calibres, offering unmatched durability for long-range competitive shooting and training. Measuring 750mm x 450mm, this large-format IPSC silhouette is commonly used in 3-Gun and Multi-Gun competitions, where shooters engage long-range steel targets under demanding conditions. Built from 16mm AR500 armour plate, this target is engineered to withstand repeated impacts from high-powered calibres like .300 Win Mag, .338 Lapua, and similar long-range rounds.
📌 True IPSC Dimensions – Profile cut to actual scoring area, excluding the non-scoring border
📌 Target Size: 750mm x 450mm (IPSC Universal Rifle Target)
📌 For extreme rifle durability, this is the thickest IPSC target in our range
Key Features:
✔ Designed for Magnum Rifle Use – Rated for long-range precision shooting with calibres up to .338 Lapua
✔ Official IPSC Universal Profile – Provides a realistic silhouette for competition and training
✔ Material: 16mm AR500 Armor Plate – Maximum strength for sustained high-impact use
✔ Mounting: Features three M10 mounting holes, allowing for compatibility with:
- 70X35 Delta System
- Star-Delta System
- Gong Frame Bracket Kits
-
90x45 Fixed Gong Frame Bracket Kits
✔ Heavy-Duty Target Mounting: Best suited for fixed steel frame gong stands
✔ Raw Finish: Supplied uncoated – powder-coated images shown for reference only
⚠ NOT COMPATIBLE WITH POST-TOP OR ZERO-DELTA SYSTEMS
Due to its size and weight, this target is not recommended for use with:
🚫 90x35 Post Top Target Mount
🚫 Star Picket Post Top Target Mount
🚫 Zero-Delta Portable Gong Target Stand (even with extended legs)
For maximum stability and safety, we highly recommend using a 70x35 Delta System, Star-Delta System, or Fixed Gong Frame Bracket Kits.
Safety & Shooting Distances:
✔ Recommended Minimum Shooting Distances:
-
Magnum Rifles (Up to .300 Win Mag, .338 Lapua, and similar calibres):
- Angled (16° to 20°+): 150 meters+
-
Vertical (Perpendicular): 150 meters+
✔ Maximum Energy: 4,500 ft-lbs+
✔ Maximum Velocity: 2,850 fps at impact
✔ Minimum Velocity: 750 fps at impact
⚠ Important Notes:
- Built for long-range engagements – not recommended for close-range use
- Suitable for situations where monolithic turned solid projectiles (copper/brass) are being used
- Not rated for calibres exceeding listed impact velocities or energy limits
📌 For assembly instructions, visit our Instruction Manuals page
📌 For safety guidelines and calibre ratings, visit our Safety, Distance & Calibre Ratings page

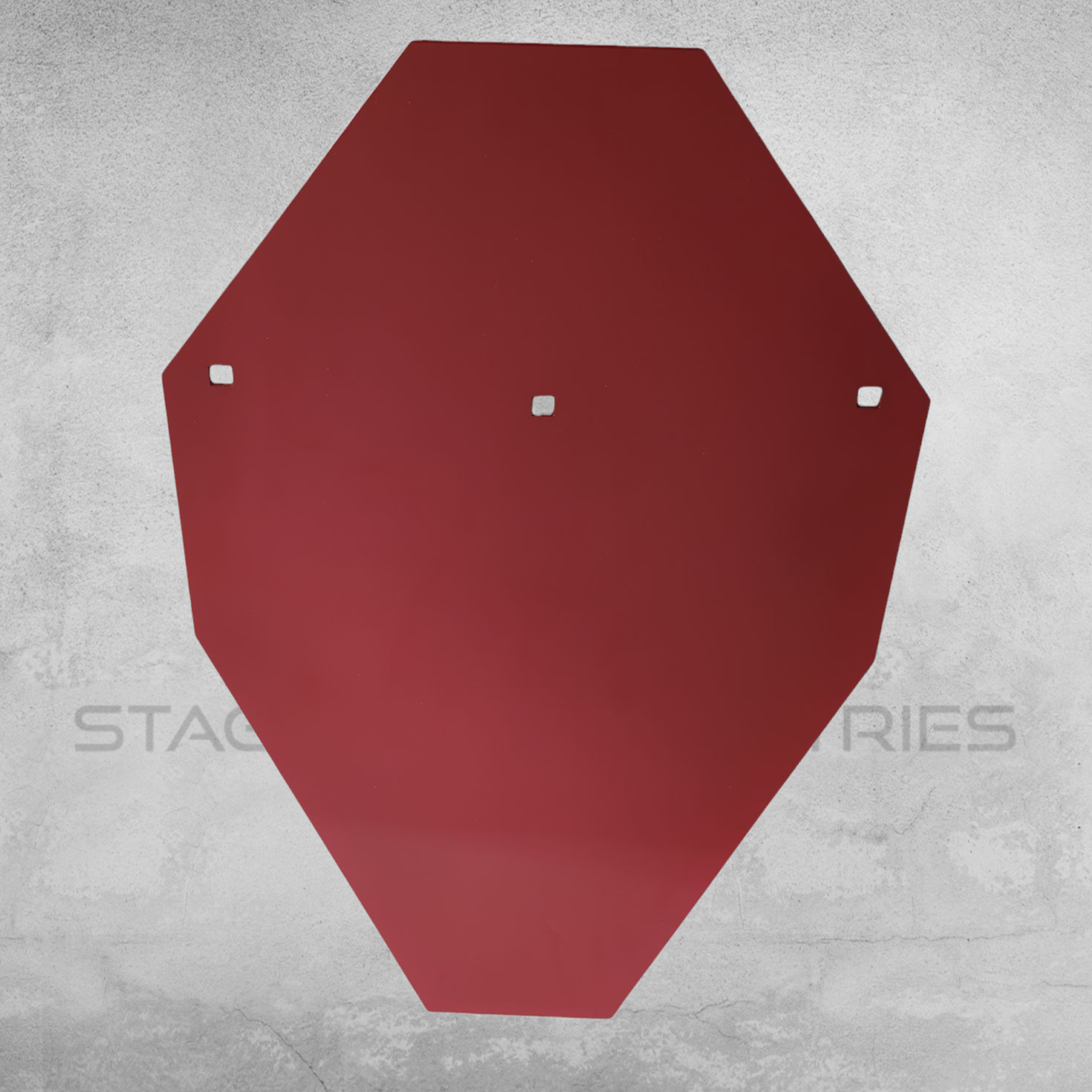

📸 Photo Disclaimer: Images may show the target in powder-coated finish for reference, but the item is supplied raw/uncoated
🇦🇺 Proudly Made in Gippsland, Victoria, Australia
