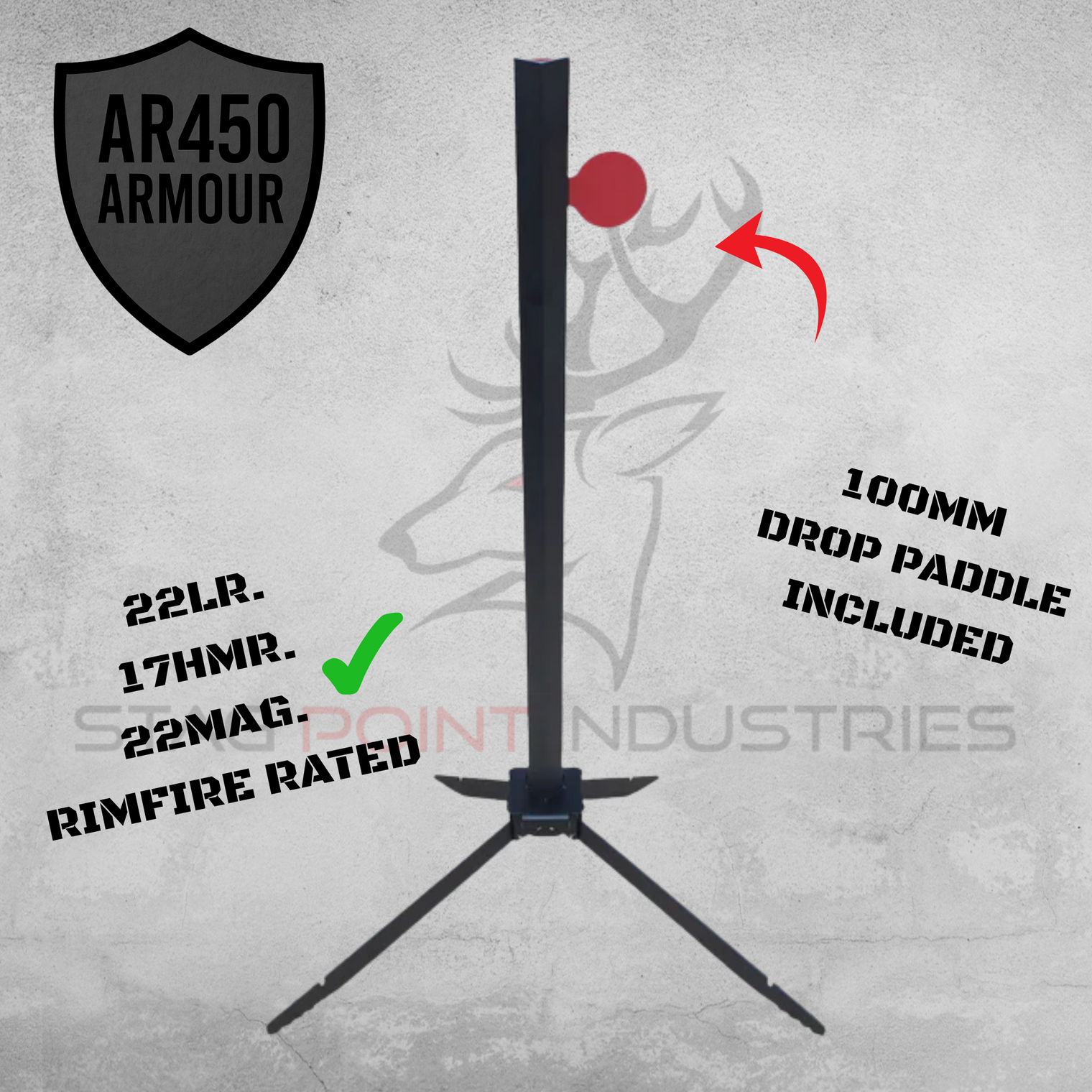

Cadet Drop-Tree System Bundle (Armoured – AR450) – Rimfire Reactive Training with REACK X-BASE and x1 Drop tree flip paddle

Reactive Training System for .22LR, .22 Magnum & .17 HMR
Includes REACK X-BASE + 1 × 100 mm AR450 Drop Paddle

Product Overview

The Cadet Drop-Tree (Armoured – AR450) Bundle is an upgraded, complete reactive training system designed for shooters running .22LR, .22 Magnum, and .17 HMR. Built with a fully integrated 6 mm AR450 armour plate spine and matching AR450 armour face plate, this bundle delivers enhanced durability, safer splatter control, and closer target engagement distances compared to the unarmoured mild steel version.

Unlike a duelling tree, which flips paddles side-to-side, the Drop-Tree’s tubular track system forces the paddle to descend vertically, flipping side-to-side with each hit. Each successful shot drops the paddle to the next position, providing nine unique target positions before ejecting on the final shot.

By forcing shooters to track downward rather than relying on recoil to “ride” back up the tree, the Cadet Drop-Tree develops better sight tracking, improved accuracy, and faster target transitions, making it perfect for serious skill development and competition practice.

Key Features

✔ Fully Armoured AR450 Spine & Face Plate – Integrated 6 mm AR450 armour provides excellent impact resistance, safety, and system longevity.
✔ Includes REACK X-BASE Stand – A collapsible, quick-deploy stand designed for maximum stability and portability.
✔ Includes 1 × 100 mm AR450 Drop Paddle – Perfectly matched paddle for durability and reliable flipping action.
✔ 9-Position Drop & Flip Mechanism – Paddle descends smoothly through nine positions before ejection.
✔ Closer Target Engagement – AR450 armour allows shorter minimum distances than mild steel models.
✔ Optimised for Rimfire Calibres – Ideal for .22LR, .22 Magnum, and .17 HMR training.
✔ Black Powder-Coated Finish – Added weather resistance and a premium finish.
✔ Compatible Paddle Options – Supports 100 mm 6 mm AR450 paddles for optimal performance or mild steel paddles for budget setups.

Included REACK X-BASE Stand

The included REACK X-BASE is a collapsible, heavy-duty, quick-deploy stand engineered for portable use and excellent stability in any terrain.

Key Features:

• Quick-Deploy System – Fast assembly and takedown using quick-release locking pins.

• Heavy-Duty Load Capacity – Designed to handle high-volume shooting with exceptional stability.

• Lock-In Floor Plate – Automatically sets the correct lean angle for consistent paddle action.

• Multi-System Compatible – Also works with:
  • DT-Cadet Duelling Tree
  • DT-Alpha Duelling Tree
  • Cadet Drop-Tree
  • Cadet Armoured Drop-Tree
  • Alpha Drop-Tree

Calibre Ratings & Shooting Distances (6 mm AR450 Armour)

🛑 Rimfire Handgun Calibres (.22LR, .22 Magnum, .17 HMR)

• Angled Targets (16° – 20°+): 10 m+

• Vertical Targets: 50 m+

🛑 Rimfire Rifle Calibres (.22LR, .22 Magnum, .17 HMR)

• Angled Targets: 25 m+

• Vertical Targets: 50 m+

🛑 Shotgun Calibres (.410, 12 Gauge – Birdshot Only)

• Angled Targets (16° – 20°+): 15 m+

• Vertical Targets: 20 m+

Velocity & Energy Ratings:

• Maximum Energy: 300 ft-lbs

• Maximum Velocity: 2,650 fps

• Minimum Velocity: 700 fps

⚠ Important Notes:

• Not rated for centrefire rifle calibres.

• Rounds below 1,100 fps may not reliably flip paddles.

• Rounds slower than 500 fps increase ricochet risk, especially with soft lead or copper-plated rounds.

What’s Included

• 1 × Cadet Drop-Tree Spine & Track Assembly (6 mm AR450 with integrated armour face plate)

• 1 × AR450 Armour Face Plate (protective front cover)

• 1 × REACK X-BASE Stand (collapsible, quick-deploy)

• 1 × 100 mm AR450 Drop Paddle (included)

• All Required Assembly Hardware

Maintenance & Track Longevity

To maximise smooth performance and lifespan:

• Lubricate Track periodically using WD-40, INOX, or Goss Lube (avoid grease-based products).

• Inspect Stop Points occasionally and file down any burrs or ledges to maintain smooth paddle descent.

• Monitor Powder-Coat Wear – Chipping is normal during break-in and doesn’t affect function.

• Replace Spine Assembly when stop points wear excessively and the paddle fails to reset reliably.

Photo Disclaimer

Images may show additional components or accessories for reference.
This bundle includes:
Cadet Drop-Tree (Armoured) + REACK X-BASE + 1 × 100 mm AR450 Drop Paddle.

📌 Extra paddles and other accessories sold separately.

🇦🇺 Proudly Made in Gippsland, Victoria, Australia
