IPSC Activator Cable Redirect Pulley Kit
IPSC Activator Cable Redirect Pulley Kit
Heavy-Duty Cable Redirect System for SPI Activation & Linking Cable Setups
The SPI Activator Cable Redirect Pulley Kit is a heavy-duty cable redirection system designed for IPSC-style activation systems, linking cable setups, reactive target stages, and mechanical target activation systems. Designed to simplify cable routing and directional changes, this pulley system allows activation cables to be redirected smoothly around corners, obstacles, props, and stage structures while maintaining reliable target activation performance.

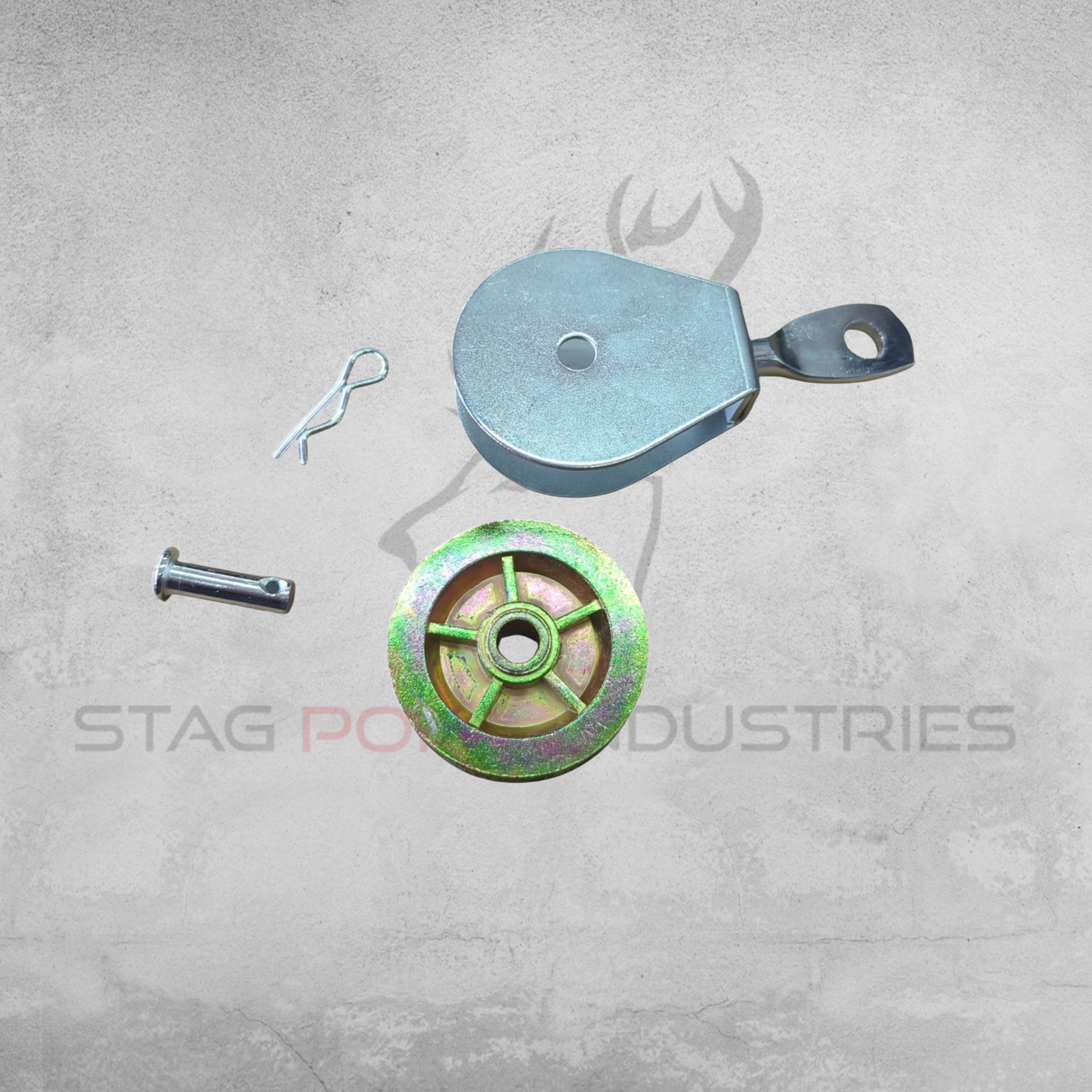

The pulley assembly features a removable 50mm pulley wheel secured using a split pin design. This allows the pulley wheel to be removed from the housing without needing to feed the activation cable through from the cable end. Simply remove the split pin, lift the pulley wheel out, position the cable into the housing, then reinstall the pulley wheel and split pin.
This design greatly simplifies setup, stage changes, and field servicing compared to fixed pulley systems.
The pulley assembly is zinc plated for corrosion resistance and includes a nylon washer for smooth pulley rotation under load.
Dropdown Options:
📌 Pulley Kit Only (NO STAKE)
📌 Stake & Pulley Kit

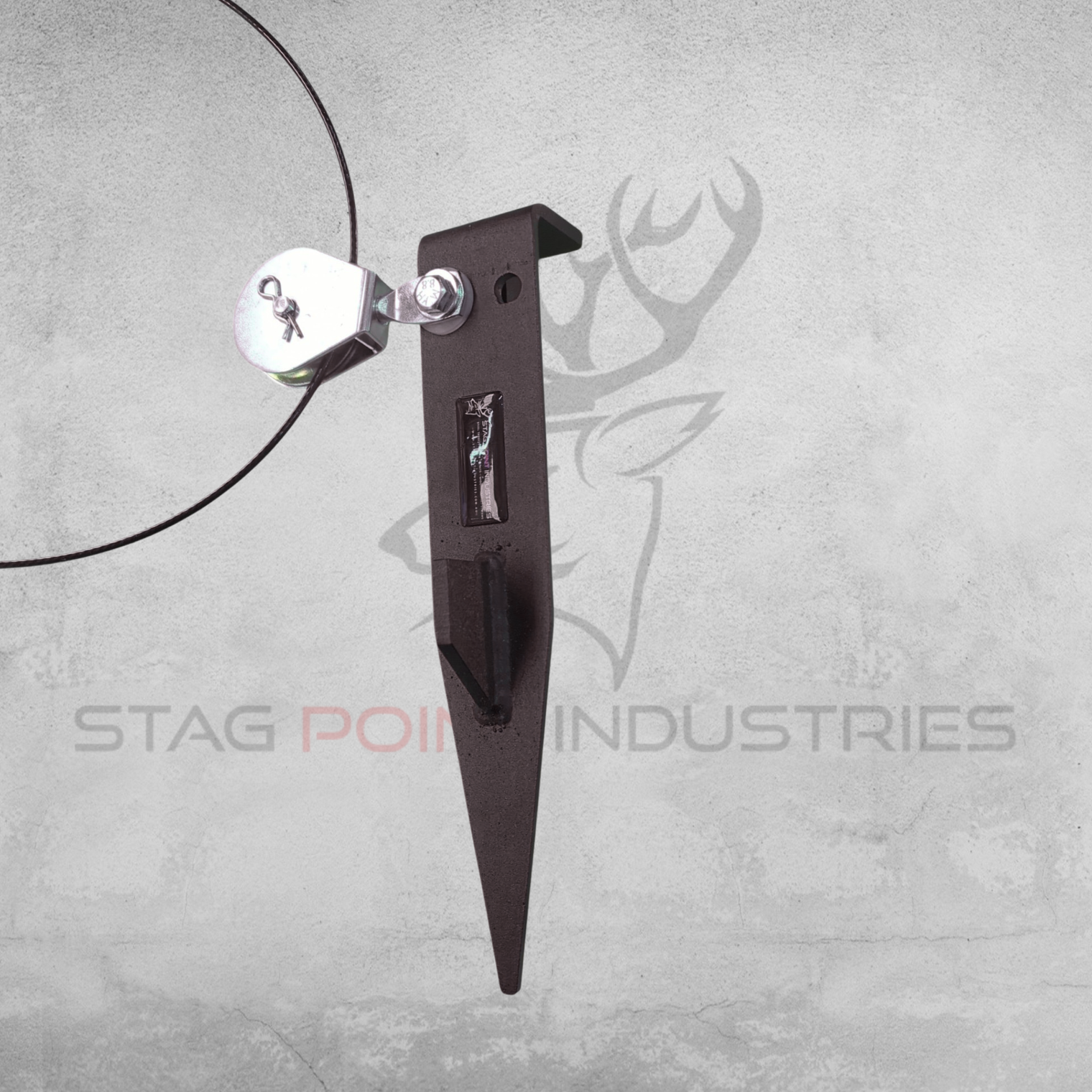

The Stake & Pulley Kit includes one of our heavy-duty Stake & Shoot ground stakes fitted with the pulley assembly, allowing firm and stable ground mounting for cable redirection setups.
If you already own one of our Stake & Shoot stakes or similar mounting systems, the pulley assembly can also be mounted directly onto existing setups using the supplied mounting hardware.
Key Features:
✔ Heavy-duty 50mm pulley system
✔ Removable pulley wheel design
✔ Split pin retained pulley assembly
✔ No need to feed activation cable through from cable ends
✔ Zinc plated for corrosion resistance
✔ Includes nylon washer for smooth pulley rotation

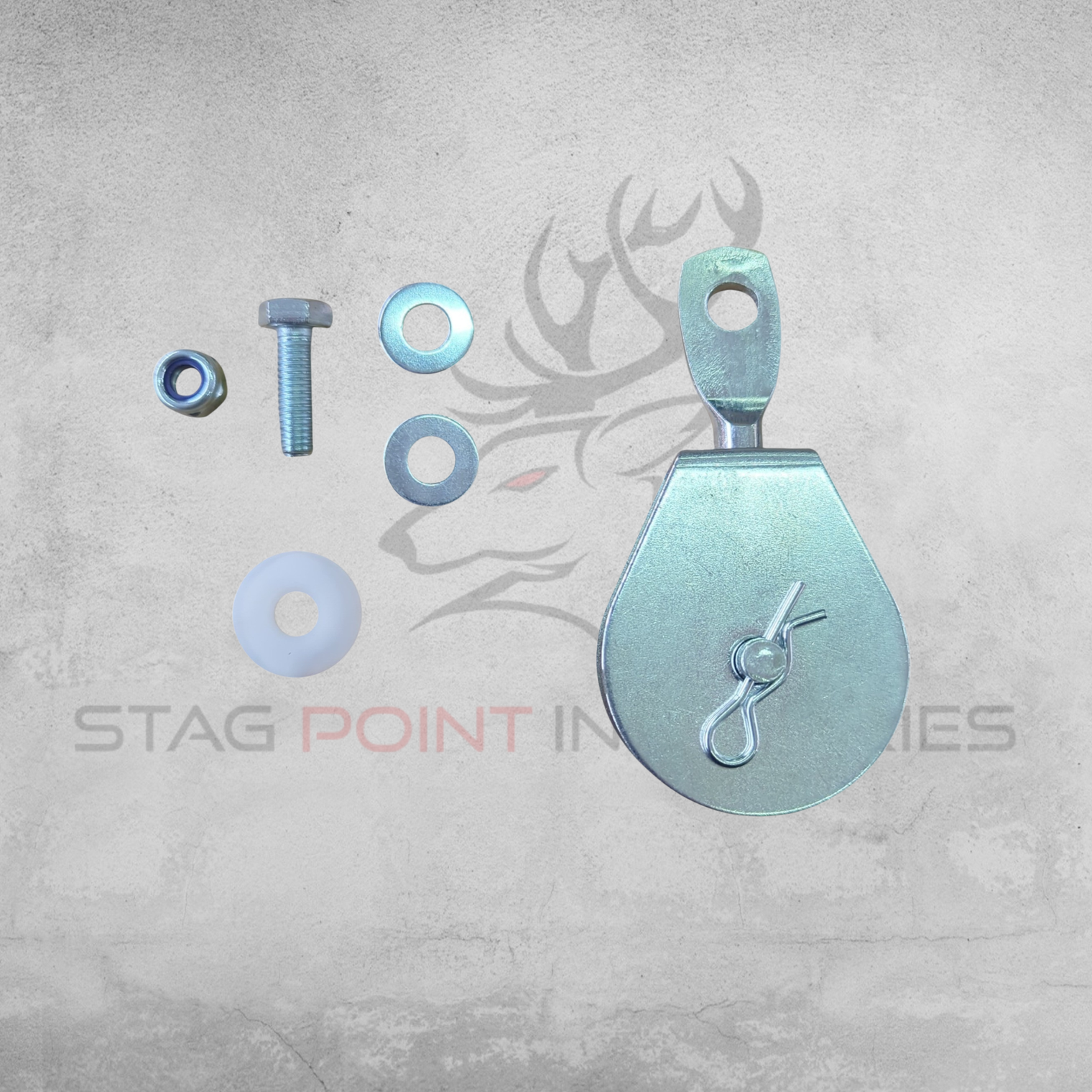

✔ Includes mounting bolt and hardware
✔ Suitable for IPSC activation and linking cable systems
✔ Excellent for redirecting pull cables around props and obstacles
✔ Compatible with SPI mechanical activation systems
✔ Stake & Pulley Kit option available
Pulley Specifications:
📌 Pulley Diameter: 50mm
📌 Working Load Rating: 200kg
📌 Breaking Weight: 450kg
Stake & Pulley Kit Information:
The optional Stake & Pulley Kit provides a stable ground-mounted solution for redirecting activation cables in practical shooting stages and reactive target systems.
The stake utilised is based on our heavy-duty Stake & Shoot ground stake system and is designed for firm ground penetration and reliable positioning during repeated target activations.
We recommend using heavy-duty stakes when running longer activation cable systems or higher-tension mechanical activation setups.
Compatibility:
Designed for use with:
• SPI Linking Cable Systems
• SPI Activator Cable Systems
• SPI Mechanical Target Activators
• IPSC Stage Activation Systems
• Pull Cord Systems
• Reactive Target Linkage Systems
⚠ Important Notes:
📌 This listing is for the pulley system only unless the Stake & Pulley Kit option is selected.
📌 Activation cables sold separately unless otherwise stated.
📌 Photos may show additional accessories and activation systems for reference purposes only.
📌 Suitable mounting methods may vary depending on terrain and stage setup requirements.
📌 For full safety guidelines and product information, visit our Safety, Distance & Calibre Ratings page.
