Duel-Master Final Paddle Target – Full Kit (6mm AR450 Face Plate + x2 Flip Paddle Brackets)

(For 90x35 Post Top Target Mount – Complete Add-On Kit, Just Add Paddles)
(Full kit designed for users who already own the 90x35 Post Top Target Mount)

Overview

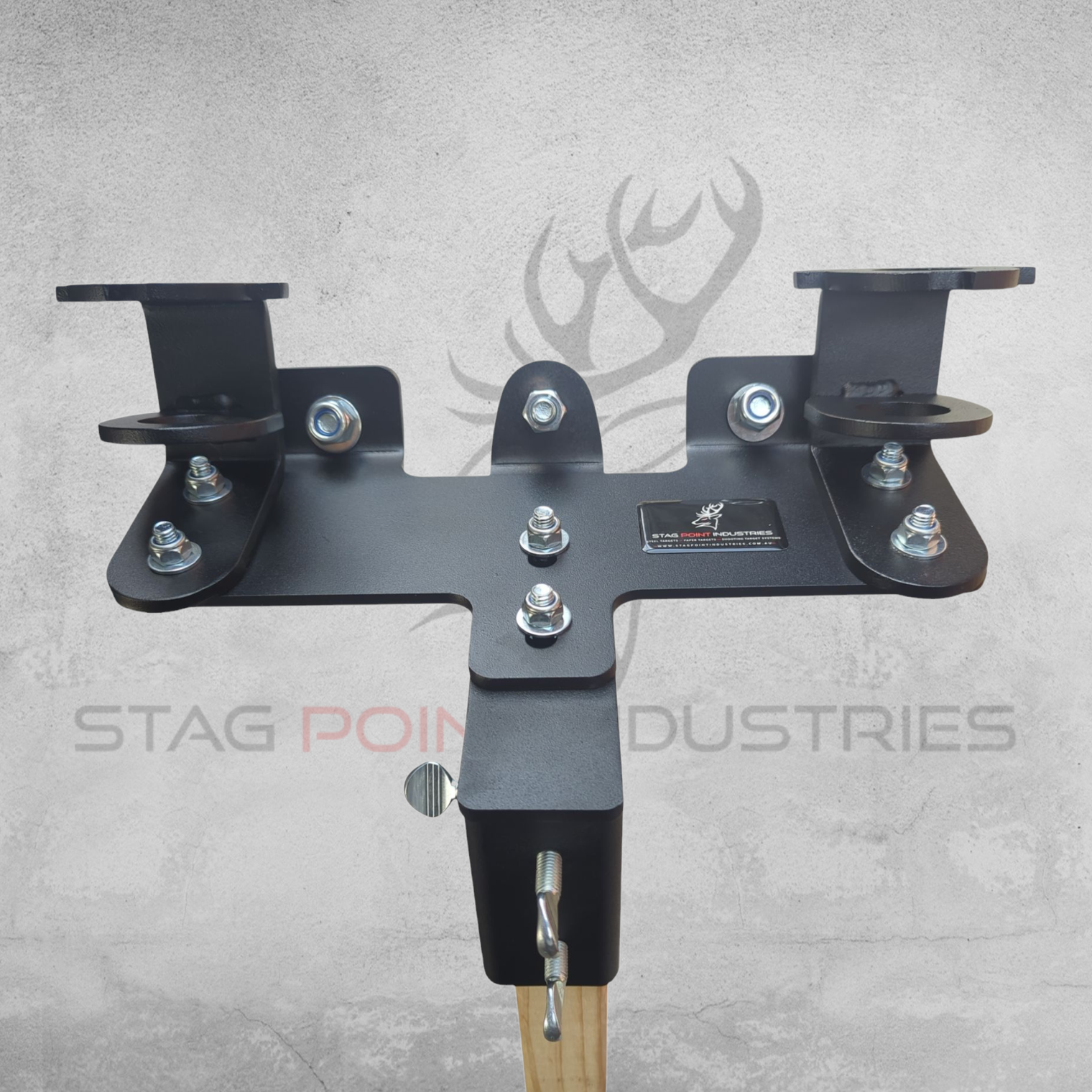

The Duel-Master Final Paddle Target – Full Kit is a complete duelling-style reactive target system designed for rimfire shooters seeking a more durable, abrasion-resistant setup than mild steel. This kit includes a powder-coated steel base plate, a raw, uncoated 6mm AR450 armour steel face plate, and x2 Post Top Flip Paddle Brackets — creating a fully functional flip-paddle system that bolts directly onto your 90x35 Post Top Target Mount (sold separately).

Perfect for cowboy-action matches, reactive speed drills, and rimfire training, this setup is optimised for shooters using .22LR, .22 Magnum, or .17 HMR where increased durability is required.

How It Works

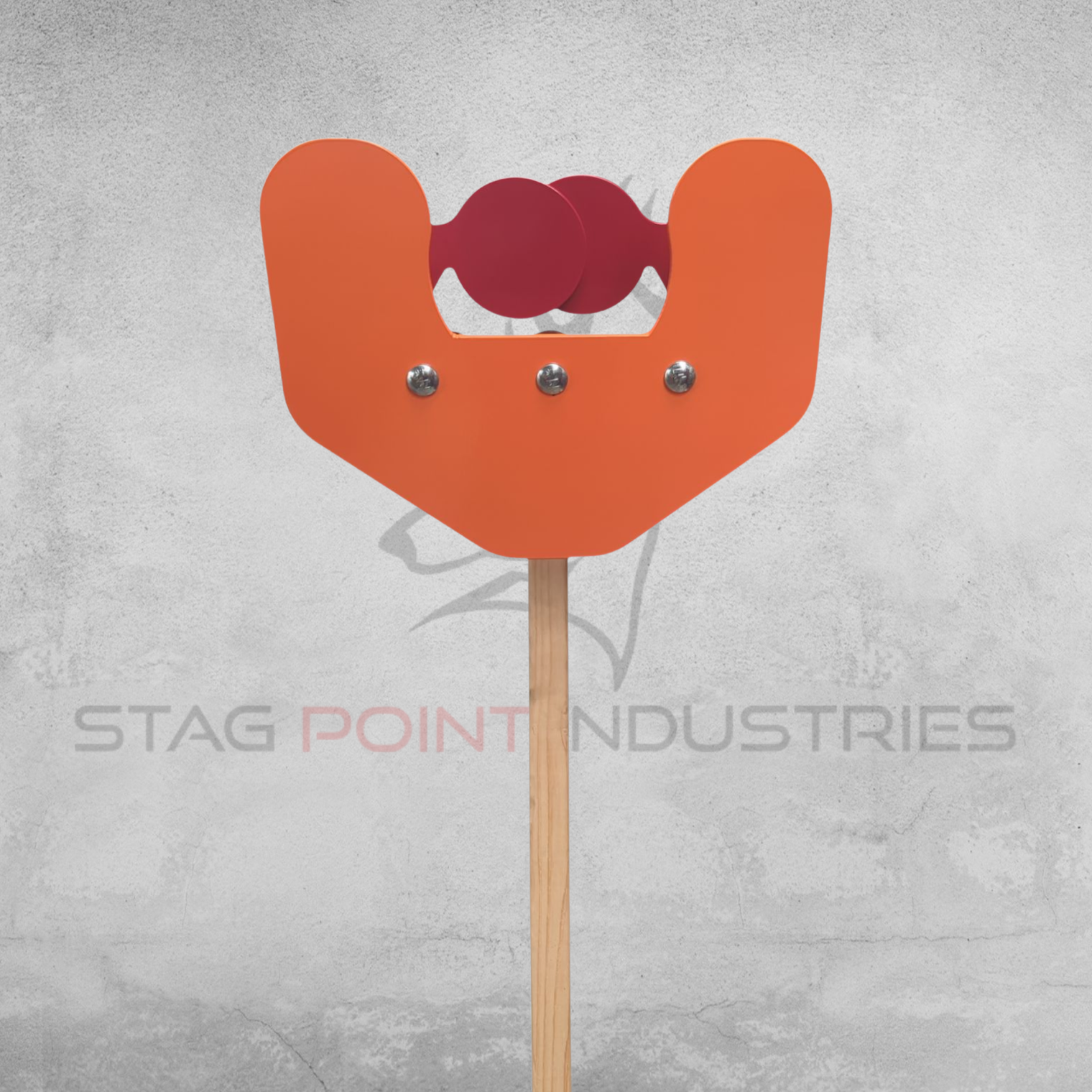

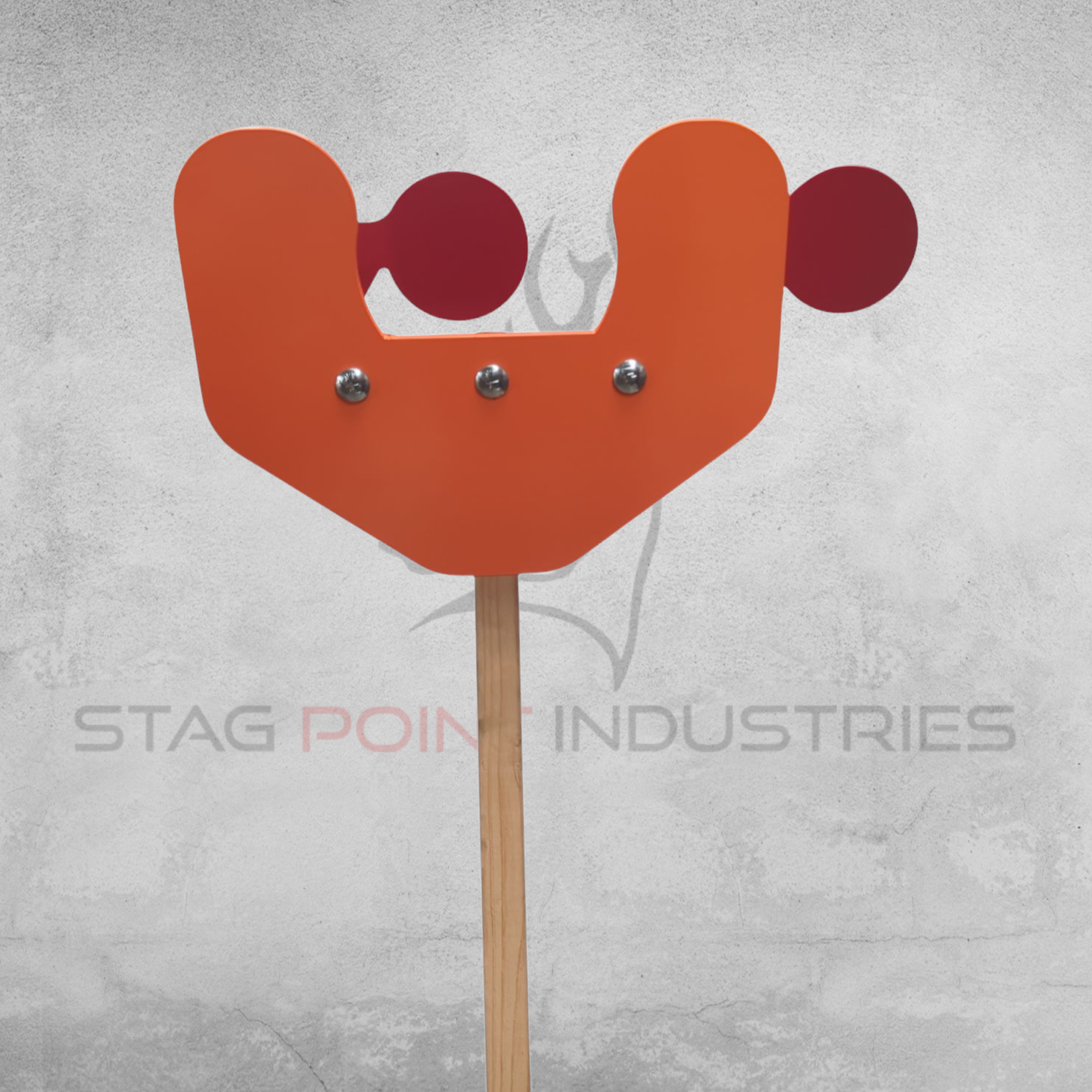

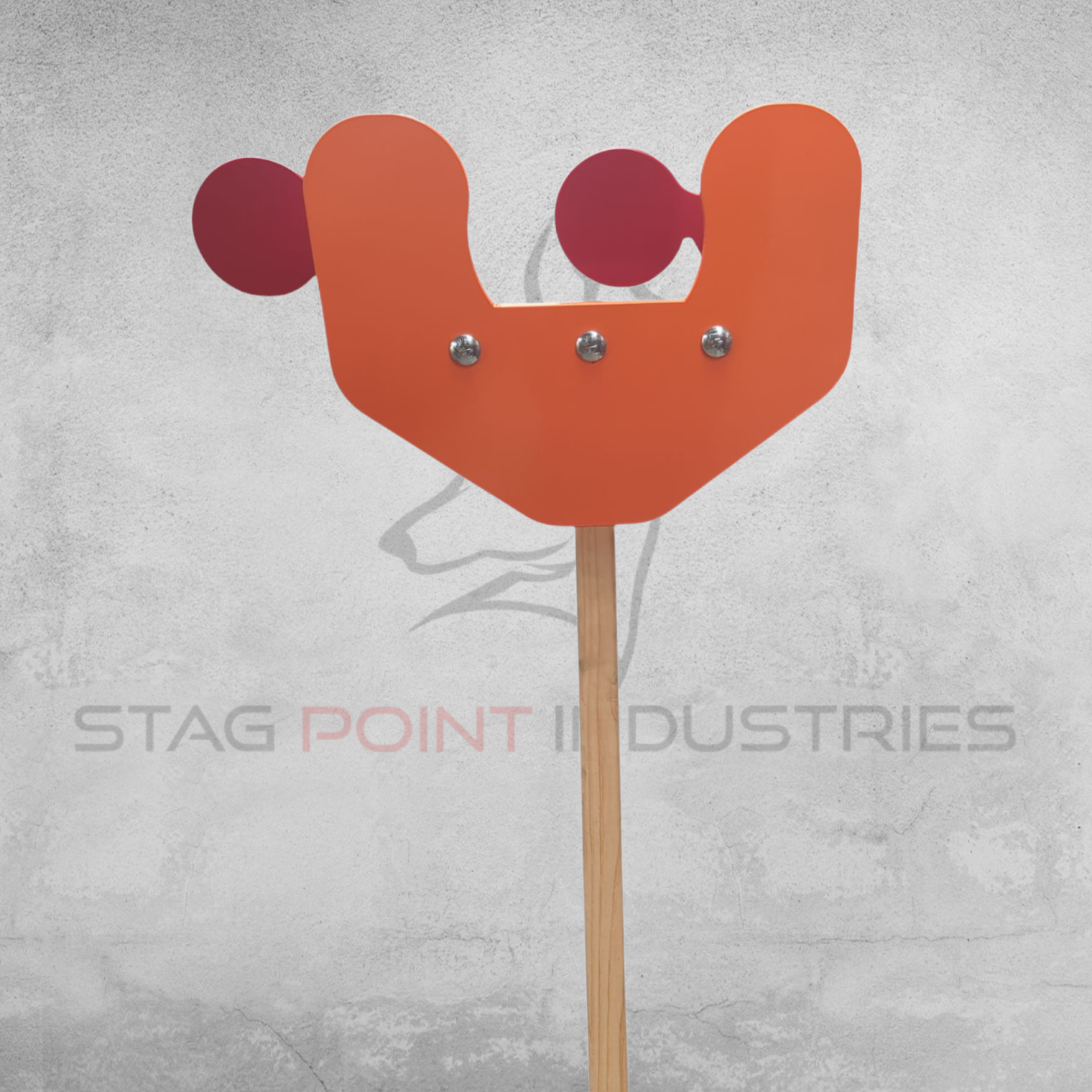

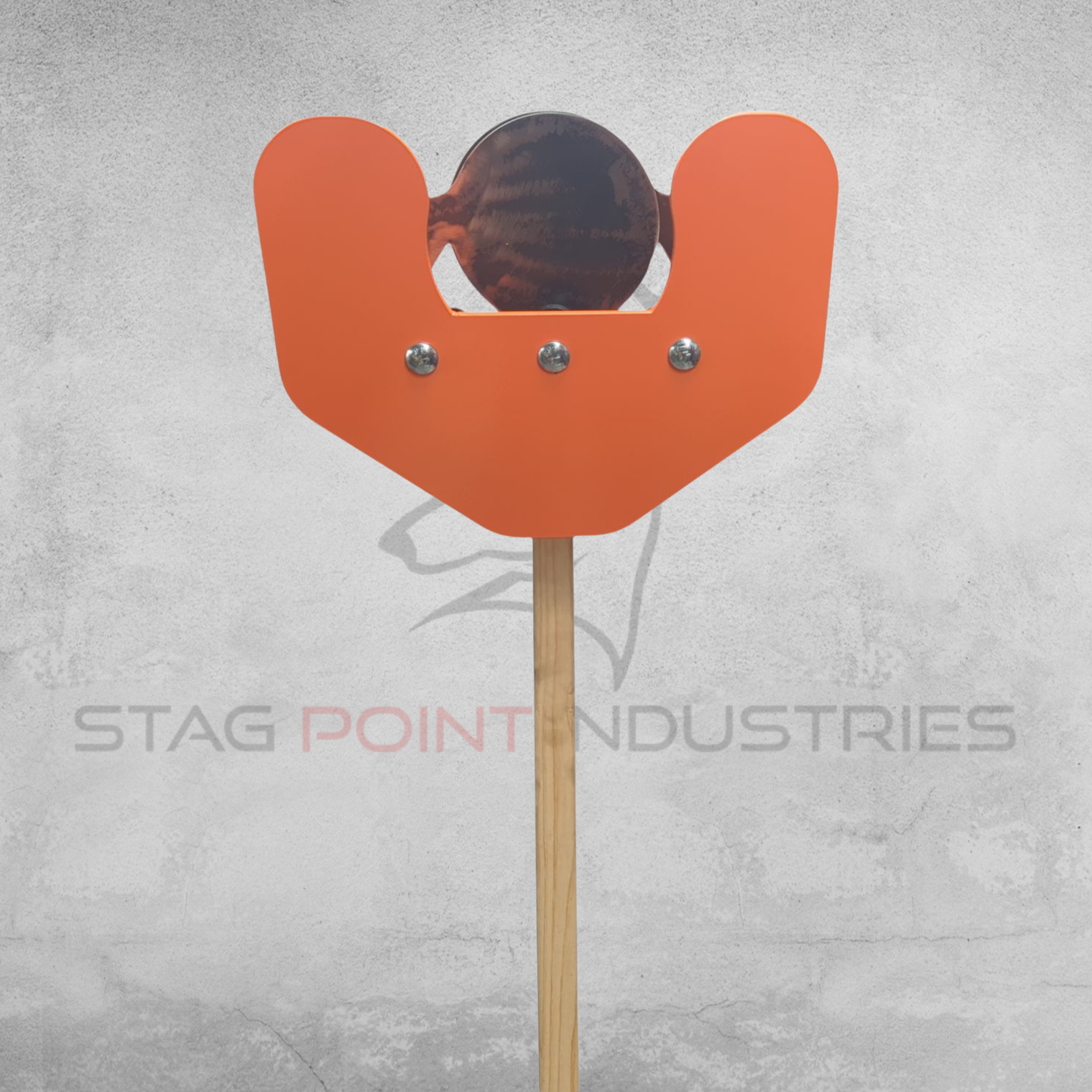

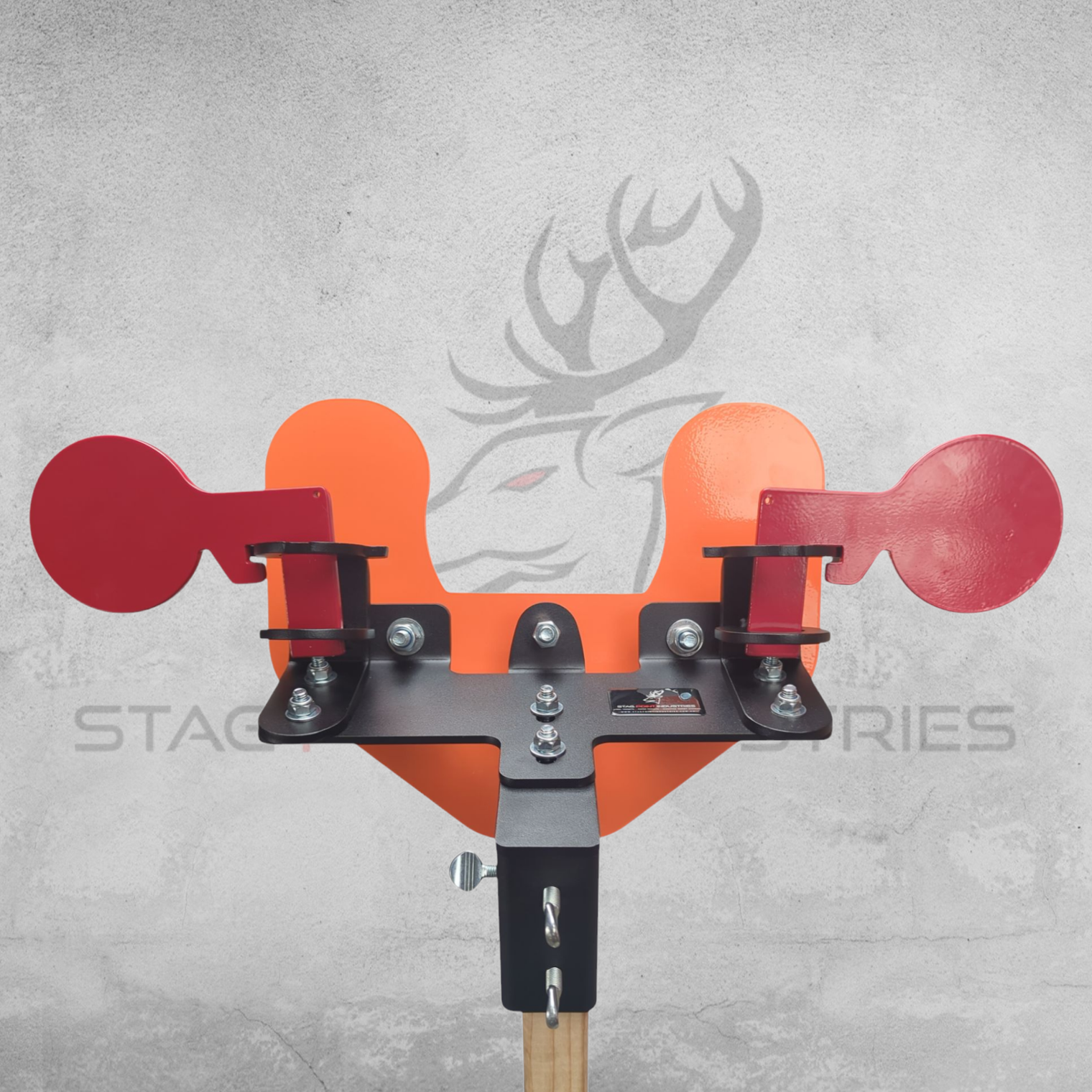

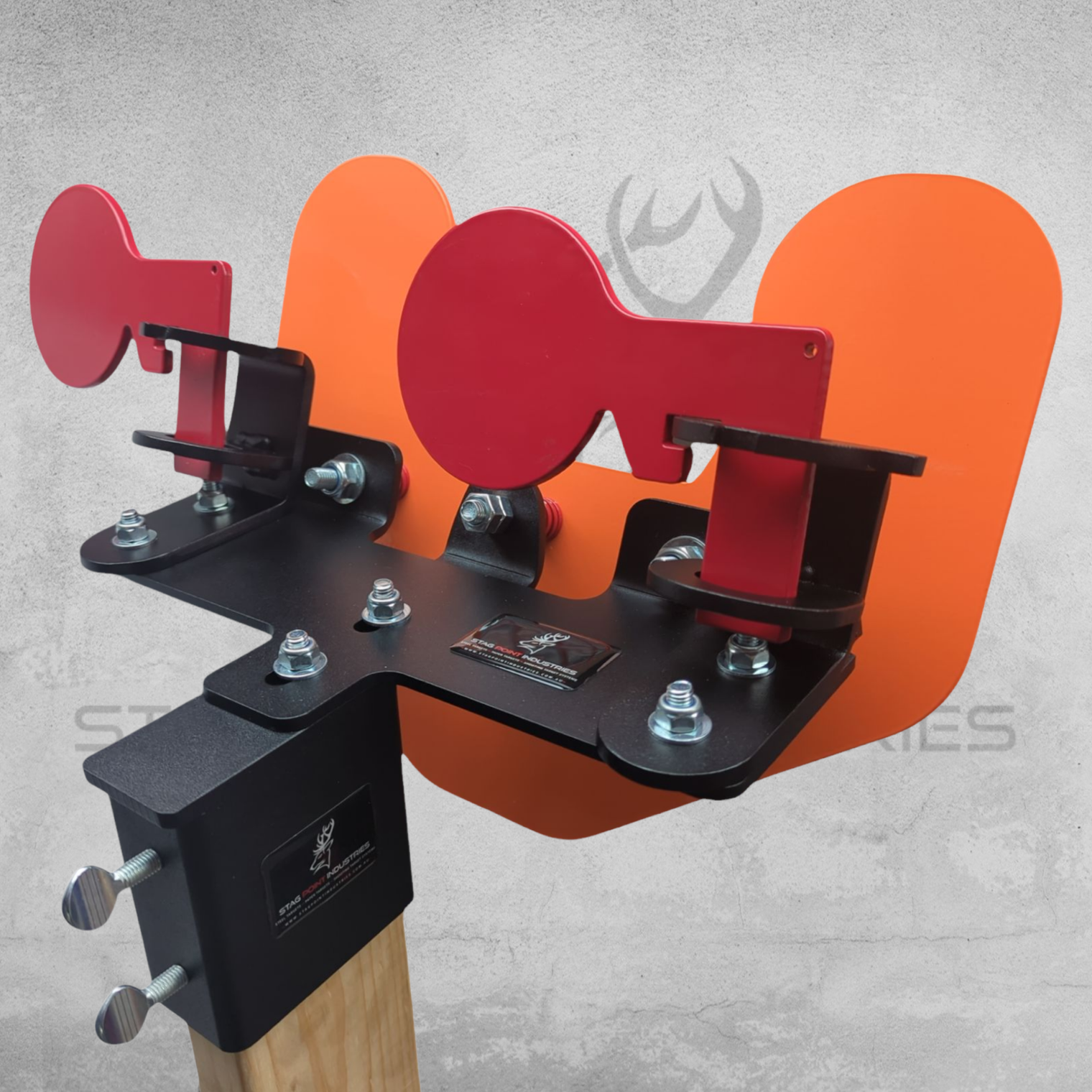

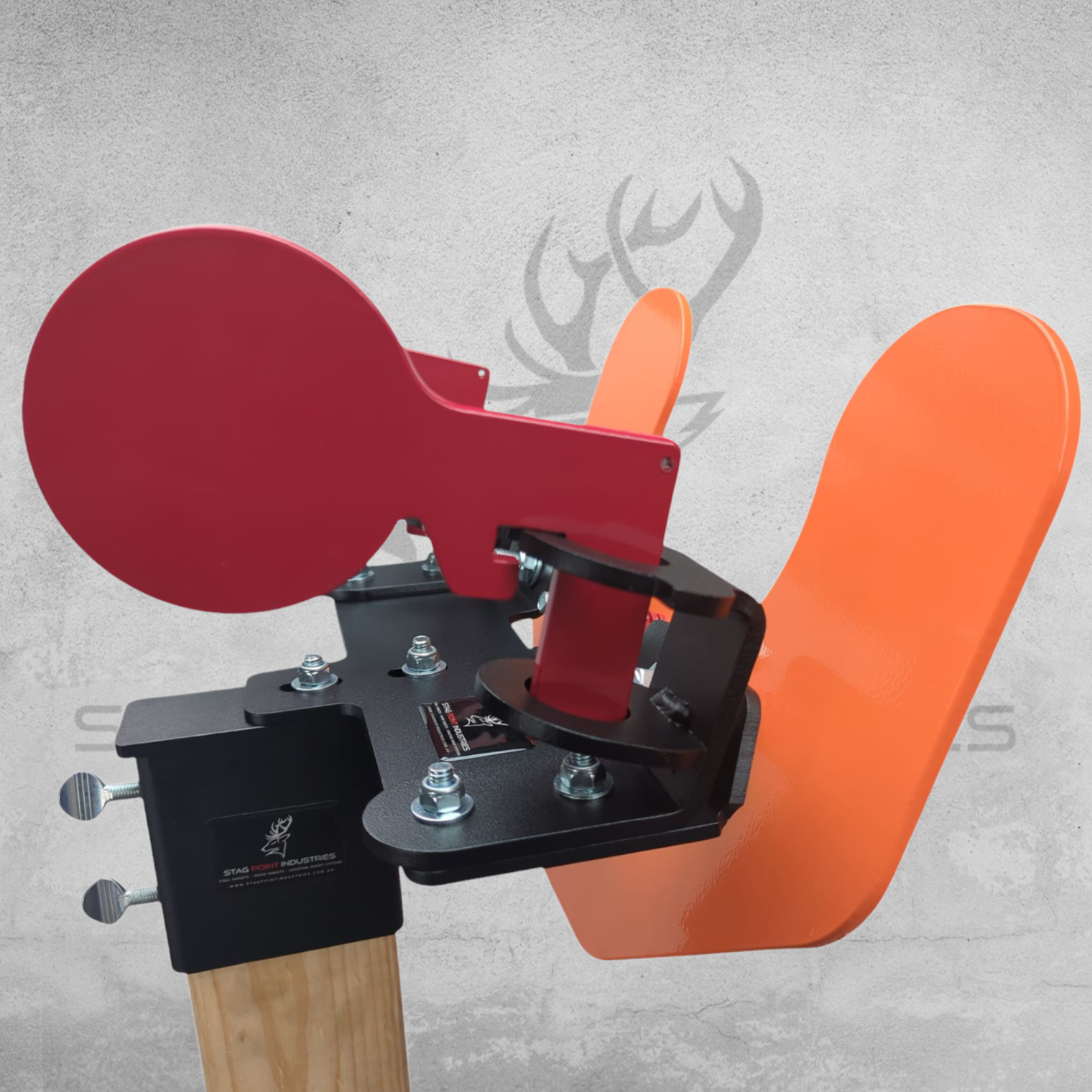

Both paddles start in the outward-facing position. In a duel, Shooter A engages the left paddle, and Shooter B engages the right. When hit, each paddle flips inward toward the centre. The first paddle to flip sits in front, providing instant visual confirmation of who hit first — making it ideal for head-to-head matches and fast-paced shooting stages.

Key Features

✔ Complete Reactive Paddle System – Includes base plate, face plate, and x2 Post Top Flip Paddle Brackets
✔ 6mm AR450 Armour Steel Face Plate – Raw/uncoated, rated for .22LR, .22 Magnum, and .17 HMR

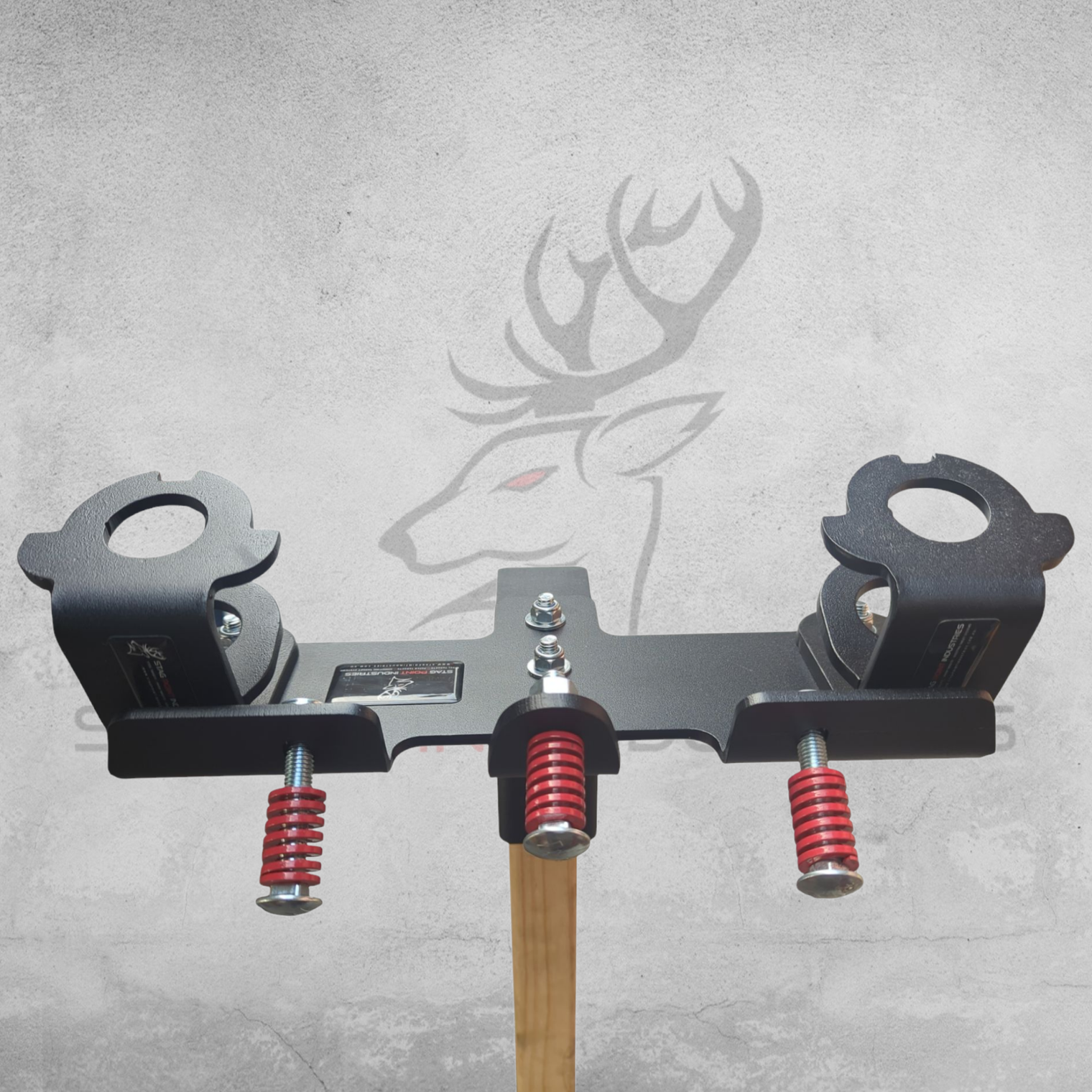

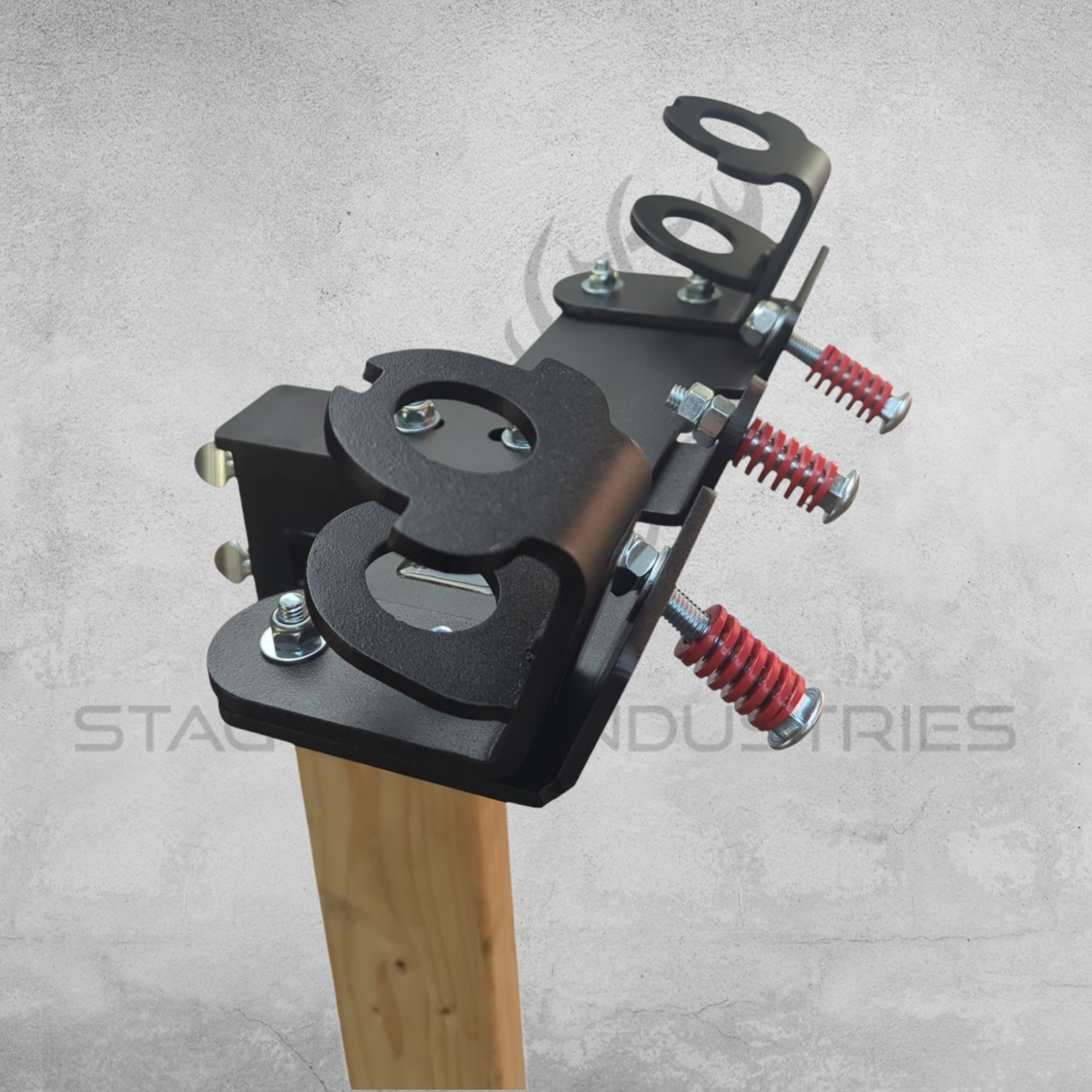

✔ Spring Recoil System – Reduces stress on hardware, increasing component lifespan
✔ Powder-Coated Base Plate – Durable black finish with zinc-coated hardware for outdoor use
✔ Lock-In Bracket Design – Ensures smooth, balanced paddle flipping and reliable resets
✔ Compact & Modular – Integrates with SPI’s existing modular target systems

Recommended Paddle Sizes

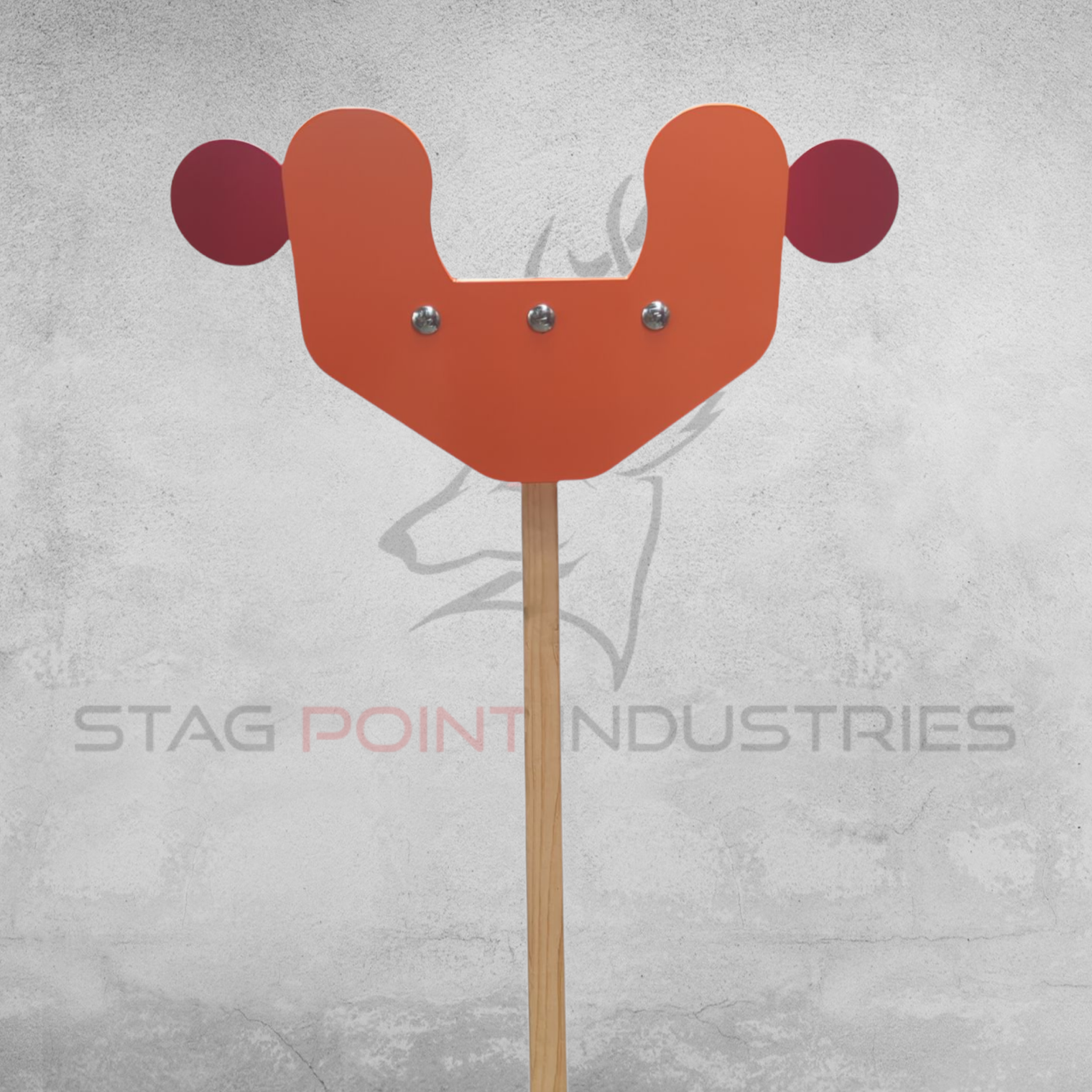

✅ Best: 100mm paddles – reliable flipping with .22LR and excellent visibility

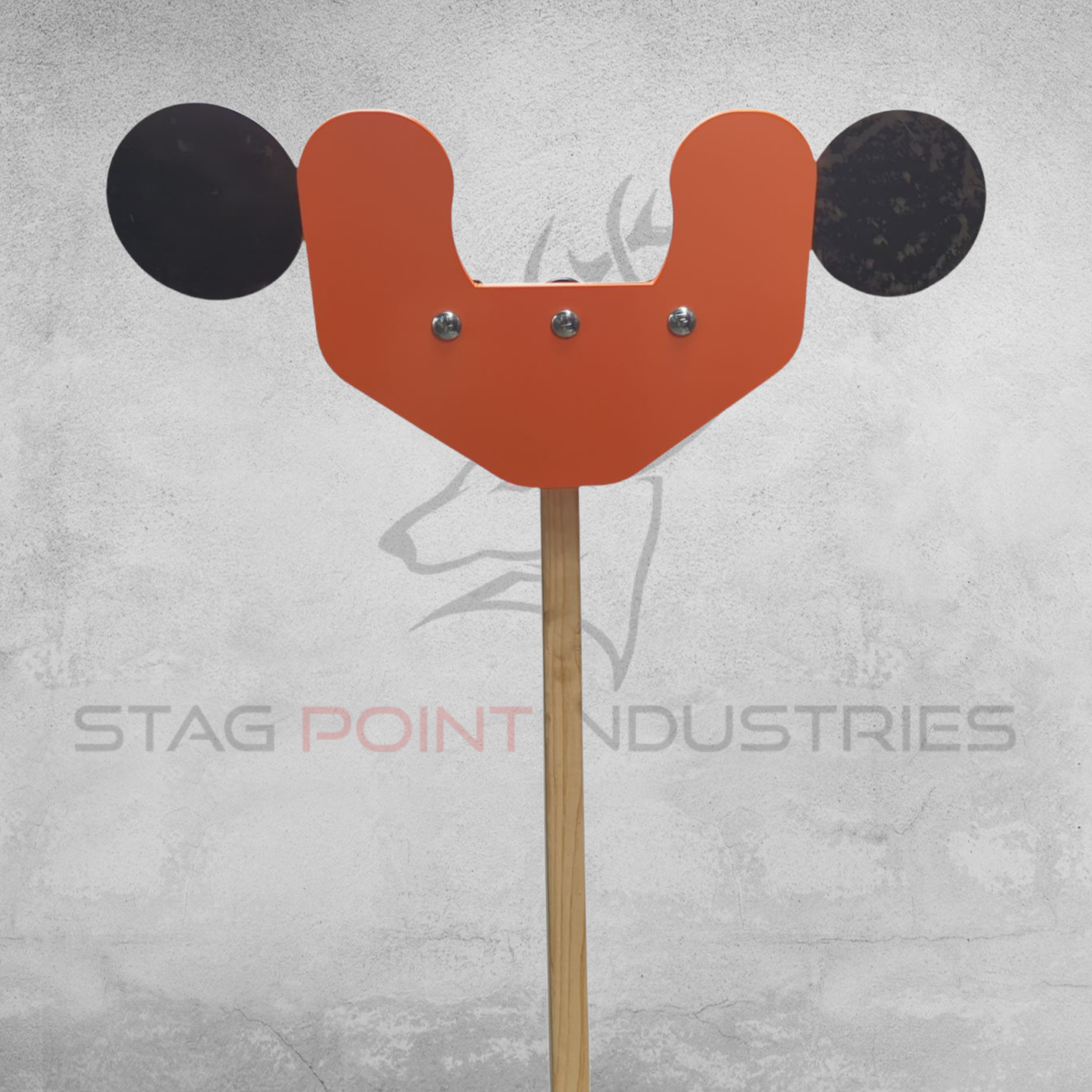

✅ Optional: 150mm paddles – compatible but may require .22 Magnum or .17 HMR for reliable actuation
❌ Not Recommended: 50mm paddles – undersized for this system’s scale

⚠️ Performance Tips

• 150mm paddles may not flip consistently with .22LR due to limited energy

• For best results:
  • Use 6mm AR450 or 6mm mild steel 100mm paddles for .22LR
  • Use 6mm AR450 100mm or 150mm paddles for .22 Magnum or .17 HMR

⚠️ Paddle Compatibility Notice

This system requires paddles with the lock-in feature, designed for the DT-Series Duelling Trees and Duel-Master System.

• ✅ Compatible: DT-Series lock-in flip paddles (DT-Alpha, DT-Cadet, DT-Pro, etc.)

• ❌ Not Compatible: Scout Duelling Tree paddles — they lack the lock-in mechanism and will not work with this system

• 🛒 See our Gongs, Paddles & Target Plate Profiles category for compatible paddle options

Paddle Selection Tips

• Match paddle material to face plate where possible (e.g. AR450 + AR450)

• Using a stronger face plate with lighter paddles is acceptable, but the system rating defaults to the weakest component

• Example: Using 6mm mild steel paddles with this AR450 face plate = safe, but system remains rated to mild steel limits

Material Rating – 6mm AR450 Face Plate

✔ Rated for rimfire calibres: .22LR, .22 Magnum, .17 HMR
✔ Handgun use (angled only): 10m+
✔ Rimfire rifle use (angled only): 25m+
✔ Max velocity: 2,650 fps
✔ Min velocity: 700 fps
✔ Max energy: 300 ft-lbs
❌ Not suitable for centrefire rifles or high-velocity jacketed projectiles
⚠️ Subsonic rounds under 1,100 fps may not reliably flip paddles
⚠️ Rounds below 500 fps may not fragment properly, increasing ricochet risk

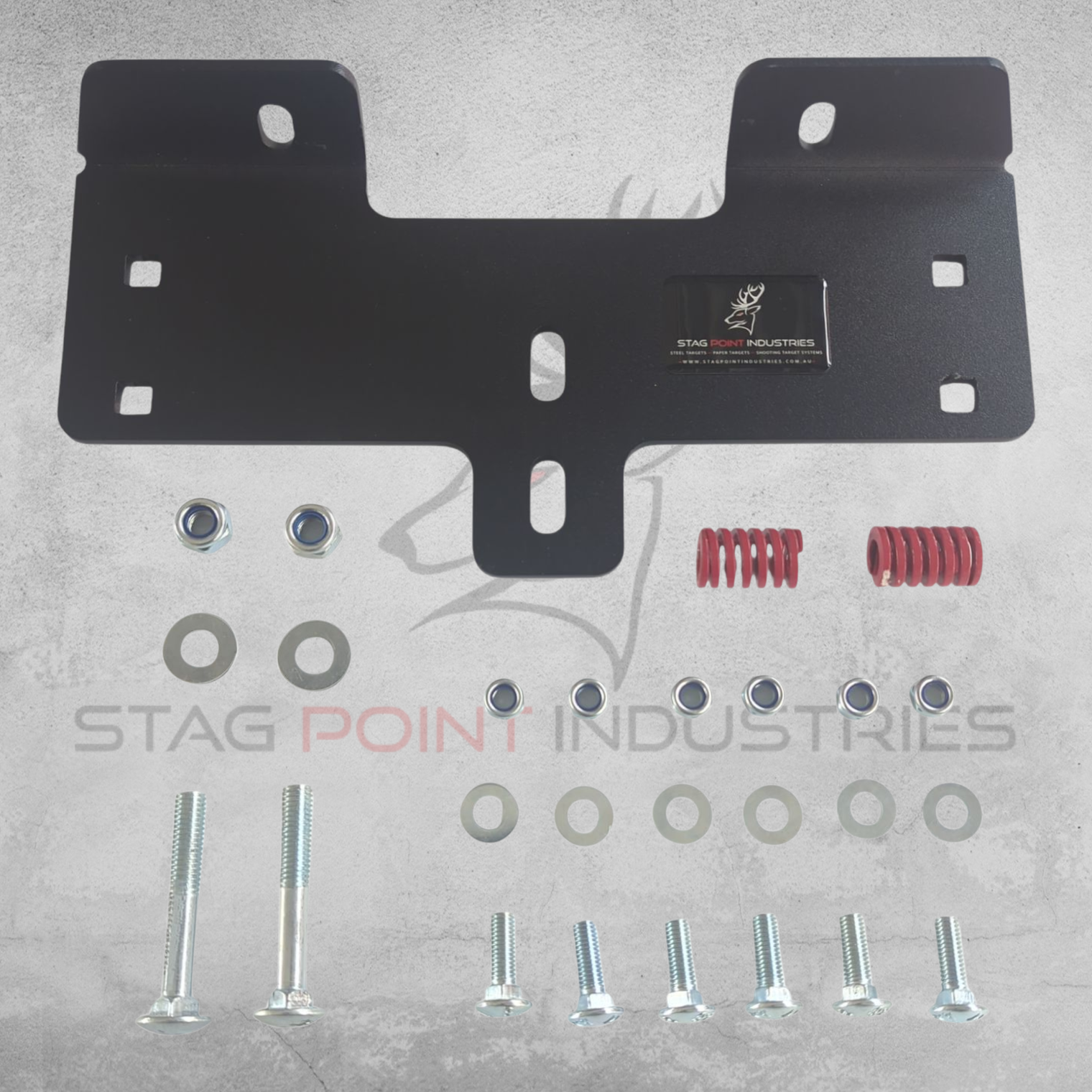

What’s Included

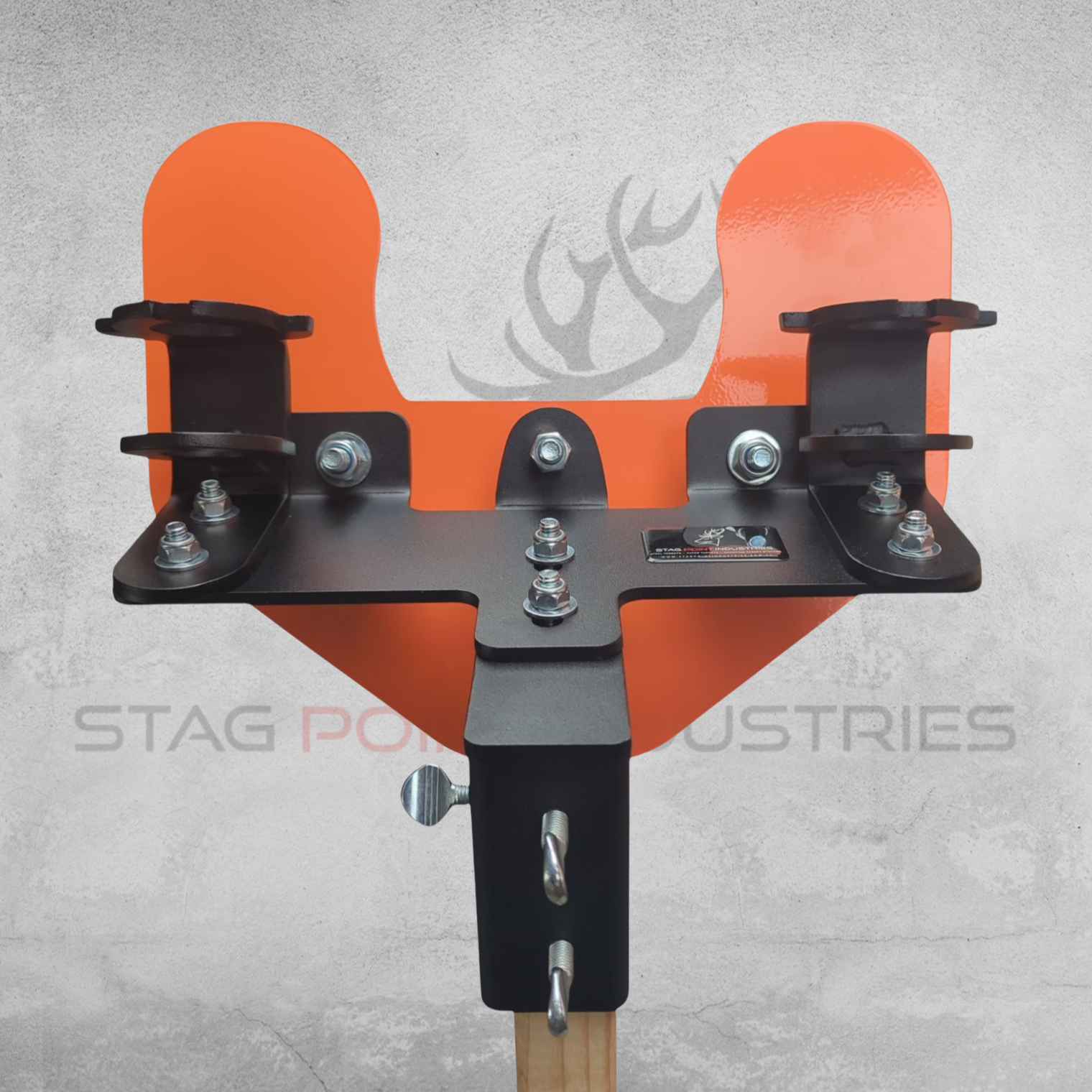

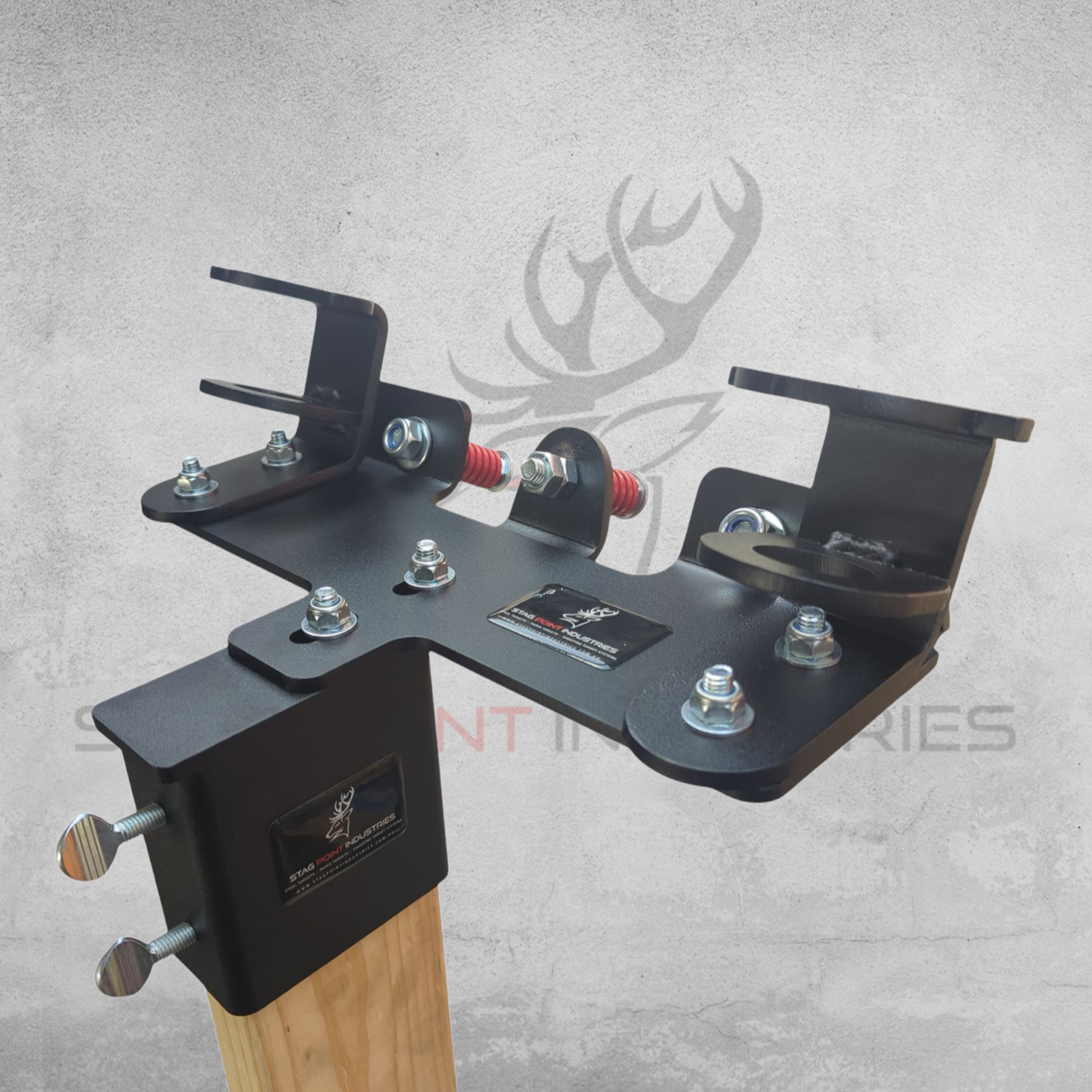

• 1 x Duel-Master Base Plate (powder-coated black)

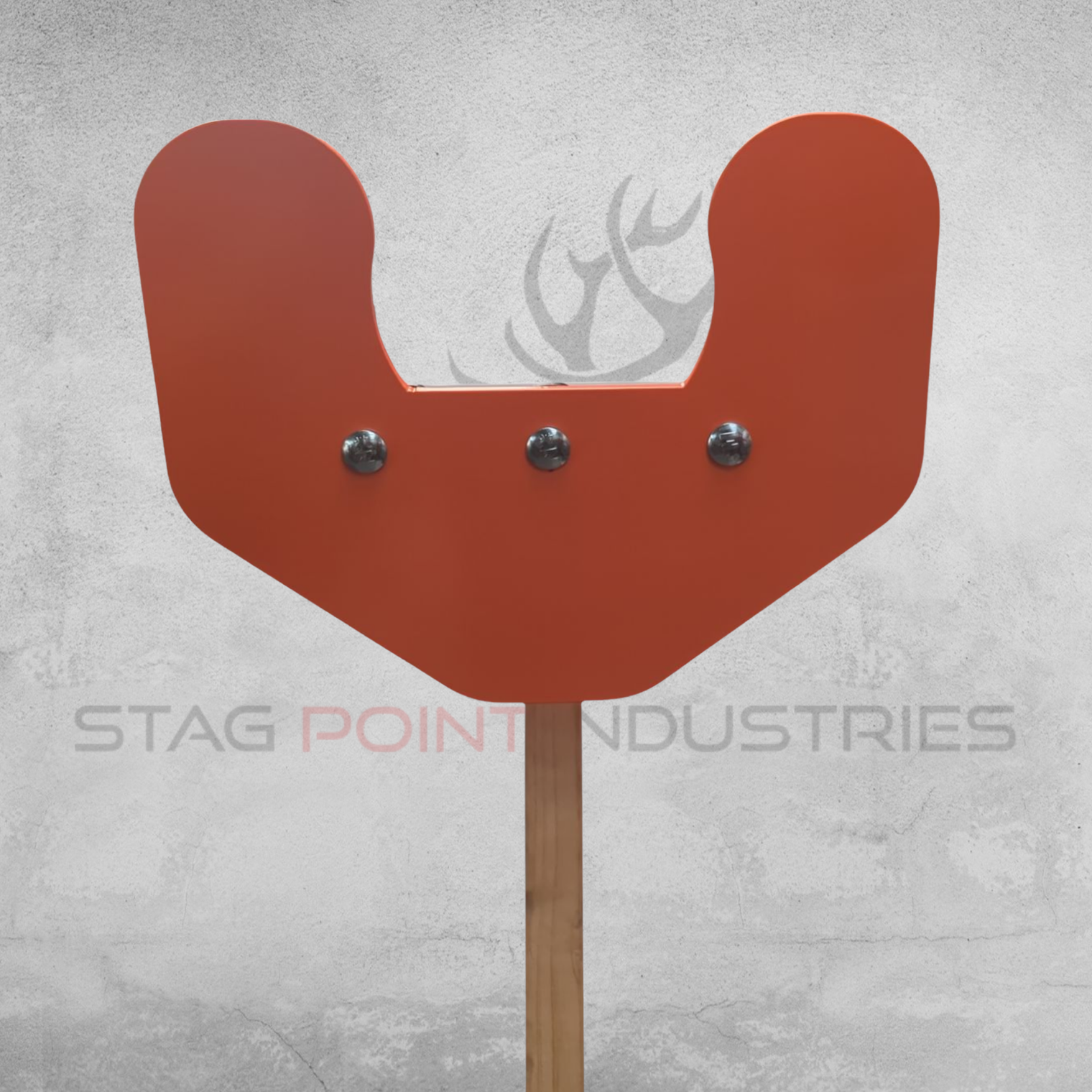

• 1 x 6mm AR450 Face Plate (raw/uncoated, love-heart profile)

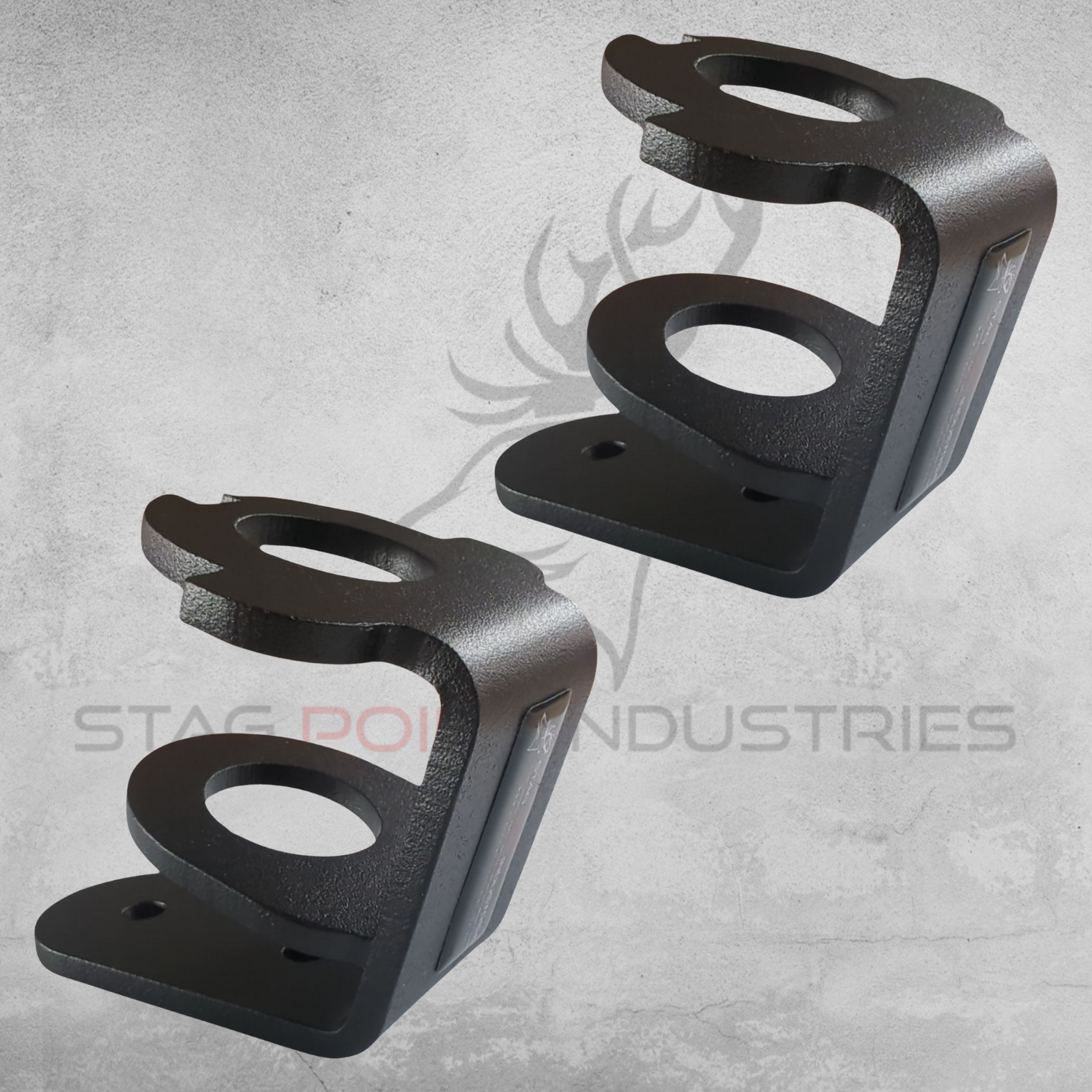

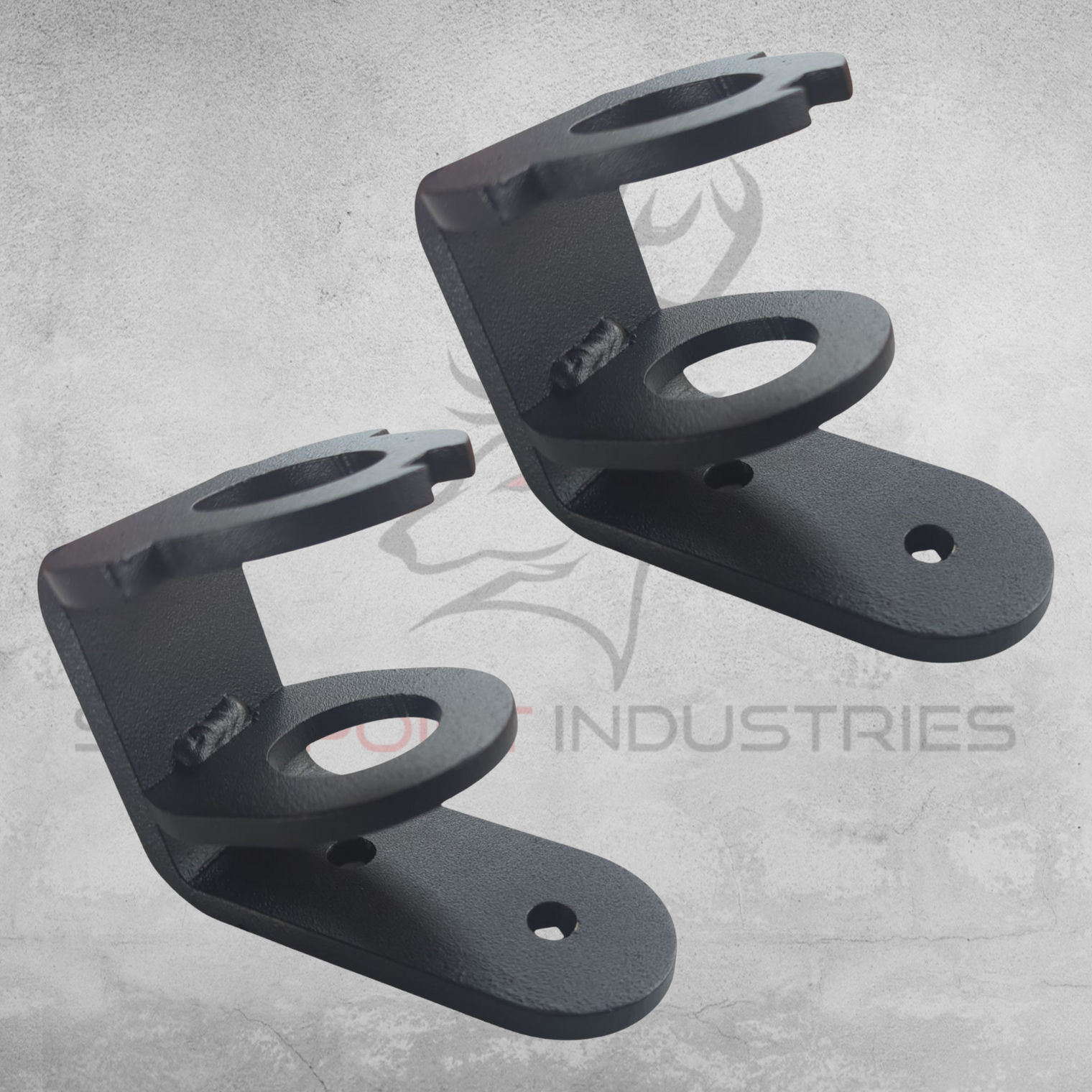

• 2 x Post Top Flip Paddle Brackets

• Zinc-Coated Hardware Pack (includes spring recoil device)

Not Included (Full Kit)

• 90x35 Post Top Target Mount (required – sold separately)

• Flip Paddles (x2 required – sold separately)

• 90x35mm Timber Post

📌 Visit our Safety, Distance & Calibre Ratings page for full usage guidelines.
📌 See our Instruction Manuals page for timber specifications and assembly guidance.
🇦🇺 Proudly manufactured in Gippsland, Victoria, Australia.

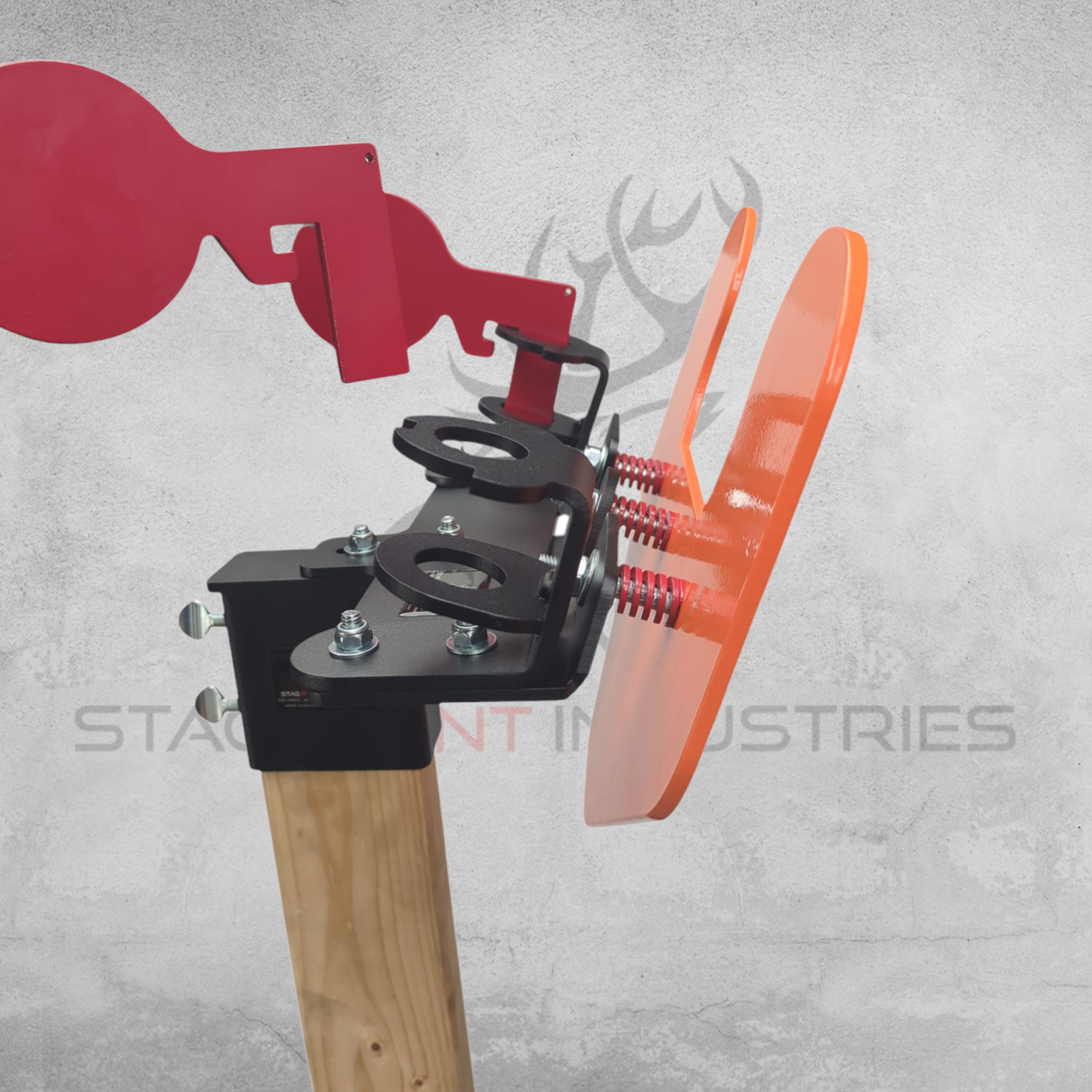

Photo Note

Images may show flip paddles and the Post Top Target Mount for demonstration purposes.
These components are not included — flip paddles and mount are sold separately.

🔄 Looking for a more modular option? See our Partial Kit listing.
