Duel-Master Final Paddle Target – Partial Kit (6mm AR450 w/Face Plate)

(For 90x35 Post Top Target Mount – Flip Paddle Brackets Not Included)
(Partial kit designed for users who already own x2 Post Top Flip Paddle Brackets and 1x Post Top Target Mount)

Overview

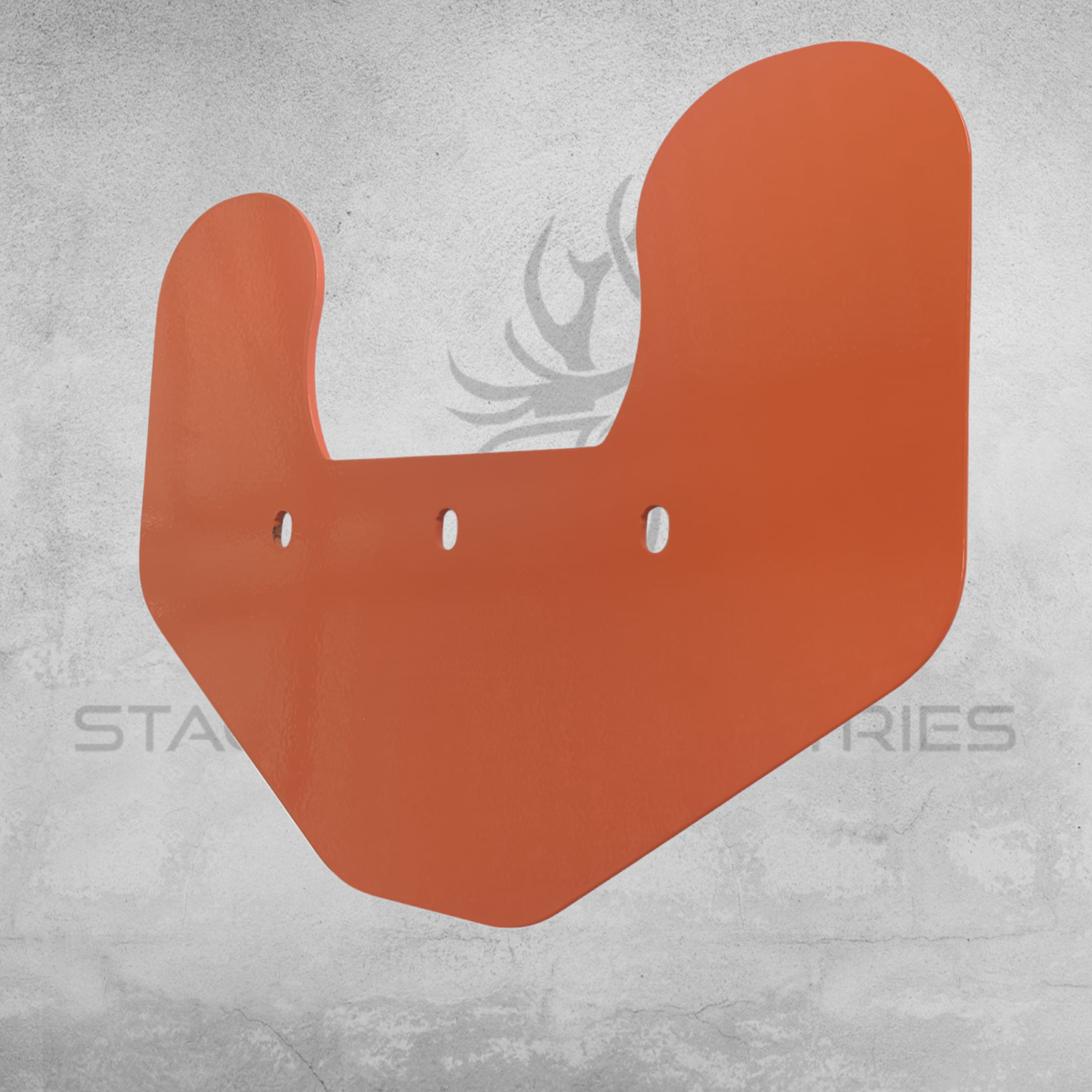

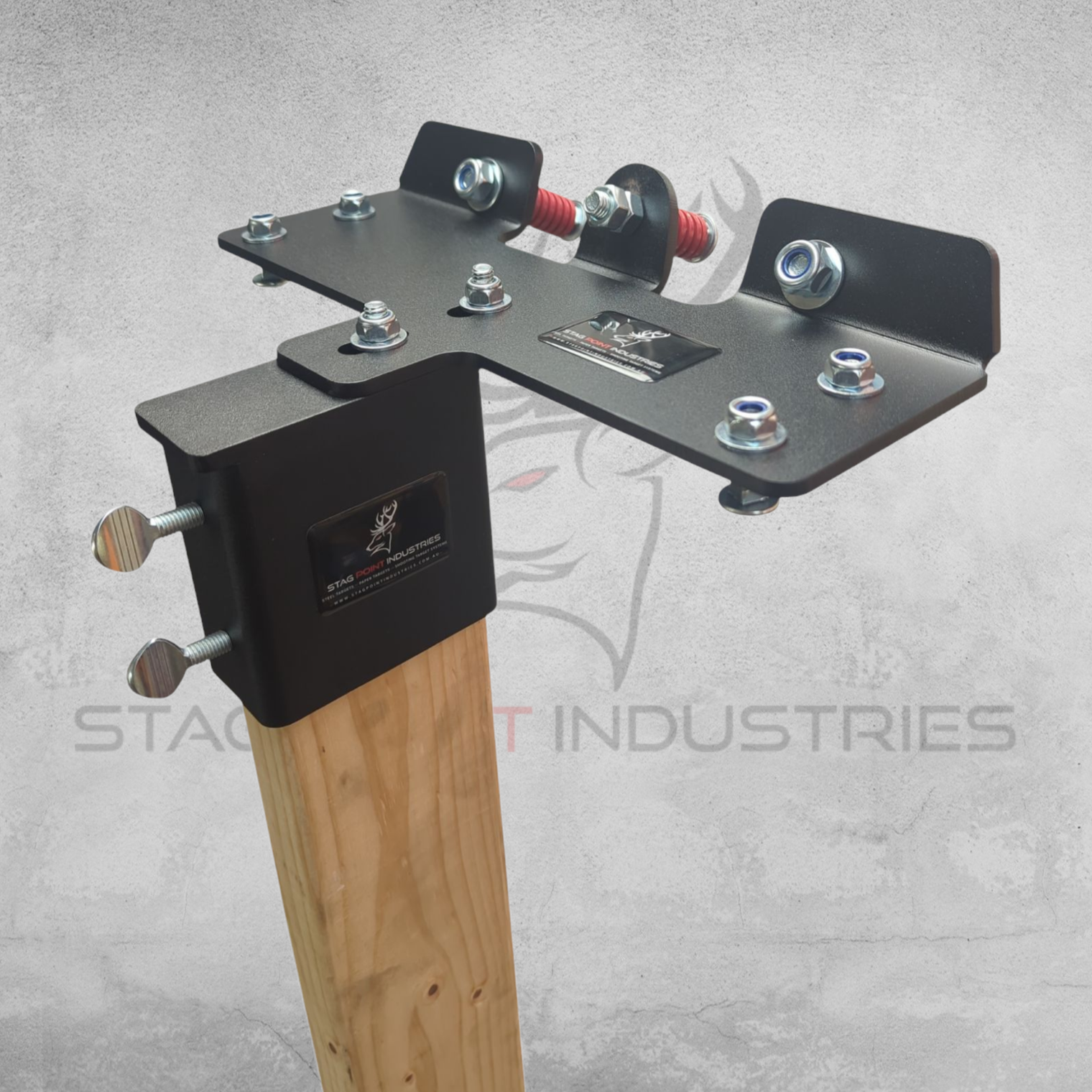

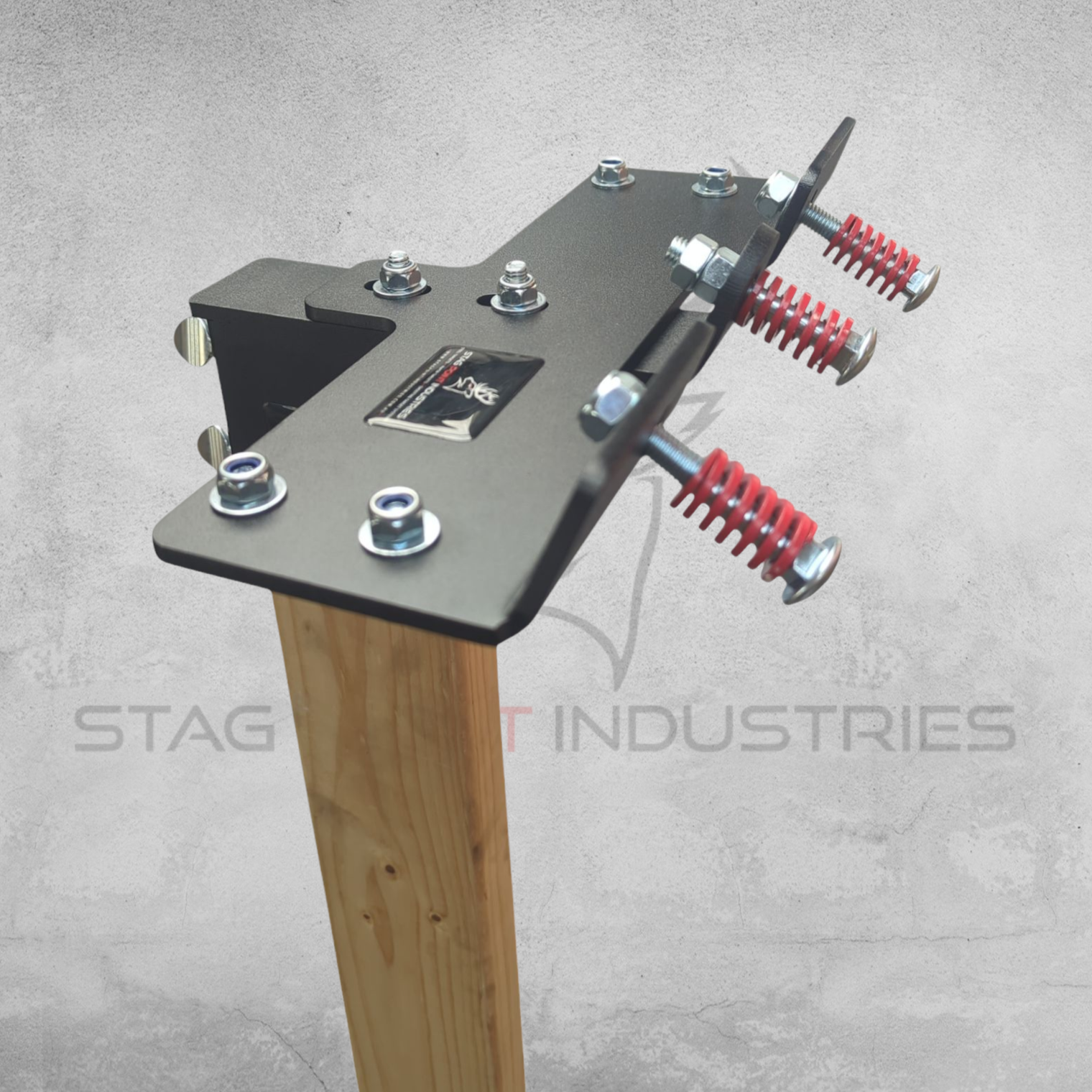

The Duel-Master Final Paddle Target – Partial Kit is a compact, duelling tree-style add-on designed to bolt directly to the 90x35 Post Top Target Mount (sold separately). It includes a black powder-coated mild steel base plate and a raw, uncoated 6mm AR450 face plate in a love-heart profile, designed to deflect splatter downward while protecting the internal bracketry.

This configuration is optimised for rimfire training, small-calibre handguns, and light shotgun use where enhanced abrasion resistance is preferred over mild steel. For users running light centrefire rifles, an 8mm AR500 version is available separately.

How It Works

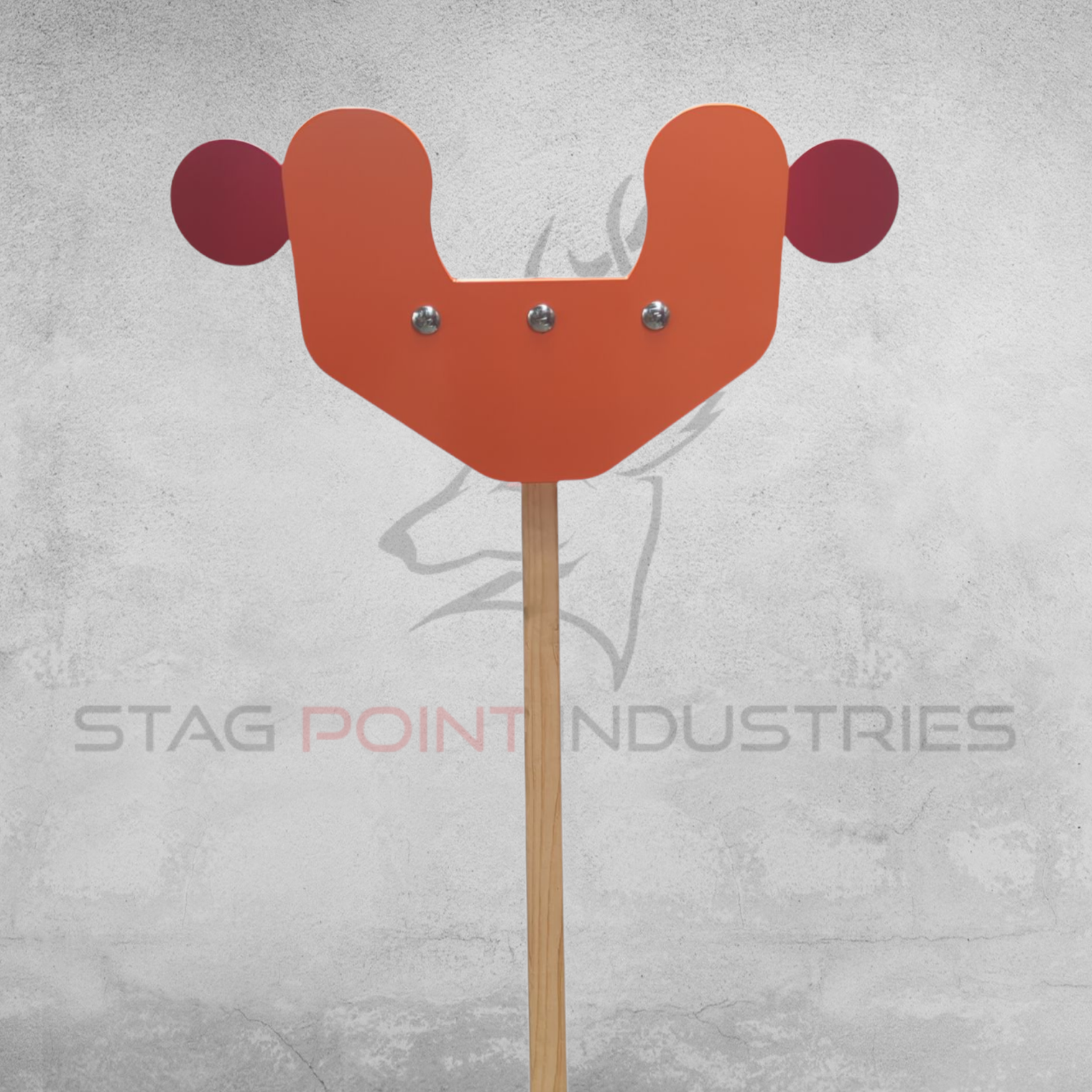

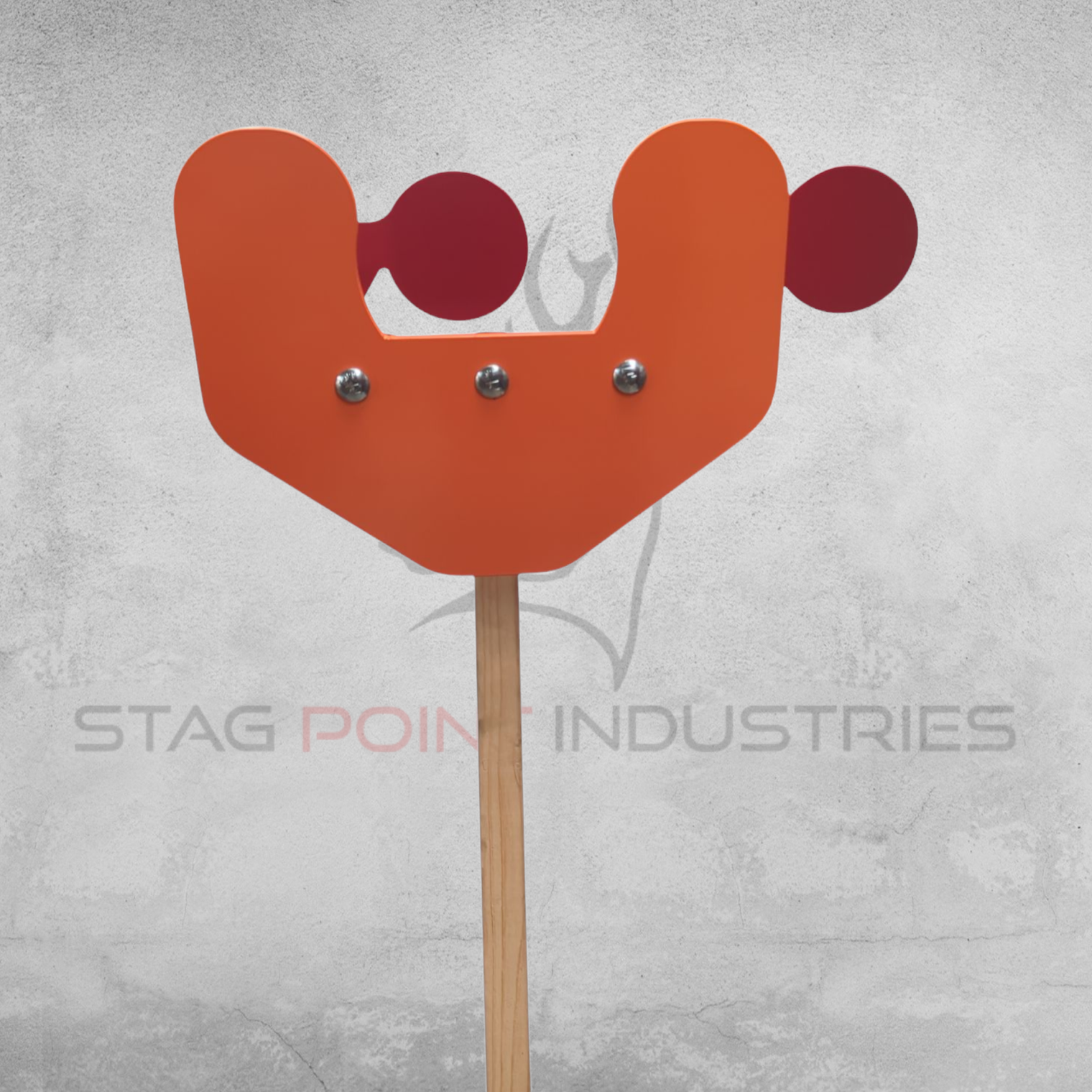

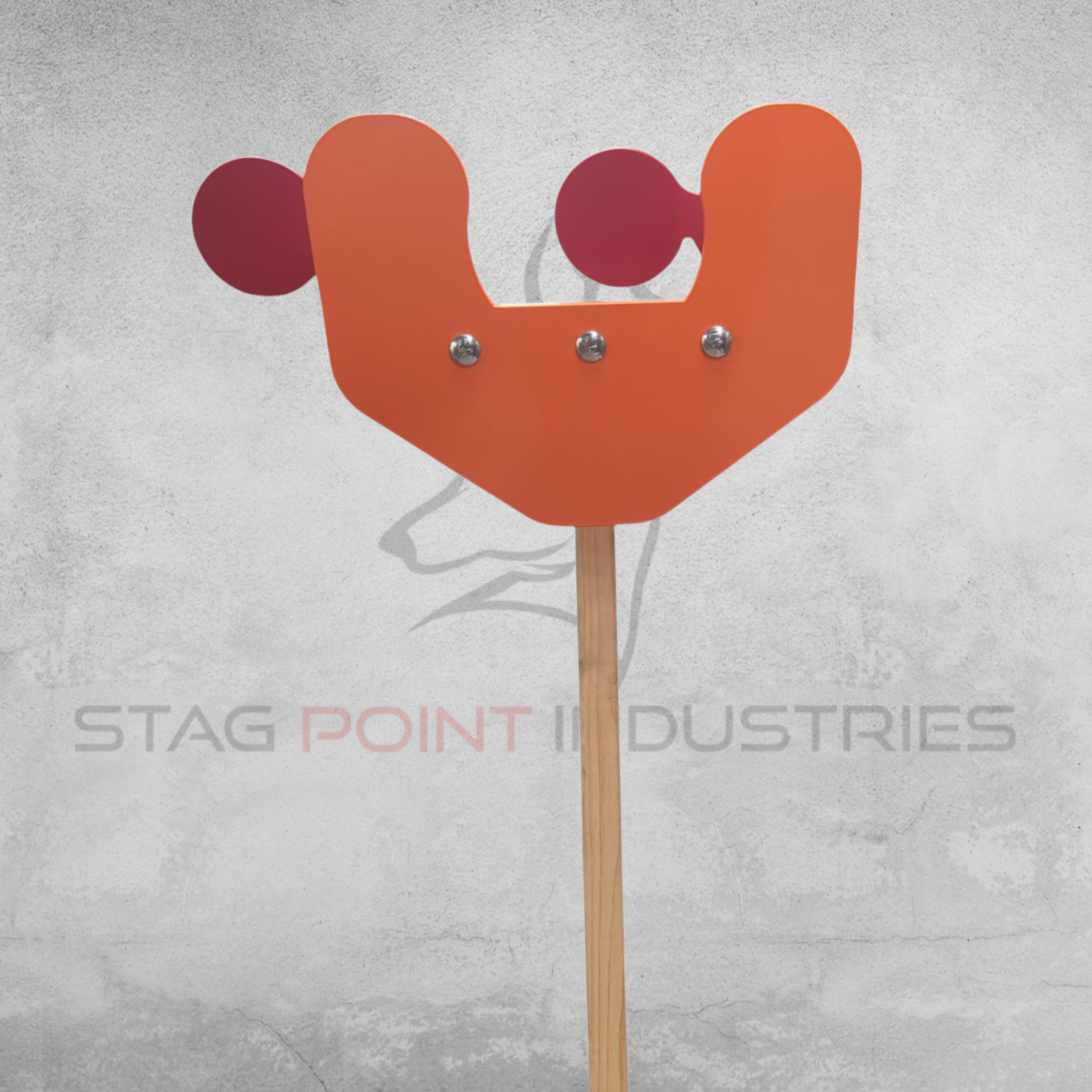

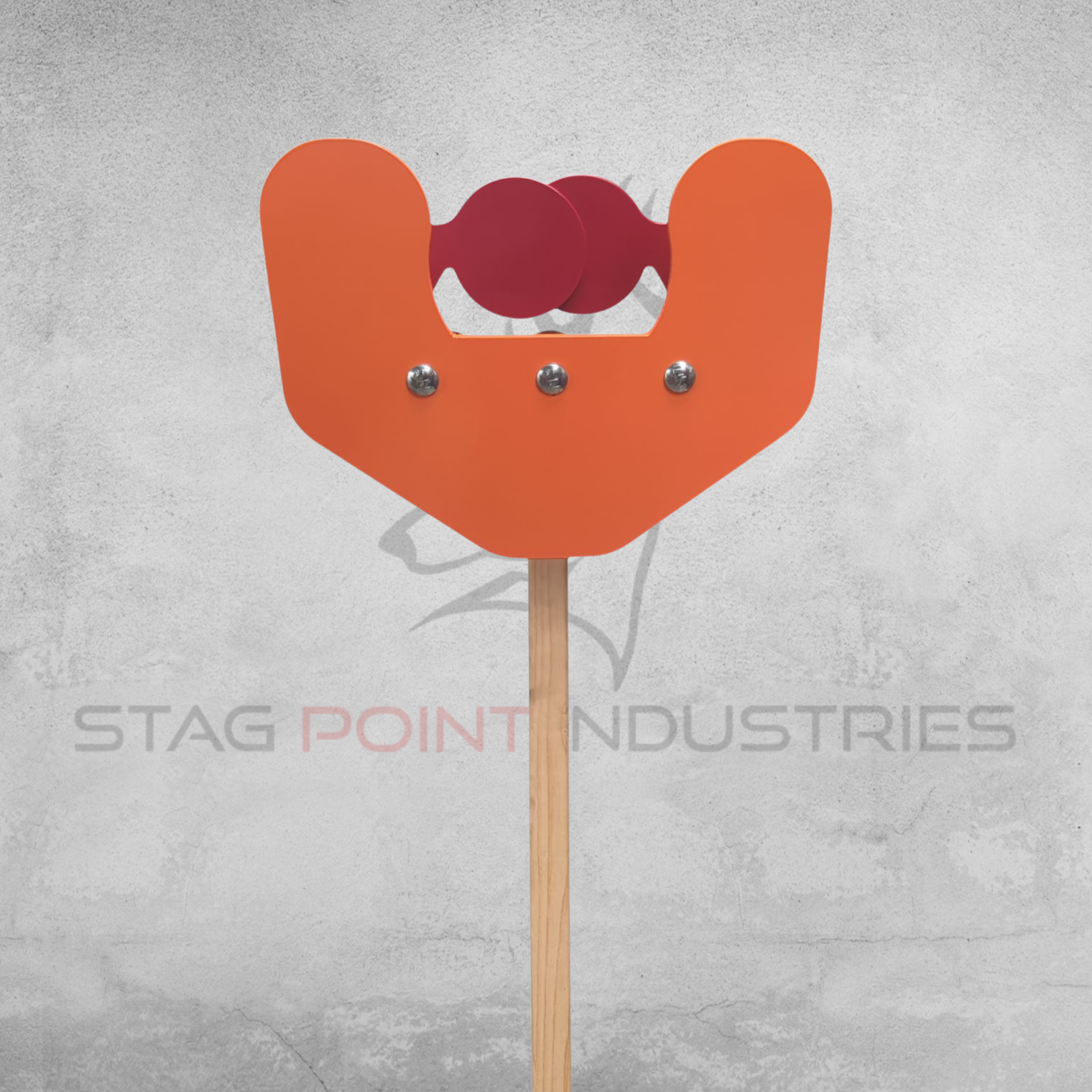

Both paddles start in the outward-facing position. In a competitive duel, Shooter A engages the left paddle while Shooter B engages the right. When hit, each paddle flips inward toward the centre. The first paddle to flip sits at the front, clearly showing who hit first and providing instant visual feedback — ideal for fast-paced, head-to-head matches.

Key Features

✔ Reactive duelling add-on – mounts x2 flip paddle brackets side-by-side (sold separately)
✔ 6mm AR450 Face Plate – raw/uncoated, abrasion-resistant, optimised for rimfire use
✔ Powder-Coated Base Plate – durable black finish with integrated spring recoil system
✔ Modular & Durable – bolt-on assembly, compatible with SPI’s modular post-mounted systems
✔ Compact Format – ideal for mobile setups, small ranges, or casual competitions

Recommended Paddle Sizes

✅ Best: 100mm paddles – ideal for reliable flipping and visual clarity with .22LR
✅ Optional: 150mm paddles – compatible but may require stronger calibres (e.g. .22 Magnum or .17 HMR) for consistent activation
❌ Not Recommended: 50mm paddles – functional but undersized and visually disproportionate

⚠️ Tip: For best results with rimfire calibres, pair this kit with 100mm paddles in either 6mm mild steel or 6mm AR450.

Paddle Compatibility Tips

• Match paddle material to face plate material where possible (e.g. AR450 paddles with AR450 face plate)

• Using a stronger face plate with lighter paddles is safe but limits the system rating to the weakest component

• Example: 8mm AR500 face plate + 6mm mild paddles = safe, but system rated to mild steel specs

🛒 Flip paddles and brackets are sold separately — see our Gongs, Paddles & Target Plate Profiles category.

Material Rating – 6mm AR450 Face Plate

✔ Rated for air/CO₂, .22LR, .22 Magnum, and .17 HMR
✔ Handgun use (angled only): 10m+
✔ Rimfire rifle use (angled only): 25m+
✔ Max velocity: 2,650 fps
✔ Min velocity: 700 fps
✔ Max energy: 300 ft-lbs
⚠️ Not suitable for centrefire calibres or high-velocity/magnum loads
⚠️ Rounds under 500 fps may fail to fragment, increasing ricochet risk

What’s Included

• 1 x Duel-Master Base Plate (black powder coat)

• 1 x 6mm AR450 Face Plate (raw/uncoated, love-heart shape)

• All required zinc-coated mounting hardware (includes spring recoil device)

Not Included (Partial Kit)

• 90x35 Post Top Target Mount (required – sold separately)

• Post Top Flip Paddle Brackets x2 (required – sold separately)

• Flip Paddles x2 (required – sold separately; 100mm recommended for rimfire use)

• 90x35mm Timber Post

📌 See our Safety, Distance & Calibre Ratings and Instruction Manuals pages for setup help and usage guidelines.
🇦🇺 Proudly manufactured in Gippsland, Victoria, Australia.

Photo Note

Images may show flip paddles and Post Top Flip Paddle Brackets for reference only.
These components are not included with this partial kit but are available separately.

🔄 A Full Kit version is available with additional components included — see related listings.
